Demonstration Devices

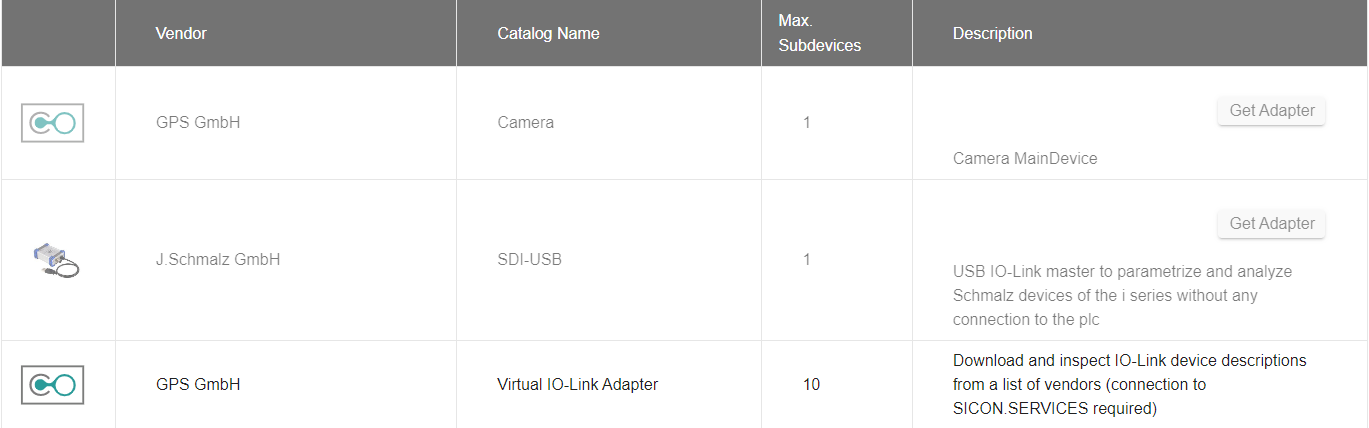

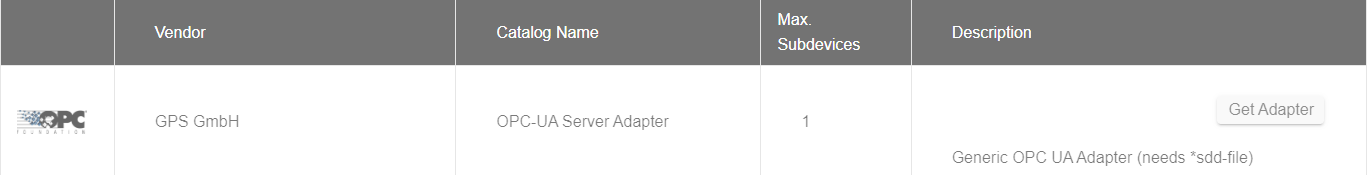

Generic Adapter

IO-LINK Master

Hersteller

Type

Firmware

DeviceInformation

ProzessData

Parameter

Events

Comment

BALLUFF

BNI PNT-538-105-Z063

03.03.2001

Anschluss (COM 1)M12x1-Buchse, 4-polig, D-codiert

Anschluss (COM 2)M12x1-Buchse, 4-polig, D-codiert

Anschluss (Spannungsversorgung IN)M12x1-Stecker, 4-polig, T-codiert

Anschluss (Spannungsversorgung OUT)M12x1-Buchse, 4-polig, T-codiert

Anschluss Steckplätze8x M12x1-Buchse, 5-polig, A-codiert

Digitale Eingänge12x PNP, Typ3

Digitale Ausgänge12x PNP

Ein-/Ausgänge konfigurierbarja

Schutzart IEC 60529IP67

Zusatzschnittstellen8x IO-Link

https://www.balluff.com/de-de/products/BNI00AZ

BELDEN

0980 ESL 399-121

2.1.1.3

Protocol

 Multiprotocol, PROFINET, EtherNet/IP

 I/O Function

 4DI 4DO 8IOL

 Bus Connection

 M12, 4-poles, D-coded

 Power Connection (System Supply)

 M12 Power, 5-poles, L-coded

 I/O Connection

 M12, 5-poles, A-coded

 I/O Type

 Digital Input/ Digital Output/IO-Link

Protection Degree / IP Rating

IP65, IP67, IP69K

https://www.belden.com/products/i-o-systems/io-link-master/0980-esl-399-121-eec

BELDEN

0980 ESL 399-121

2.1.1.1

Device Type

IO-Link Master

Protocol

Multiprotocol, PROFINET, EtherNet/IP

I/O Function

4DI 4DO 8IOL

Bus Connection

M12, 4-poles, D-coded

Power Connection (System Supply)

M12 Power, 5-poles, L-coded

I/O Connection

M12, 5-poles, A-coded

I/O Type

Digital Input/ Digital Output/IO-Link

Protection Degree / IP Rating

IP65, IP67, IP69K

https://www.belden.com/products/i-o-systems/io-link-master/0980-esl-399-121

COMTROL

IO-Link Master 8-PNIO

1.5.28

  • Network Interface10/100BASE-TX

  • EnclosureMolded Polyamide 66 (potted)

  • Ingress Protection RatingIP67

  • Installation and Grounding MethodMachine or panel mount
    Two-hole M4 or #8 screws

  • Network ProtocolsPROFINET IO, Modbus/TCP (slave)

  • Channels8 x IO-Link / Digital I/O (configurable)
    8 x Digital Input DI
    2 x Ethernet

  • Power Connectors1 x Power Input
    1 x Power Output

  • Connector typeM12, T-coded, 4-position

  • Power Connector Pin-OutPin 1 – US+ (Master electronics & sensor supply)
    Pin 2 – UA- (Actuator supply)
    Pin 3 – US- (Master electronics & sensor supply)
    Pin 4 – UA+ (Actuator supply)

  • DC Input Voltage Range20 VDC – 30 VDC

https://comtrol.com/industrial-iolink-gateway/iolink-master-8-pnio#anchor-specs

COMTROL

IO-Link Master 8-PNIO

1.4.33

  • Network Interface10/100BASE-TX

  • EnclosureMolded Polyamide 66 (potted)

  • Ingress Protection RatingIP67

  • Installation and Grounding MethodMachine or panel mount
    Two-hole M4 or #8 screws

  • Network ProtocolsPROFINET IO, Modbus/TCP (slave)

  • Channels8 x IO-Link / Digital I/O (configurable)
    8 x Digital Input DI
    2 x Ethernet

  • Power Connectors1 x Power Input
    1 x Power Output

  • Connector typeM12, T-coded, 4-position

  • Power Connector Pin-OutPin 1 – US+ (Master electronics & sensor supply)
    Pin 2 – UA- (Actuator supply)
    Pin 3 – US- (Master electronics & sensor supply)
    Pin 4 – UA+ (Actuator supply)

  • DC Input Voltage Range20 VDC – 30 VDC

https://comtrol.com/industrial-iolink-gateway/iolink-master-8-pnio#anchor-specs

PEPPERL&FUCHS

ICE3-8IOL-G65L-V1D

1.5.48

Interface type

Industrial Ethernet

Physical M12, D-coded

Protocol

PROFINET IO with media redundancy protocol (MRP) + Modbus TCP + OPC UA + MQTT Modbus max PDI: 33 times / sec OPC UA max PDI update rate: 20 times / sec MQTT max PDI update rate: 10 times / sec

Transfer rate

10/100 Mbps

Number/Type

8 x IO-Link Class A (X1 – X8) Configurable as: Max. 8 IO-Link and 8 digital inputs Max. 16 digital inputs Max. 8 digital inputs and 8 digital outputs short-circuit protected

Sensor supply

Port 1: max. 1.6 A Via L+ (pin 1) Port 3: max. 1 A via L+ (pin 1) Ports 2 and 4 – 8: max. 500 mA per port via L+ (pin 1)

https://www.pepperl-fuchs.com/germany/de/classid_4996.htm?view=productdetails&prodid=96759#functions

IFM

AL1342

3.1.70

Inputs / outputs

Total number of inputs and outputs

16; (configurable)

Number of inputs and outputs

Number of digital inputs: 16; Number of digital outputs: 8

Inputs Number of digital inputs

16; (IO-Link Port Class A: 8 x 2)

Switching level high[V]

11...30

Switching level low [V]

0...5

Digital inputs protected against short circuits

yes

Outputs

Number of digital outputs

8; (IO-Link Port Class A: 8 x 1)

Max. current load per output [mA]

300 Short-circuit proof yes

Interfaces

Communication interface

Ethernet; IO-Link Ethernet –

Internet of Things Transmission standard

10Base-T; 100Base-TX

Transmission rate 10; 100

Protocol

MQTT JSON

Factory settings

IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label

Note on interfaces

Secure protocol: HTTPS

https://www.ifm.com/de/de/product/AL1342#/

IFM

AL1330

2.3.23

Inputs / outputs

Total number of inputs and outputs

8; (configurable)

Number of inputs and outputs

Number of digital inputs: 8; Number of digital outputs: 4

Inputs

Number of digital inputs

8; (IO-Link Port Class A: 4 x 2)

Switching level high [V]

11...30

Switching level low [V]

0...5

Digital inputs protected against short circuits

yes

Outputs

Number of digital outputs

4; (IO-Link Port Class A: 4 x 1)

Max. current load per output [mA]

300

Short-circuit proof

yes

Interfaces

Communication interface

Ethernet; IO-Link

Ethernet - EtherCAT

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

Protocol

EtherCAT

Factory settings

MAC address: see type label

Note on interfaces

AoE (ADS over EtherCAT) CoE (CANopen over EtherCAT) EoE (Ethernet over EtherCAT)

Ethernet - Internet of Things

Transmission standard

10Base-T; 100Base-TX

Transmission rate 10; 100

Protocol

MQTT JSON

Factory settings

IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label

Note on interfaces

Secure protocol: HTTPS

https://www.ifm.com/de/de/product/AL1330#/

IFM

AL1202

1.1.38

Inputs / outputs

Total number of inputs and outputs

12; (configurable)

Number of inputs and outputs Number of digital inputs:

12;

Number of digital outputs: 8

Inputs

Number of digital inputs

12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1)

Switching level high [V]

11...30

Switching level low [V]

0...5 Digital inputs protected against short circuits yes Outputs Number of digital outputs 8; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 1) Max. current load per output [mA] 300 Short-circuit proof yes Interfaces Communication interface Ethernet; IO-Link Ethernet - PROFINET Transmission standard 10Base-T; 100Base-TX Transmission rate 10; 100 Protocol PROFINET Factory settings IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label Note on interfaces CC-C (Conformance Class C) (IRT-Switch) Netload Class III SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line ring

IFM

AL1200

1.1.38

Inputs / outputs

Total number of inputs and outputs

8; (configurable)

Number of inputs and outputs

Number of digital inputs:

8;

Number of digital outputs:

4

Inputs

Number of digital inputs

8; (IO-Link Port Class A: 4 x 2)

Switching level high [V]

11...30

Switching level low [V] 0...5

Digital inputs protected against short circuits

yes

Outputs

Number of digital outputs

4; (IO-Link Port Class A: 4 x 1)

Max. current load per output [mA]

300

Short-circuit proof

yes

Interfaces Communication

interface Ethernet; IO-Link

Ethernet - PROFINET

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

Protocol

PROFINET

Factory settings

IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label Note on interfaces

CC-C (Conformance Class C) (IRT-Switch) Netload Class III SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line

https://www.ifm.com/de/de/product/AL1200#/

MURR-ELEKTRONIK

54505

2.1.1.12

Allgemeine Daten

Schutzart

IP67

Ausgang

Aktorversorgung

UA 24 V DC (EN 61131-2), max. 9 A

Schaltstrom je Ausgang

max. 0.5 A (PIN 4, X1...X8), kurzschluss- und überlastfest

Eingang Sensorversorgung

US 24 V DC (EN 61131-2), max. 500 mA (M12 Buchse), kurzschluss- und überlastfest

Typ

für 3-Draht Sensoren oder mechanische Schalter, PNP, IO-Link Devices

IO-Link

Specification

IO-Link Master V1.1

Port Class

4× A (port X1...X4), 4× B (port X5...X8, galvanisch getrennt, PIN 2 max. 4 A, max. 4 A pro Modul) IO-Link

8× Master

Übertragungsparameter 32 Eingangsbyte und/oder 32 Ausgangsbyte (per IO-Link port)

Betriebsarten

COM1; COM2; COM3 (automatic) Parametrierung PIN 4 Input (port X1...X8); Output (port X1...X8); IO-Link Master (port X1...X8)

https://shop.murrelektronik.de/I-O-Systeme/SOLID67/SOLID67-IOL8-30mm-M12L-5P-54505.html

MURR-ELEKTRONIK

55132

1.08

General

Protection

IP67

Output

Lamp load 10 W

Actuator supply

UA 24 V DC (EN 61131-2), max. 9 A

Switching current per output

max. 1.6 A (short-circuit and overload protected)

Input

Sensor supply US

24 V DC (EN 61131-2), max. 200 mA (M12 female)/max. 1 A (IO-Link female), short-circuit and overload protected

Type

for 3-wire sensors or mechanical switches, PNP, IO-Link Devices

IO-Link

Port Class

Class B (not galvanically separated)

IO-Link

4× Master

Transfer parameters

32 Byte (In) 32 Byte (Out) per IO-Link port

Operating modes

COM1; COM2; COM3 (automatic)

https://shop.murrelektronik.com/en/I-O-Systems/Impact67/Modules/Impact67-PN-DIO12-IOL4-IRT-7-8-5pin-55132.html

TURCK

TBEN-S2-4IOL

3.4.0.0

  • PROFINET Device, EtherNet/IP Device oder Modbus TCP Slave

  • Integrierter Ethernet-Switch

  • Unterstützt 10 Mbps / 100 Mbps

  • 2x M8, 4-pol, Ethernet-Feldbusverbindung

  • Glasfaserverstärktes Gehäuse

  • Schock- und schwingungsgeprüft

  • Vollvergossene Modulelektronik

  • Schutzart IP65/IP67/IP69K

  • 4-poliger M8 Steckverbinder zur Spannungsversorgung

  • Galvanisch isolierte Spannungsgruppen

  • Steckplätze M12, 5-polig für IO-Link Master

  • IO-Link Protokoll 1.1

  • FLC/ARGEE programmierbar

https://www.turck.de/de/product/0000003100008dc50003003a

TURCK

TBEN-L5-8IOL

3.3.0.0

  • PROFINET Device, EtherNet/IP Device oder Modbus TCP Slave

  • Integrierter Ethernet-Switch

  • Unterstützt 10 Mbps / 100 Mbps

  • 2x M12, 4-pol, D-kodiert, Ethernet-Feldbusverbindung

  • PROFINET S2 Systemredundanz

  • Glasfaserverstärktes Gehäuse

  • Schock- und schwingungsgeprüft

  • Vollvergossene Modulelektronik

  • Schutzart IP65/IP67/IP69K

  • 5-polige 7/8’’ Steckverbinder zur Spannungsversorgung

  • Galvanisch isolierte Spannungsgruppen

  • Steckplätze M12, 5-polig für IO-Link Master

  • IO-Link Master Port Class A und Port Class B

  • IO-Link Protokoll 1.1

  • FLC/ARGEE programmierbar

https://www.turck.de/de/product/0000001600019e750008003a

TURCK

FEN20-4IOL

1.1.0.0

  • EtherNet/IP-Slave

  • Modbus TCP-Slave

  • PROFINET-Slave

  • 2 RJ45-Ports für den Ethernet-Anschluss

  • Integrierter Ethernet Switch

  • 10/100 Mbit/s

  • C/Q als digitale Ein- oder Ausgänge konfigurierbar

  • V1+1…V1+4 konfigurierbar als ein, umschaltbar oder aus

  • Schutzart IP20

https://www.turck.de/de/product/00000015000175b1000b003a

ZIMMER

SCM

YES

YES

YES
