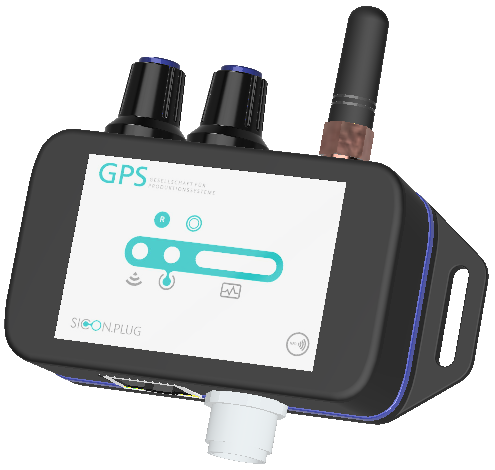

SICON.PLUG AI SIM [30-04-0420]

BASIC INFORMATION
SKU	30-04-0420
NAME	SICON.PLUG AI SIM
Device ID	100420

Central data analysis gateway for Simulation purposes

The SICON.PLUG ANALYTICS SIM is ideally suited to simulate the pressure profiles within a vacuum system. It is used for training purposes, training or to better understand a vacuum system.

The PLUG is connected to your preferred network via a free app and sends the collected data either via WLAN or ETHERNET to the data broker, which can be located locally in the network or on a cloud.

The integrated acceleration sensor also registers movements, such as shocks or vibrations, and provides feedback on the use of the PLUG. Shock warnings or vibrations are thus detected and reported to the user.

FEATURES
Vacuum values can be precisely adjusted using the two rotary controls	A Vacuum cycle is generated automatically every 10s
Replay function visualize what has happened in your system in the last 30s	Data logging Pre-processing and storage Logging of warnings
Runtime recording Operating hours	Crash-Detection Capturing blows Threshold monitoring
Analytics function Component counter Pick / Dropped ratio Block mode	User support Reduction of energy consumption Lifetime extension Optimization of handling
Update and upgrade ability Re-loadable functions Access to Parameter database	IOT interface to Data hubs Cumulocity SICON.OS

PRODUCT FEATURE
MECHANICAL DATA
Material	Housing: PC UL 94 V0, seal: TPE
Dimensions	90mm x 43mm x 26mm with tabs for M3 screws
Weight	300g
ELECTRICAL DATA
Operating Voltage	24V DC +/- 20%
Current Consumption	100mA
Signal Contact	Potential-free contact for warnings up to 30V / max. max. 1 A
Protection Class	III according to DIN EN 61140
Pollution Protection	Yes
COMMUNICATION INTERFACES
Care and pt. Contact	M12 / 5-pin connector A-coded
Ethernet	RJ45 socket 10Mbit / s
WLAN	2.4 GHZ with antenna
Operator Interface	3x LED and 1x button
INTEGRATED SENSOR
Pressure Sensor	2x knobs for the simulation of Vacuum values
Acceleration Sensor	3-axis acceleration and rotation rate sensor +/- 2g
ENVIRONMENTAL CONDITIONS
Ambient Temperature	0 ° C to + 50 ° C
Degree Of Protection	IP 40
APPROVALS / EXAMS
EMV	CE /EMV/ RoHs

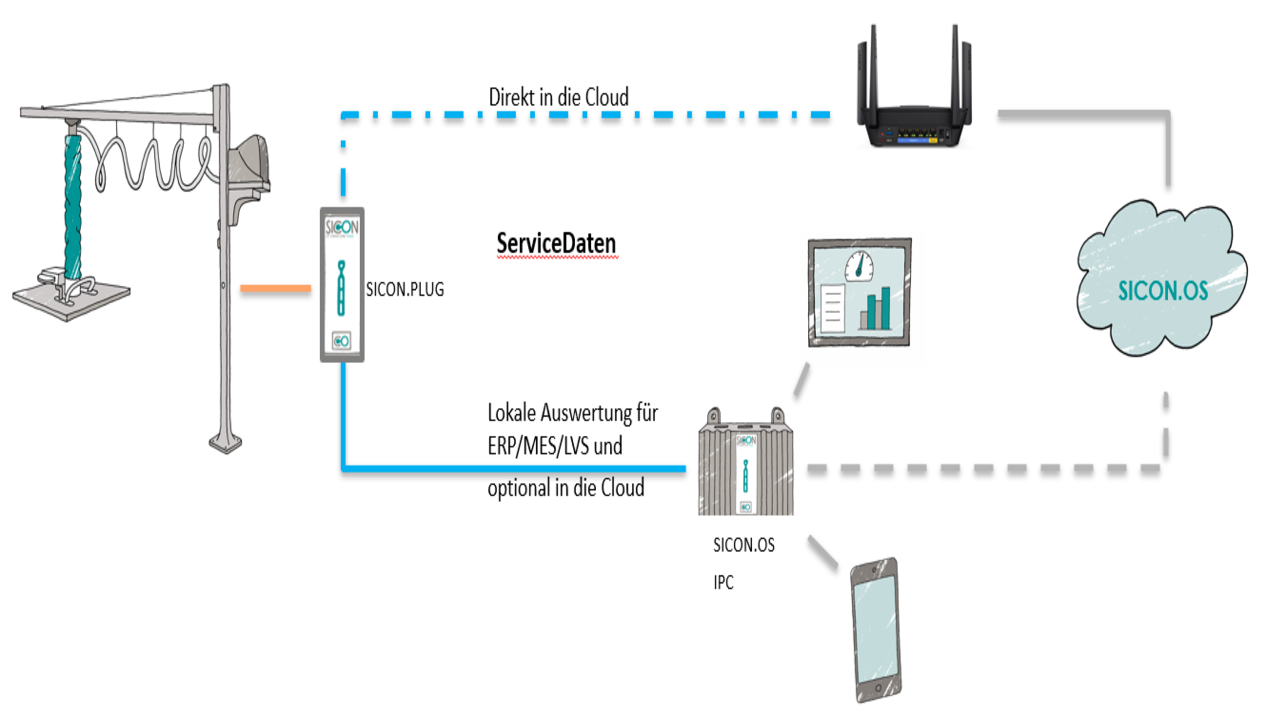

EXAMPLE OF USE

IMAGE GALLERY

ORDER DATA
30-04-0420	SICON.PLUG AI SIM
EQUIPMENTS
50-01-0121	Setup app for installation (free of charge) for Android and iOS
40-01-0050	IPC Computing Edge solution (Hardware)
10-04-0120	SICON.OS Central management for up to 20 SICON.PLUGs

DOCUMENTS
Instruction manual	Operating instruction manual
IO-Link Device Description (IODD) file	Visit our DEVICE.FINDER
SICON Device Description (SDD) file	Visit our DEVICE.FINDER
