SICON.PLUG AI VAC [30-04-0430]
BASIC INFORMATION | |
|---|---|
SKU | 30-04-0430 |
NAME | SICON.PLUG AI VAC |

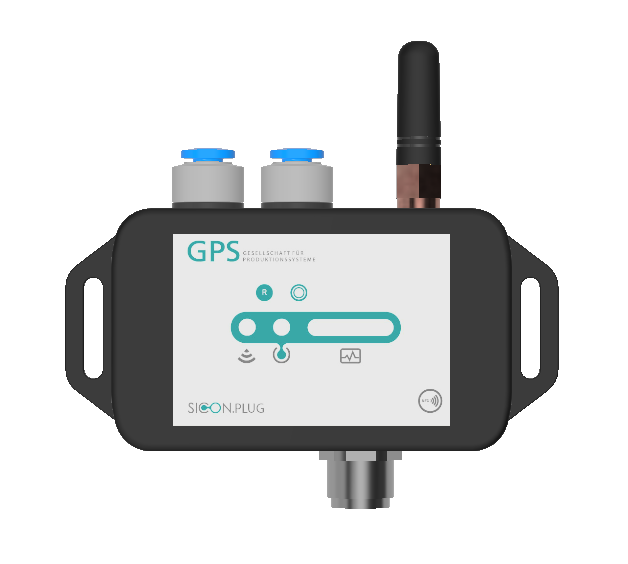

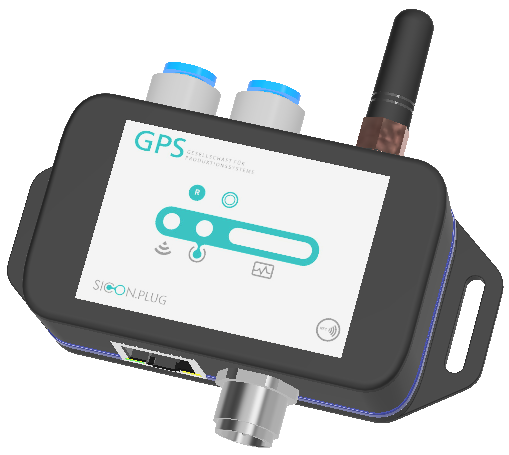

Central data analysis gateway for Vacuum effects
The SICON.PLUG Analytics VAC is a retrofit system for existing vacuum systems. With the integrated vacuum sensors, pressure profiles can be analyzed and compared.
The SICON.PLUG is set up via an APP. To do this, the user must provide information about his vacuum system and the associated data hub, which can be local or in a cloud.
The system automatically sets up during the first 30 minutes and continues to learn during production.
It monitors the state of the system, warns the user of a possible failure and calculates the right time for maintenance in advance.
The operating hours of the system are recorded and the energy consumption is calculated.
An integrated AI function records usage behavior and offers tips on how to improve or optimize the system's lifetime.
The SICON.PLUG detects shocks and impacts on the entire system and informs the user about them. In this way, incorrect operation or failure due to worn parts can be prevented.
The system has a display unit with 3 LEDs, on which the status is visually displayed, in addition, warnings and errors can be reported to a higher-level system via two potential-free contacts.
FEATURES | |
|---|---|
|
|
|
|
|
|
|
|
|
|
PRODUCT FEATURE | |
|---|---|
MECHANICAL DATA | |
Material | Housing: PC UL 94 V0, seal: TPE |
Dimensions | 90mm x 43mm x 26mm with tabs for M3 screws |
Weight | 300g |
ELECTRICAL DATA | |
Operating Voltage | 24V DC +/- 20% |
Current Consumption | 100mA |
Signal Contact | Potential-free contact for warnings up to 30V / max. 750mA |
Protection Class | III according to DIN EN 61140 |
Pollution Protection | Yes |
COMMUNICATION INTERFACES | |
Care and pt. Contact | M12 / 5-pin connector A-coded |
Ethernet | RJ45 socket 10Mbit / s |
WLAN | 2.4 GHZ with antenna |
Pressure Connection | 2x plug connection for hose outside diameter 6 mm |
Operator Interface | 3x LED and 1x button |
INTEGRATED SENSOR | |
Pressure Sensor | 2 x vacuum sensors with measuring range down to -1000mbar / max. Overpressure 2 bar |
Acceleration Sensor | 3-axis acceleration and rotation rate sensor +/- 2g |
ENVIRONMENTAL CONDITIONS | |
Ambient Temperature | 0 ° C to + 50 ° C |
Degree Of Protection | IP 40 |
APPROVALS / EXAMS | |
EMV | CE /EMV/ RoHs |
EXAMPLE OF USE |
|---|
 |
IMAGE GALLARY |
|---|
 |
ORDER DATA | |
|---|---|
30-04-0430 | SICON.PLUG AI VAC |
EQUIPMENTS | |
50-01-0121 | Setup app for installation (free of charge) for Android and iOS |
40-01-0050 | IPC Computing Edge solution (Hardware) |
10-04-0120 | SICON.OS Central management for up to 20 SICON.PLUGs |
