SICON.PLUG AI PickBeam 2 [30-04-0660]

SKU

30-04-0660

Product Name

SICON.PLUG AI PickBeam 2

Device ID

100490

Manufacturer

GPS GmbH

Product type

Industrial IIoT Devices (Industrial Internet of Things)

Area of application

Monitoring and control in industrial environments

Version

1.0 (Status: September 2025)

Smart Operation

• Continuous monitoring of environmental data with secure MQTT transmission.

• LED light lines for clear visual signalling (e.g., red for alarms, green for confirmation).

• Integrated buttons to trigger events such as acknowledgments or actions.

Intuitive Web Interface

• Easy access via browser: http://[device IP].

• Clear dashboards to view sensor values in real time.

• Direct LED line control and system log access.

Built-in Troubleshooting Support

• No Wi-Fi connection → Quickly reconfigure via Bluetooth.

• LED lines inactive → Check or replace the power supply.

• Incorrect sensor data → Calibrate easily using the app.

• System LED red → Restart device or contact support.

Maximize your productivity:

• Save time and resources while significantly reducing the error rate.

• Increase the efficiency of your warehouse.

• Improve customer satisfaction.

Electrical data

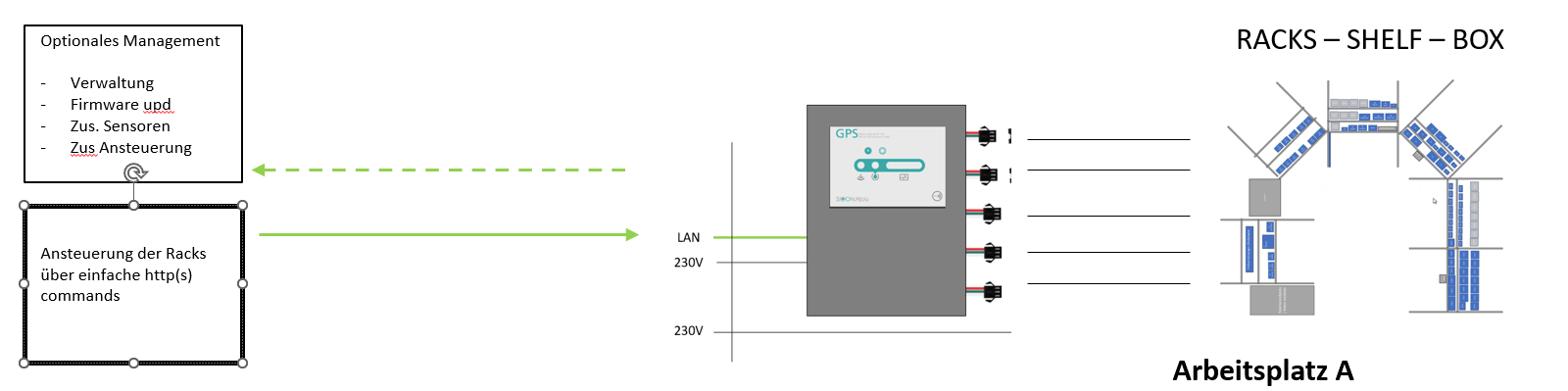

The control unit for controlling up to 5 rows of picks and up to 15m each (max 1000 LEDs).

Power supply

5V DC

Light strips

RGB light strips

Current consumption

Up to 15A (maximum)

Power consumption

Dependent on connected components (e.g. LED lines); recommended external power supply for extensions

Communication Interfaces

WLAN

2.4 GHZ (IEEE 802.11 b/g/n)

LAN

10GBe

Protocols

Support for Wi-Fi, MQTT for IIoT communication, HTTP/HTTPS for web interfaces.

Security

WPA3 encryption, TLS 1.3 for secure connections, device authentication via certificates.

Operator Interface

---

Sensors and Measurements

Internal sensor

BME680 (Bosch Sensortec)

• Measured variables: Temperature (-40 °C to +85 °C), relative humidity (0 % to 100 %), air pressure (300 hPa to 1100 hPa), gas resistance (VOC detection).

• Accuracy: temperature ±1 °C, humidity ±3 %, pressure ±1 hPa.

External sensors

Up to 2 additional sensors for adhesive devices (temperature and humidity).

• Interface: I2C or analogue, compatible with common sensors such as DHT22 or similar.

Update rate

Configurable, by default every 10 seconds.

Lighting and displays

RGB LED lines

5 independent lines

• Maximum length per line: 5 m (standard), extendable to 10 m with special external power supply.

• LED density: 144 LEDs/m (e.g. WS2812B-compatible).

• Colour space: RGB, 24-bit colour depth.

• Control: Via PWM or digital protocols (e.g. NeoPixel).

Status-LEDs

• Status LED: Multi-coloured (RGB) for operating statuses (e.g. green: OK, red: error).

• System LED: For system status (e.g. flashing during boot, permanent during operation).

Push-button with LED

Up to 4 buttons, each with integrated LED for status display (e.g. on/off, configuration).

Mechanical conditions

Housing

Suitable for industrial use, IP54 protection (dust and splash-proof).

Dimensions

100 mm x 60 mm x 30 mm (estimated, depending on final design).

Environmental conditions

Operating temperature

-20 °C bis +60 °C.

Storage temperature

-40 °C bis +85 °C.

Montage

DIN rail or wall mounting.

Interfaces and extensions

Inputs/outputs

• 5 x RGB LED outputs.

• 2 x sensor inputs (temperature/humidity).

• 4 x push-button inputs with LED outputs.

Extension

Special power supply for LED extension to 10 m per line.

Firmware

Update-capable via OTA (Over-The-Air) via WLAN.

Certifications and conformity

EMV

EN 55032/55035

Security

EN 62368-1

RoHS

Konform

More

CE, FCC (depending on market)
