OEE Calculations

OEE Dashboard Calculations:

Number of cycles = Last Cycle Number - Start Cycle Number

Device Status can be -

[No Device Status, Off, Running, Idle, Changeover, Maintenance, Defect/Fault]

Ideal Production Amount = Sum of all different status time duration
Actual Production Time = Total Running Time Duration
Availabillity Losses = Sum of [No Device Status, Off, Idle, Defect/Fault] status time duration
No planned production time = Sum of [Maintenance, Changeover] status time duration

=============

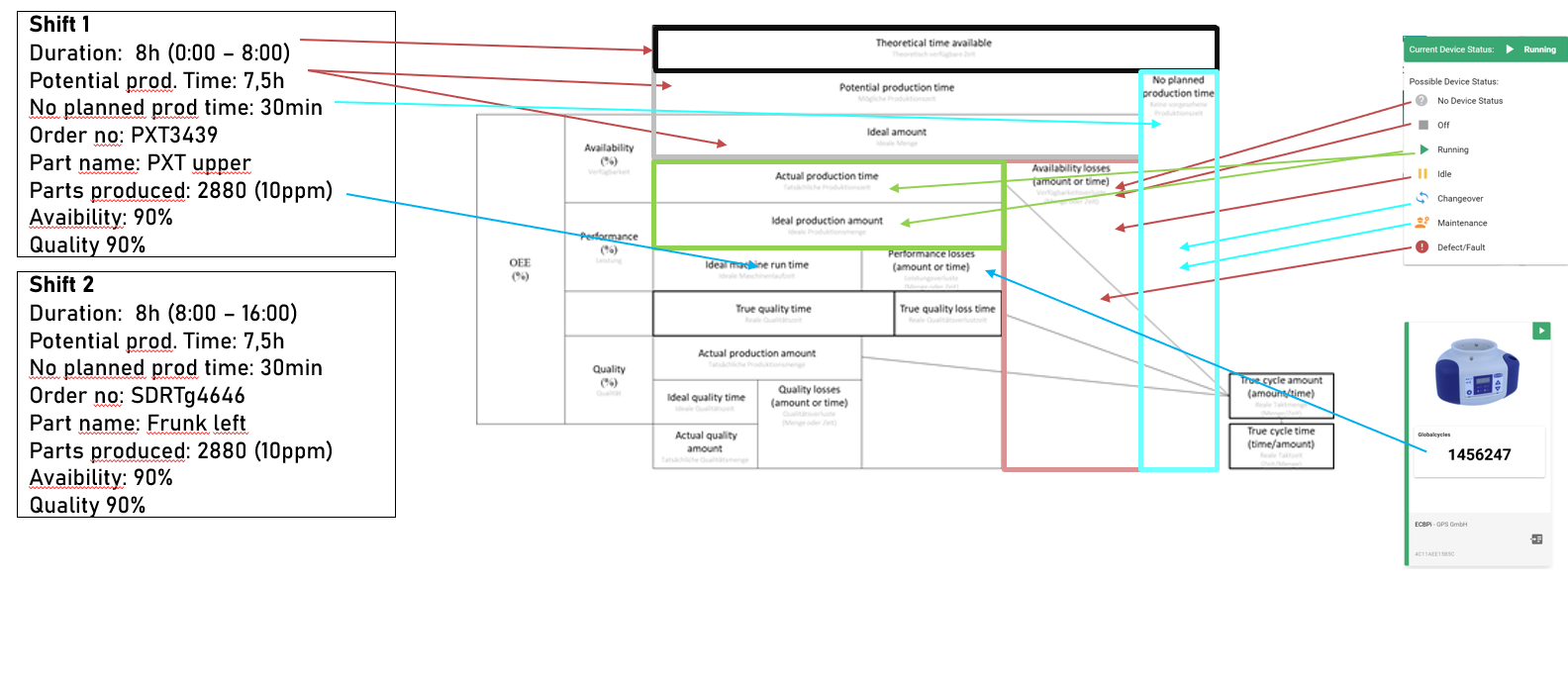

To calculate Availability, Quality and Performance -

Availability % = (Potential Production Time) / (Theoretical Production Time) * 100

For Example -

Potential Production Time = 20 hours
Theoretical Production Time = 24 hours
Availability % = 20/24 * 100 = 83.33 %

Quality % = (Good Parts Produced) / (Total Parts Produced) * 100

For Example -

Good Parts Produced = 2880
Total Parts Produced = 3000
Quality % = 2880/3000 * 100 = 96%

Performance % = (Total Parts Produced) / (Expected Parts Production) * 100

For Example -

Total Parts Produced = 3000 parts
Expected Parts Production = 3500 parts
Performance % = 3000/3500 * 100 = 85.71%

OEE % = Availability * Quality * Performance

For example

OEE % = (0.83 * 0.96 * 0.85 ) * 100 = 67.72 %

===============================================

Flux Query to get the total time duration of different device status

HTML

import "strings"

statuses = ["running", "off", "idle", "changeover", "maintenance", "defect/fault"]

data = from(bucket: "First-test-bucket")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) => r["_measurement"] == "4C11AEE15B5C-events")
  |> filter(fn: (r) => r["_field"] == "message")
  |> filter(fn: (r) => strings.containsStr(v: r._value, substr: "running")
      or strings.containsStr(v: r._value, substr: "off")
      or strings.containsStr(v: r._value, substr: "idle")
      or strings.containsStr(v: r._value, substr: "changeover")
      or strings.containsStr(v: r._value, substr: "maintenance")
      or strings.containsStr(v: r._value, substr: "defect/fault"))
  |> map(fn: (r) => ({r with _status: if strings.containsStr(v: r._value, substr: "running") then "running"
                        else if strings.containsStr(v: r._value, substr: "off") then "off"
                        else if strings.containsStr(v: r._value, substr: "idle") then "idle"
                        else if strings.containsStr(v: r._value, substr: "changeover") then "changeover"
                        else if strings.containsStr(v: r._value, substr: "maintenance") then "maintenance"
                        else "defect/fault"}))
  |> elapsed(unit: 1s)
  |> group(columns: ["_status"])
  |> sum(column: "elapsed")
  |> map(fn: (r) => ({r with total_duration_seconds: r.elapsed}))
  |> drop(columns: ["elapsed"])

data
  |> pivot(rowKey:[], columnKey:["_status"], valueColumn: "total_duration_seconds")
  |> map(fn: (r) => ({
      running: if exists r.running then r.running else 0,
      off: if exists r.off then r.off else 0,
      idle: if exists r.idle then r.idle else 0,
      changeover: if exists r.changeover then r.changeover else 0,
      maintenance: if exists r.maintenance then r.maintenance else 0,
      defect_fault: if exists r.defect_fault then r.defect_fault else 0
  }))
