Homepage

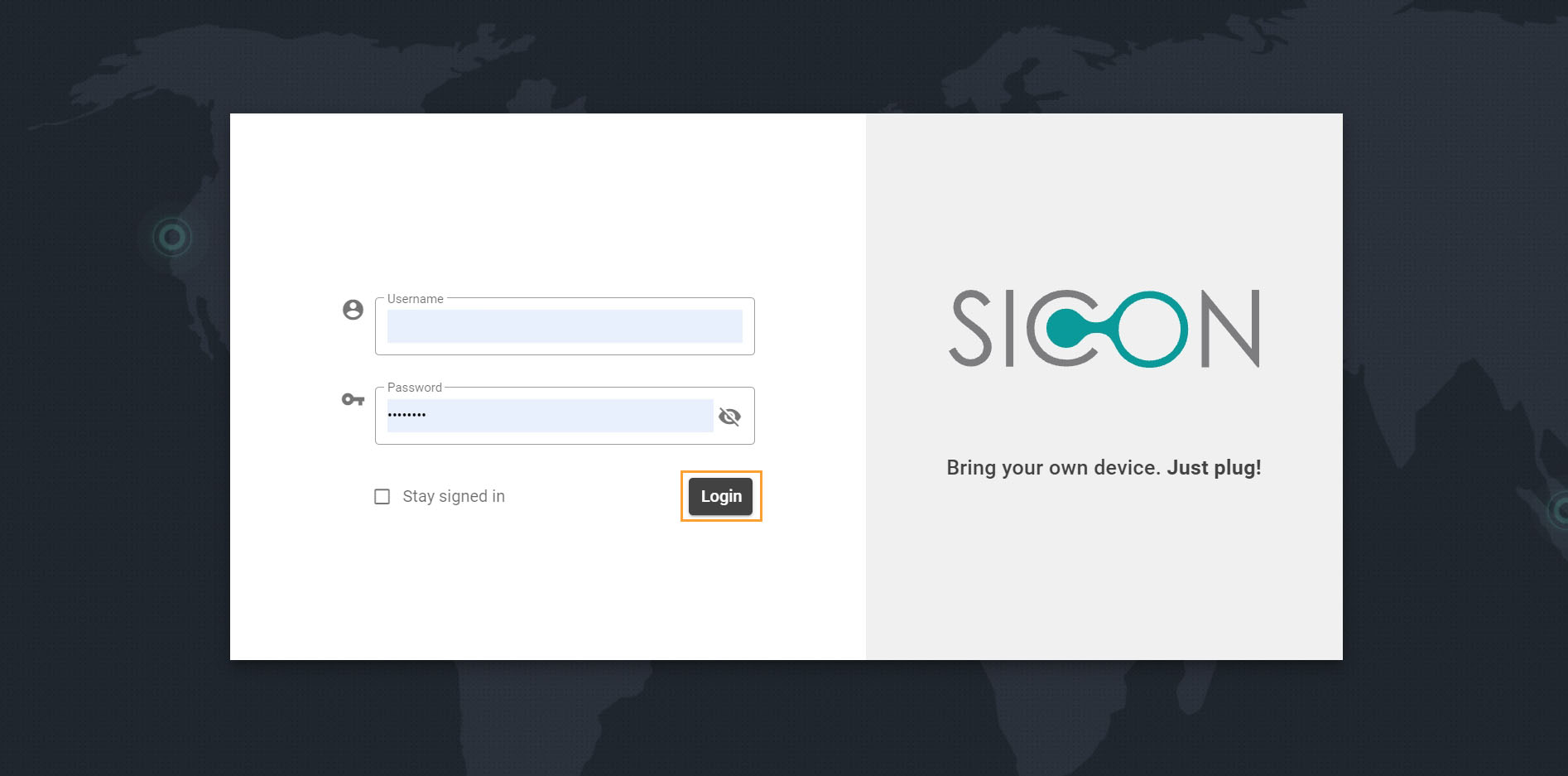

Before accessing the SICON Dashboard, first you will need to install the SICON.OS software and then Signup (for first time user) or Login (For already users) with your username & password.

If you don’t have a SICON.OS installation ready, you can follow the installation process guide to setup your own SICON.OS.

Welcome to SICON.OS Dashboard.

SICON.OS Dashboard

Here you will get the information about the Device function, Automation, Machine and Responsibility which are described below.

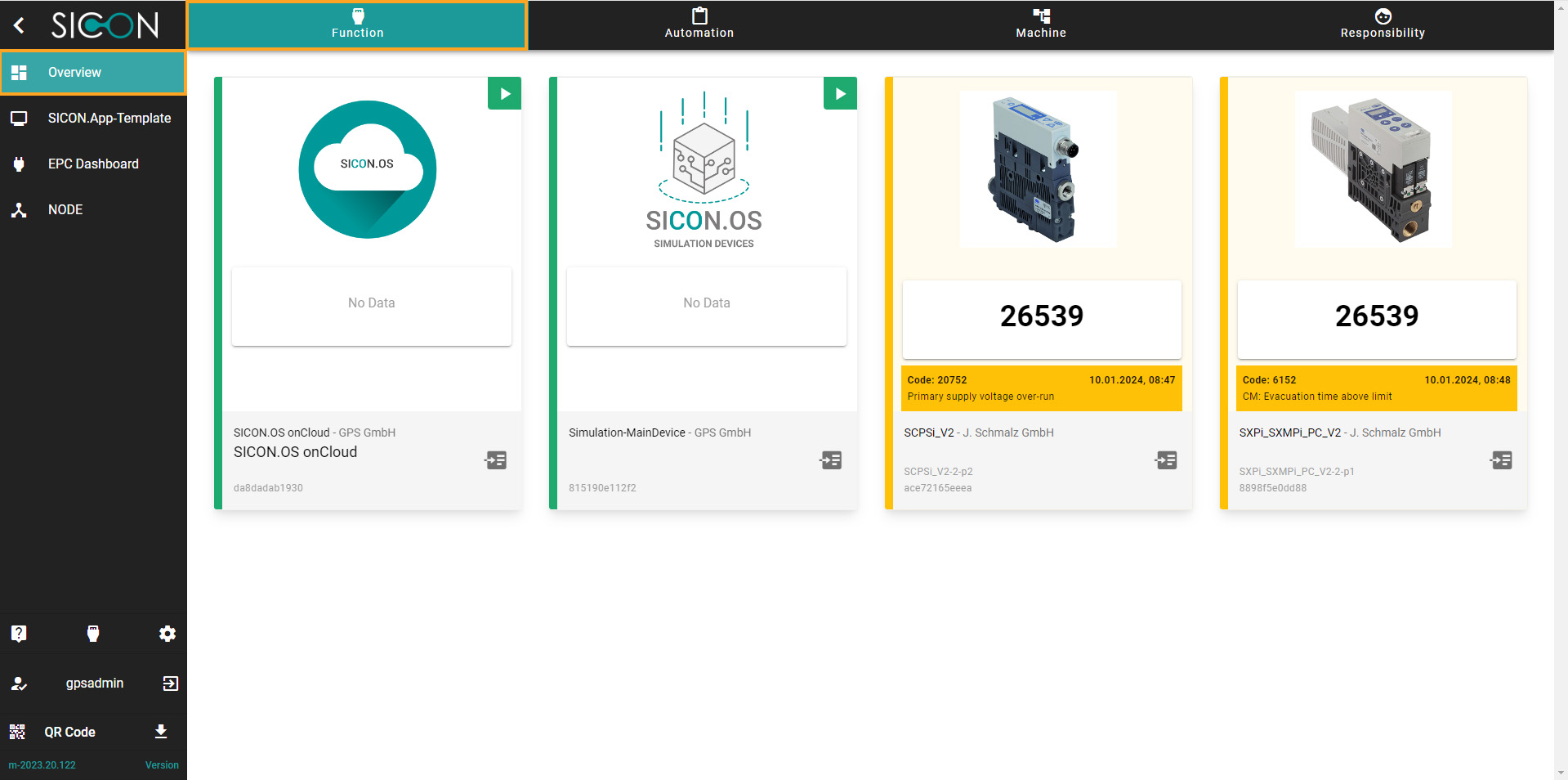

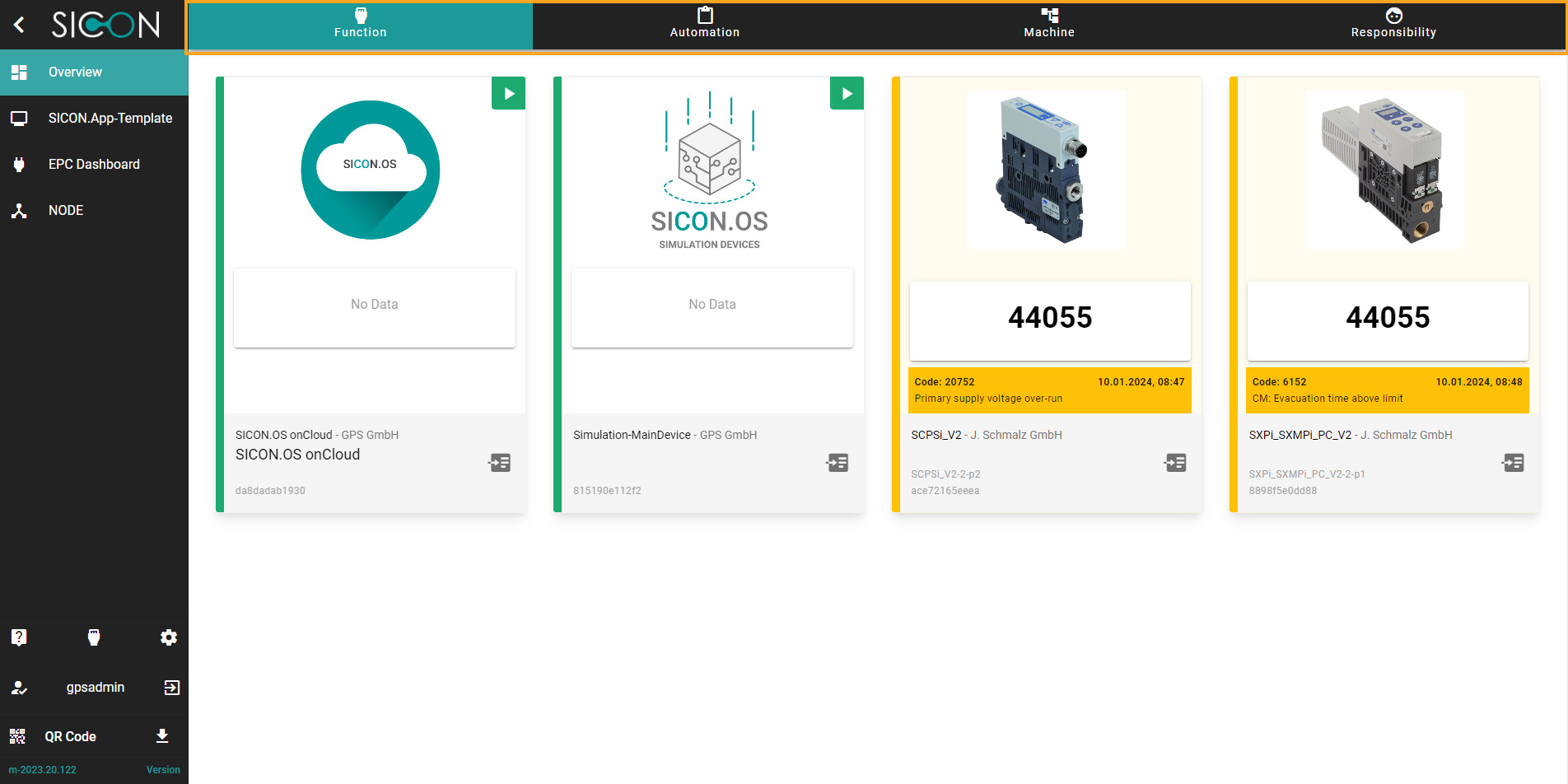

Function View

The Function menu is shown at the top:

It displays all the devices which are connected with SICON software. Hence you can access all devices without any relationship.

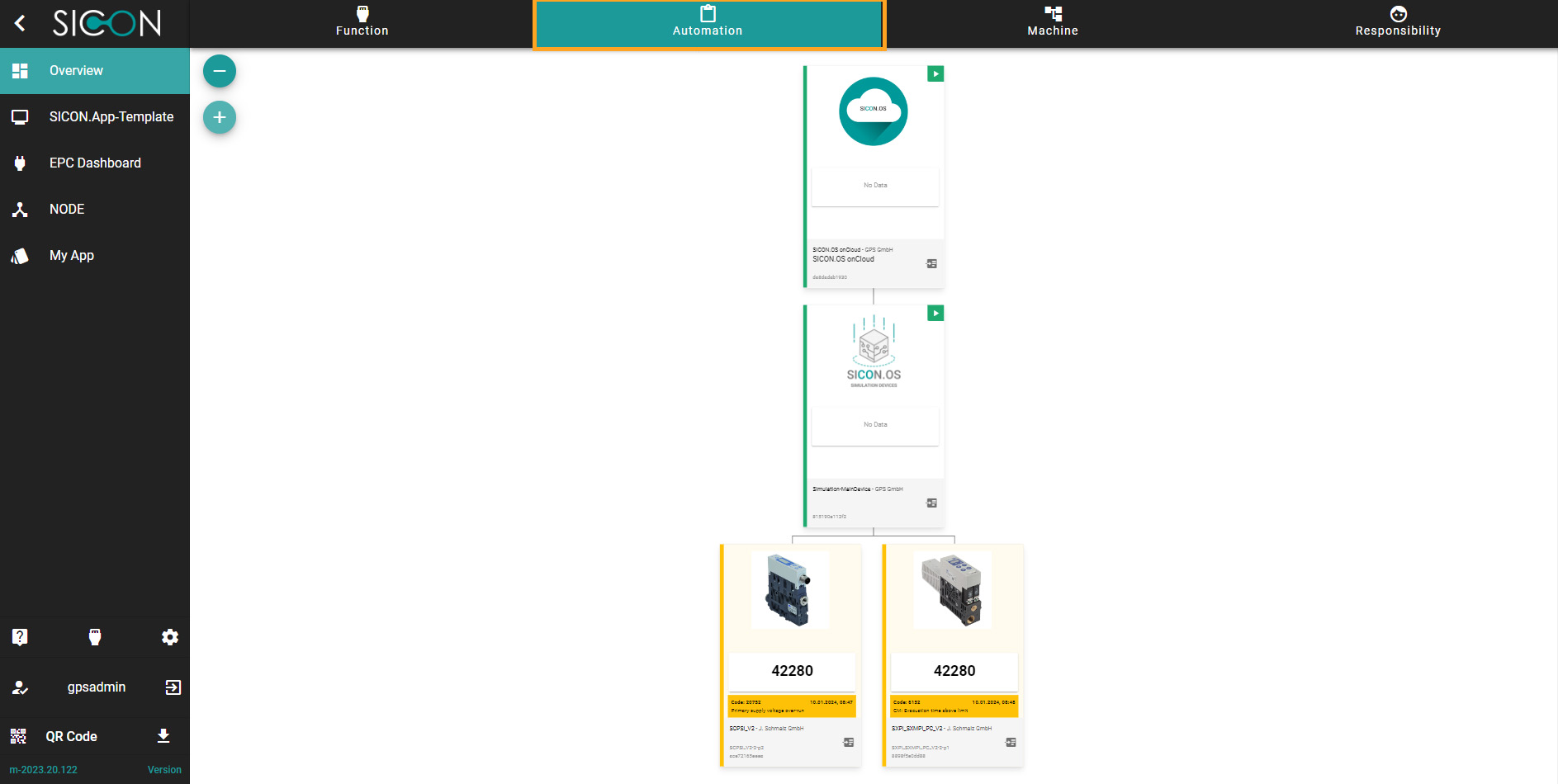

Automation View

As we know, Automation describes a wide range of technologies that reduce human intervention in processes. In SICON.OS, you can find the devices in hierarchy view based upon the connection between parent child devices.

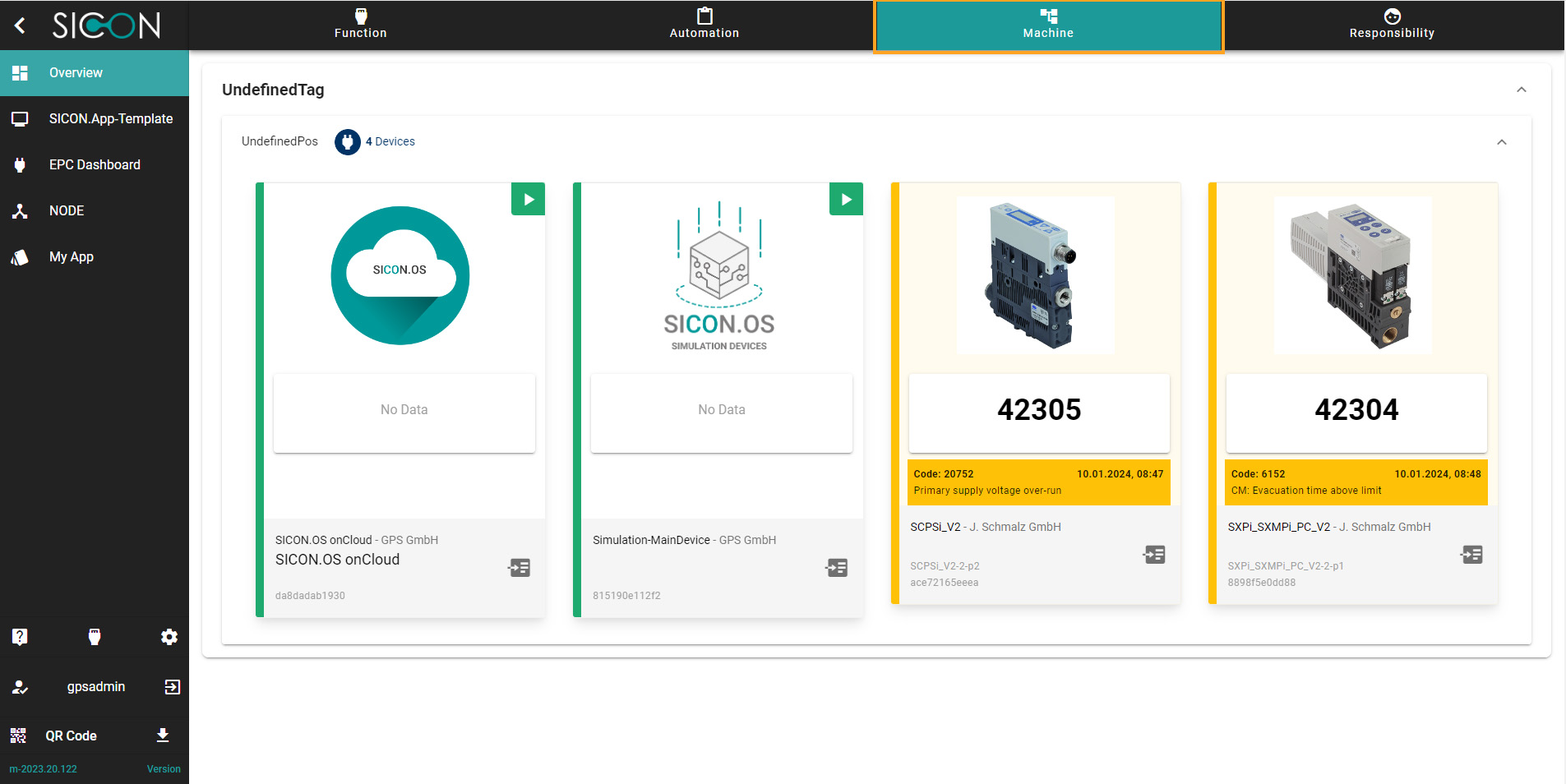

Machine View

Here, Devices in grouped view based upon device location tag and Pos.

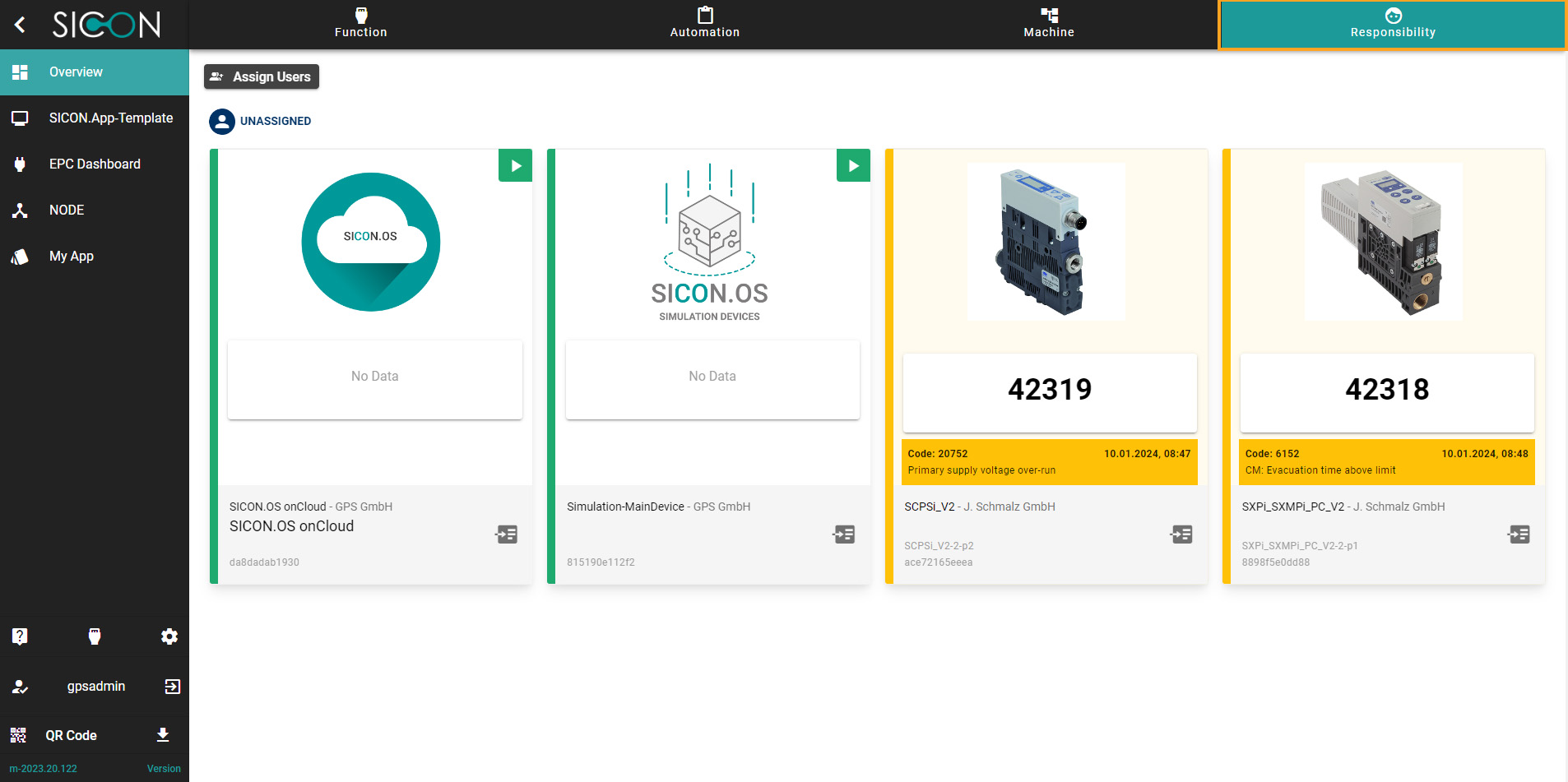

Responsibility

Devices in grouped view based upon the assigned users.

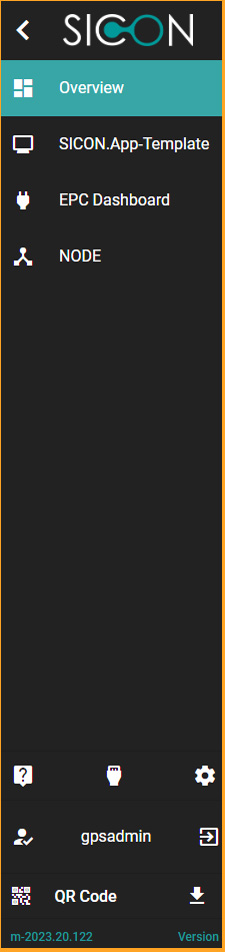

On the Left side panel, The overview tab displays the generic dashboard with all devices information which are connected with SICON software and other menus like SICON.APP Template, EPC dashboard.

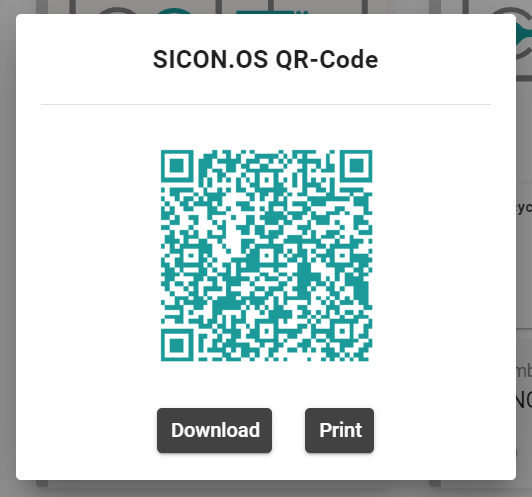

Beside Devices tabs, there are more option like SICON Help, Assets, Settings, Logout, SICON.OS QR-code scan and last but not the least is SICON.OS Version.

These are described below:

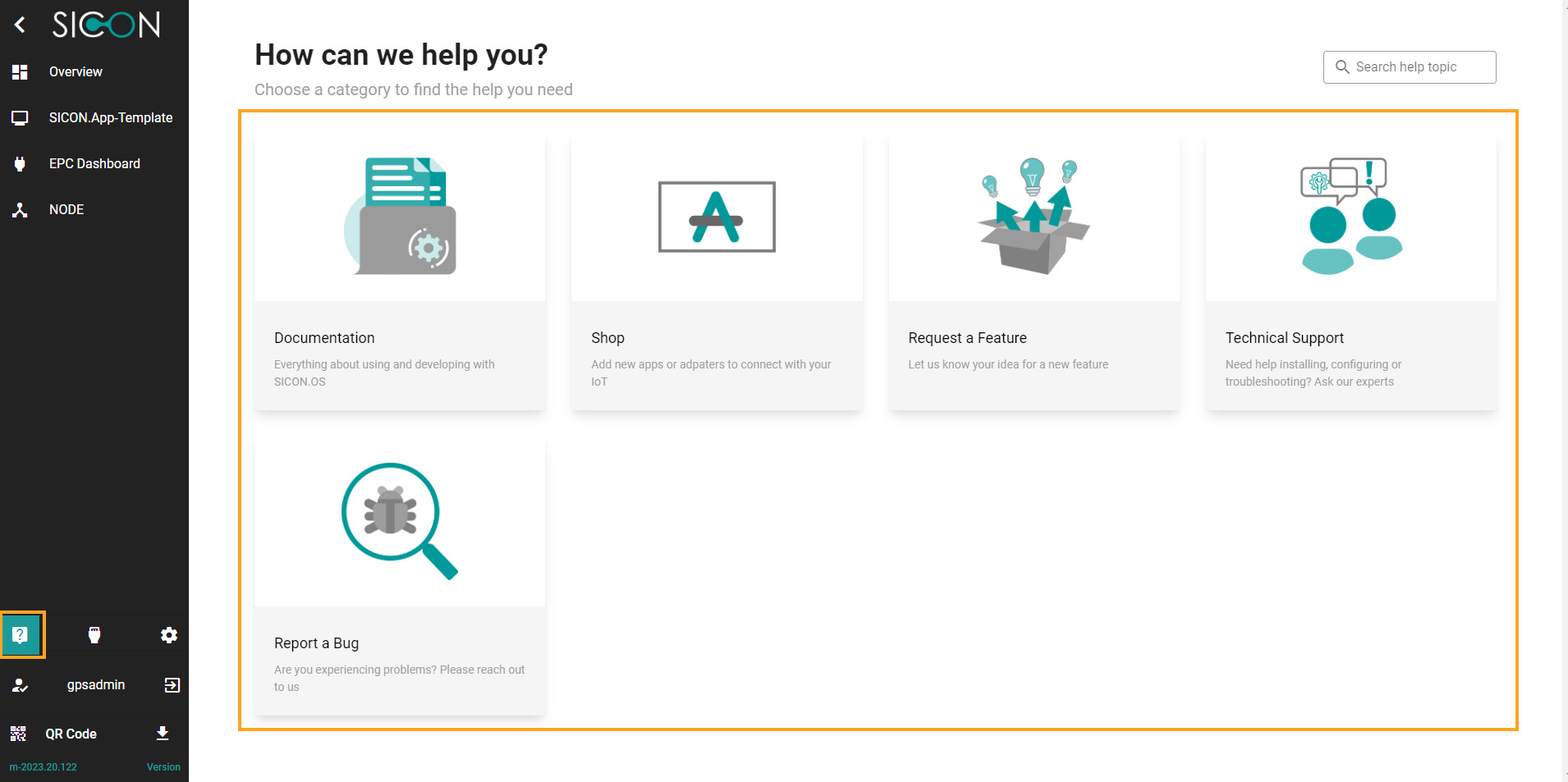

SICON Help

Under SICON Help, you will find the SICON Documentation, Shop, Feature request, Technical support and Report a bug feature.

In SICON Documentation, You will find the detailed documents about the SICON.OS, SICON.APP, SICON.PLUG and SICON.Platform, Setter guide and Developer guide.

Device Management

On the Device management section, you can find the three menu options: Devices, Description and the Floorplans.

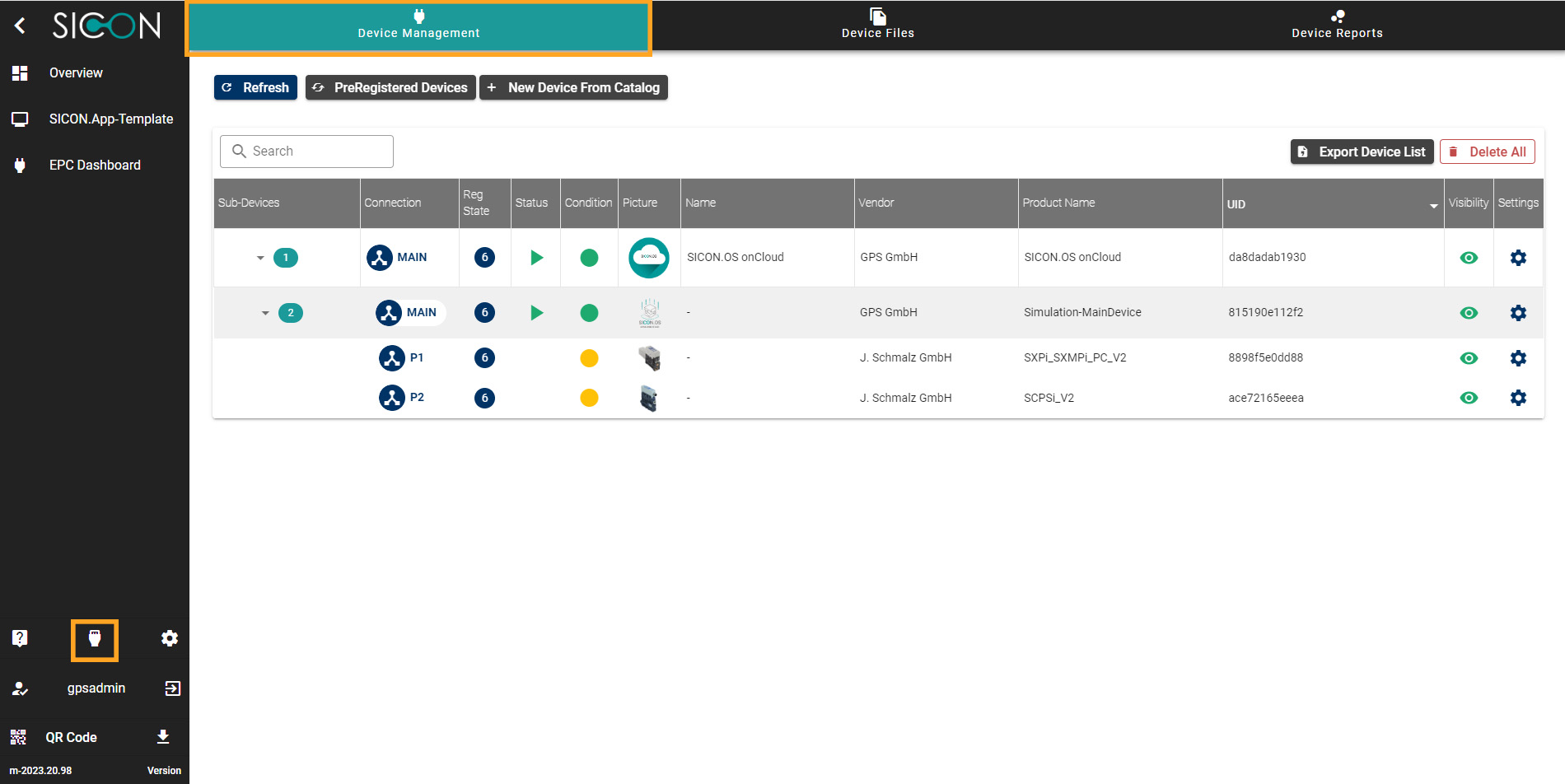

Under Devices, you can have the information about the Main Device or the Sub-Devices, PreRegistered Devices, add new Devices from catalog. The complete information is exhibit for the Device like mode of Connection, State, Status, Device image, name of the Cloud, Vendor name, Product name, Asset-ID, visibility and device setting.

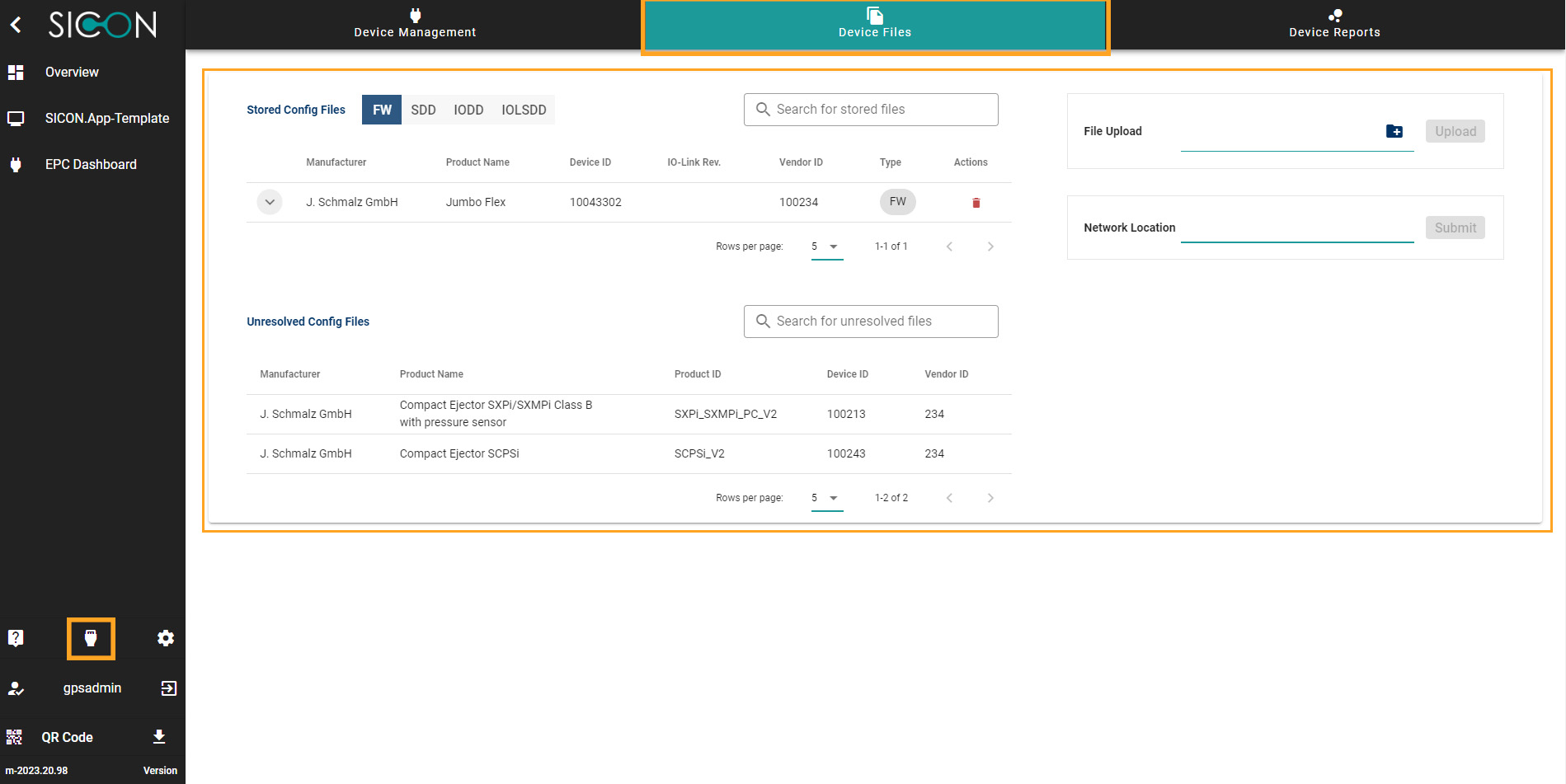

Under Device files, you can have the access of config files, upload file and the network location.

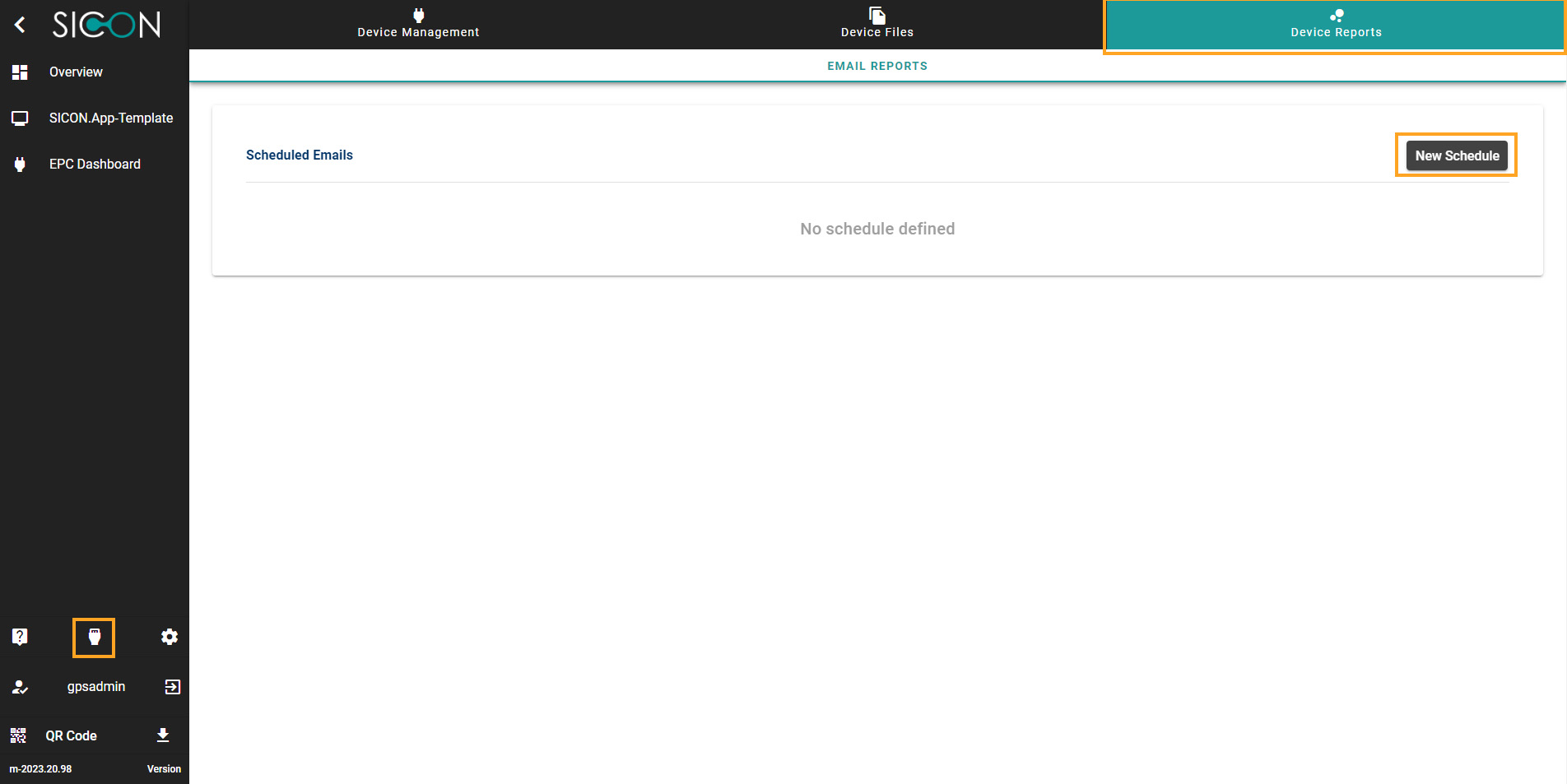

Under Device reports, you can schedule the email reports. Click on `New Schedule´

Settings

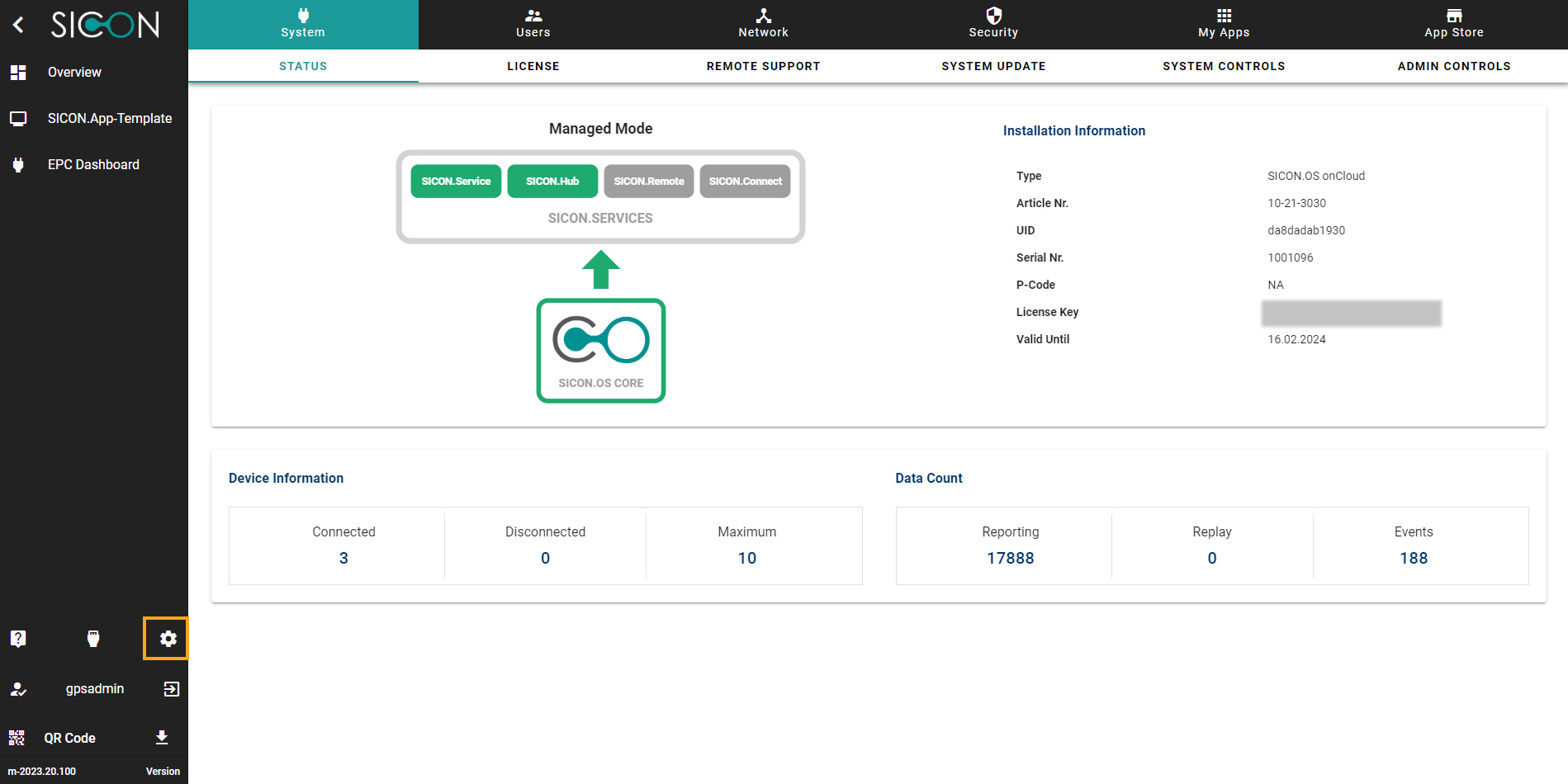

Click on the icon to go to the system management settings page

On system settings page, You will find the system Status, information about the Installation, Device, License, and other settings like Remote access, System update, System controls, and Admin controls on the sub-header menu.
