Adaption to Vacuum Generator

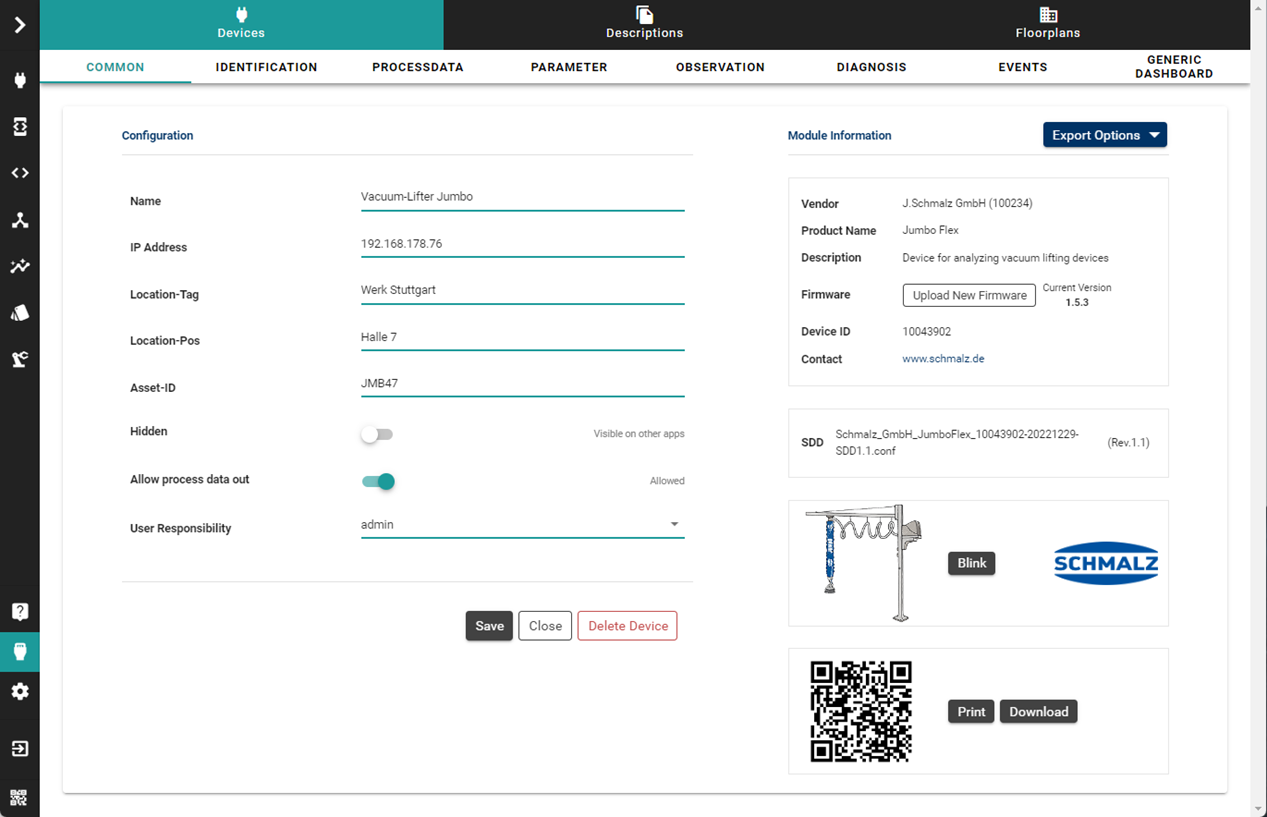

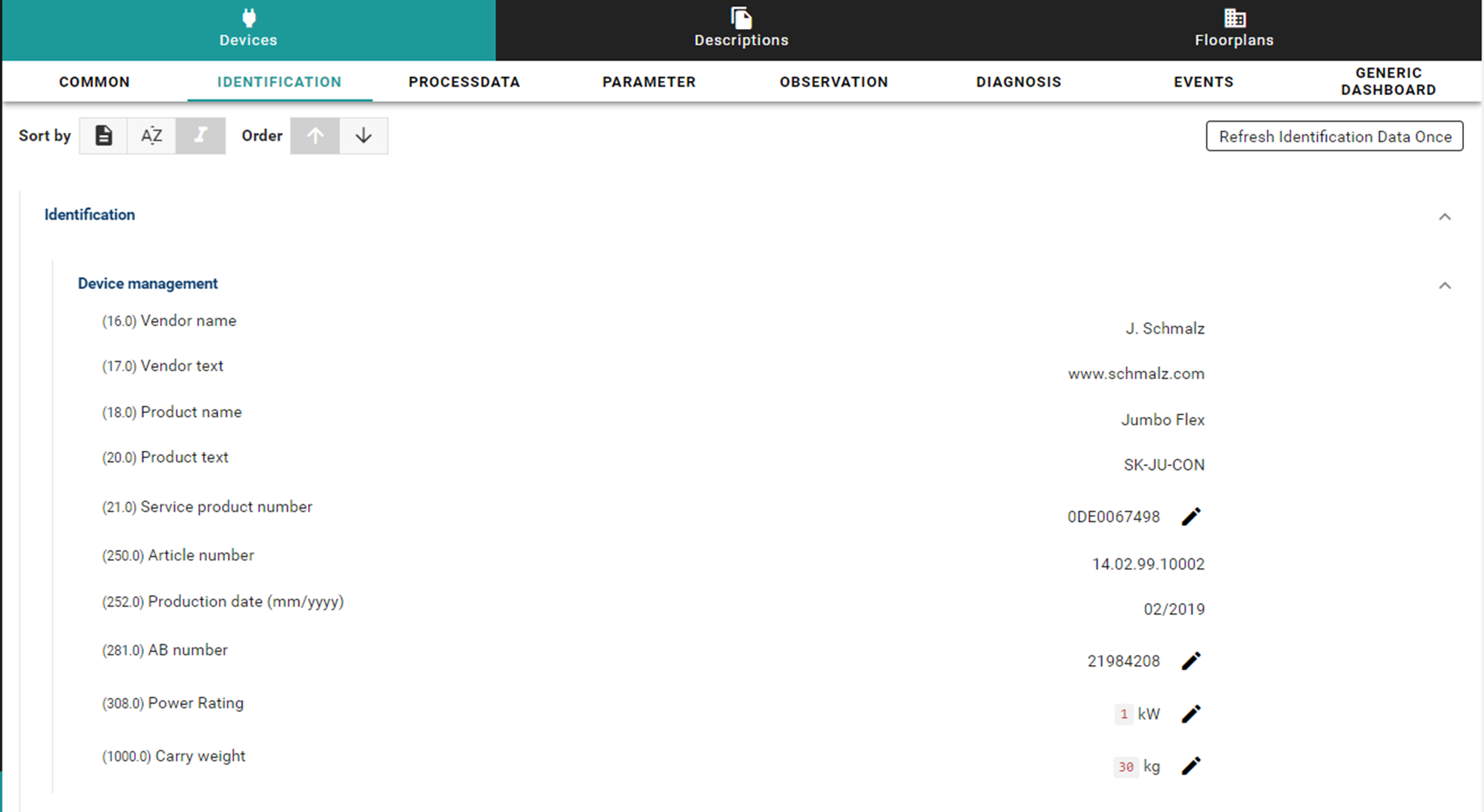

GENERAL
![](../../__attachments/1696628737/image-20230228-093521.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1696628737/image-20230228-093543.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
VACUUM GENERATOR

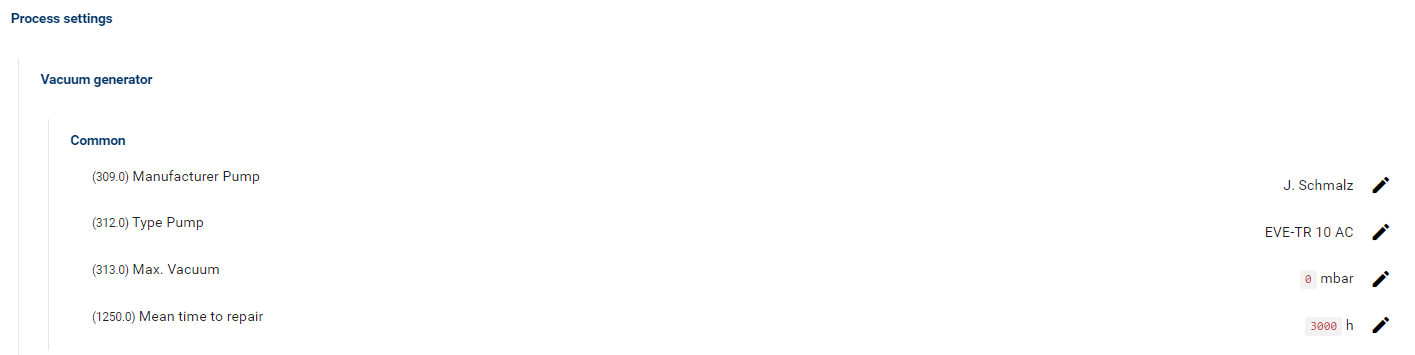

1. Device Management / Parameter → Base Settings of the vacuum generator
![](../../__attachments/1696628737/image-20230228-093751.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

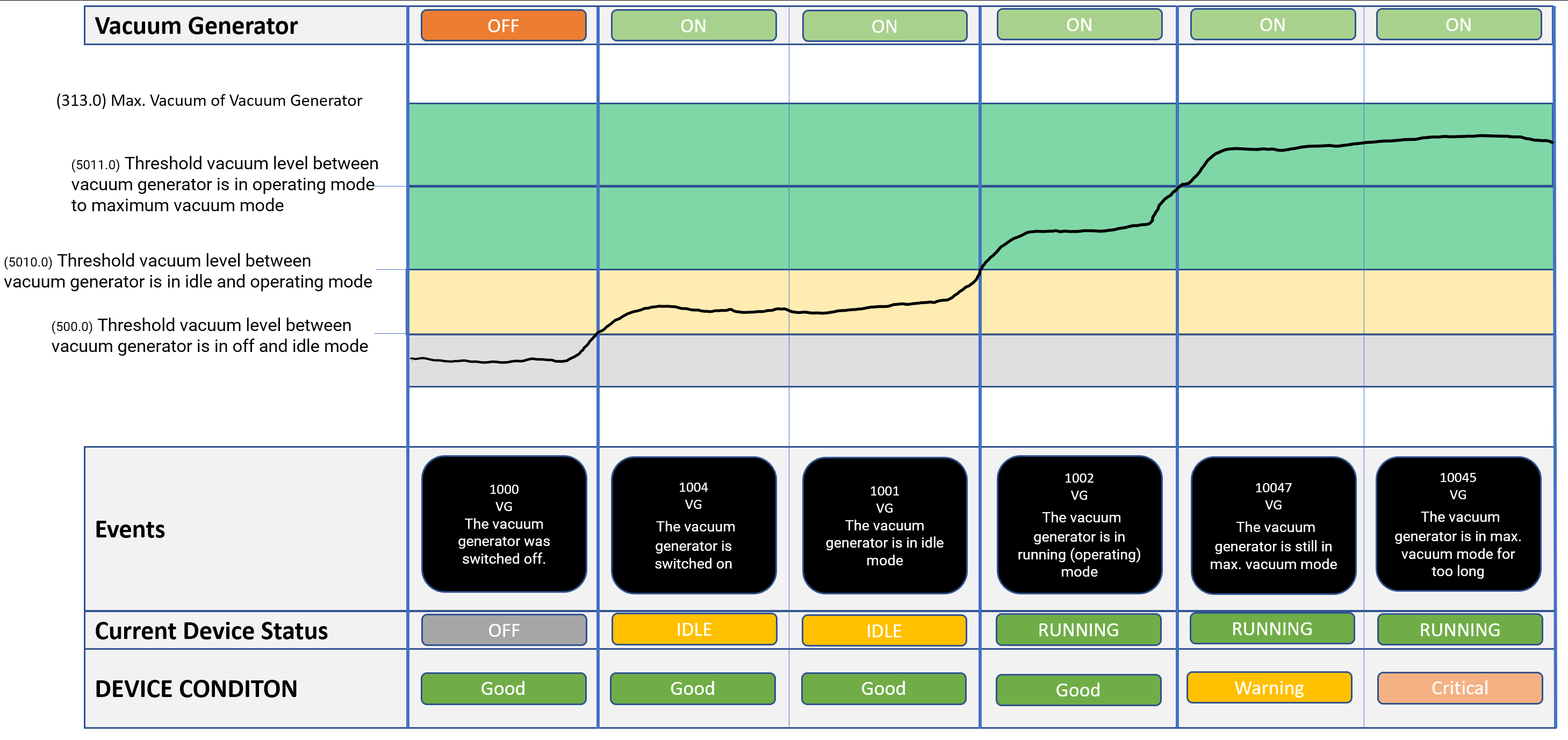

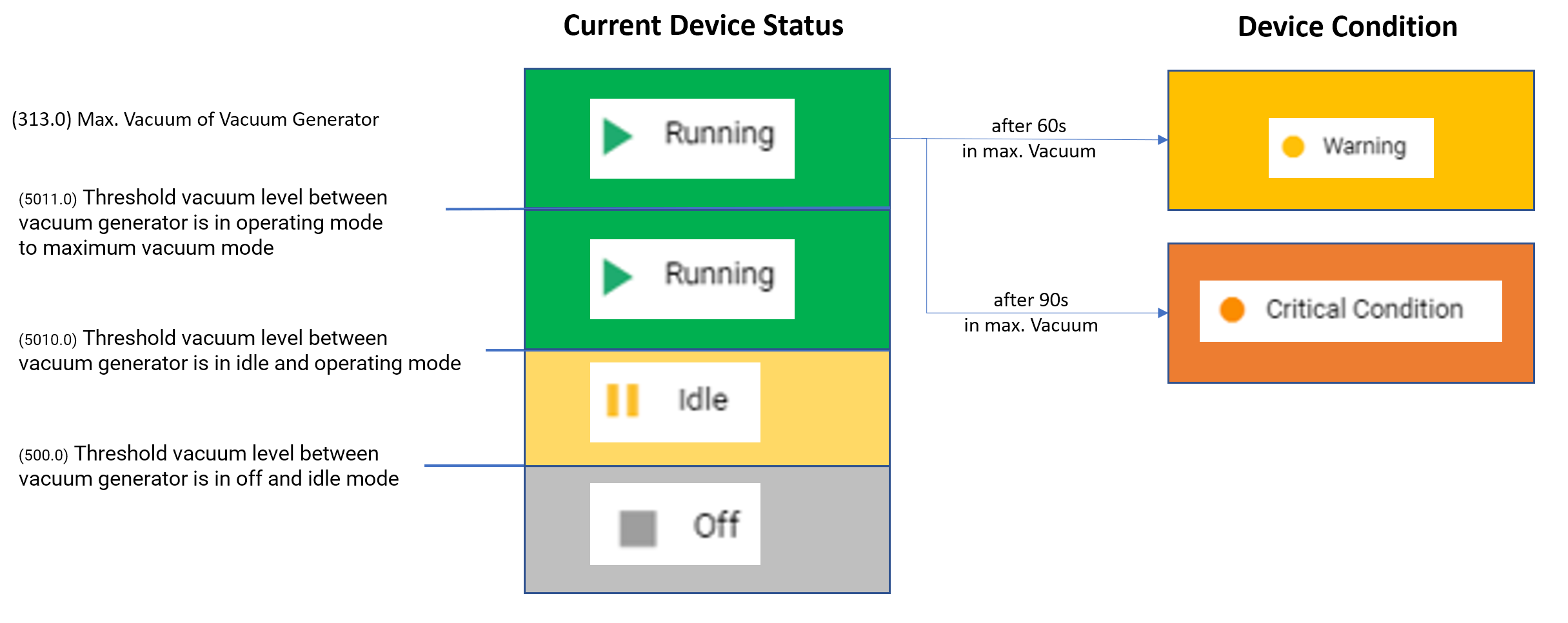

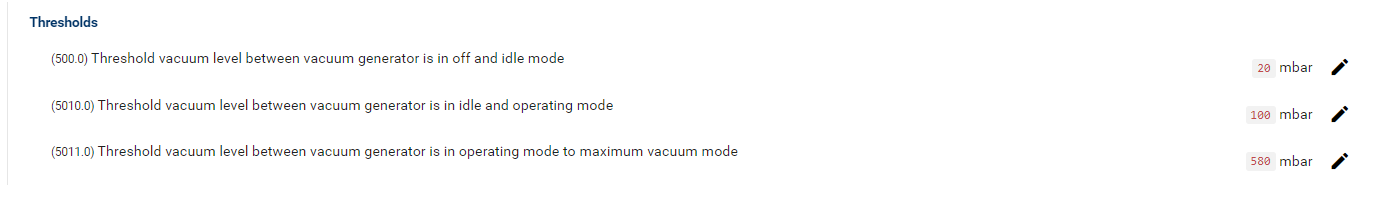

2. Device Management / Parameter → Settings for Thresholds of vacuum generator
![](../../__attachments/1696628737/image-20230228-094004.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1696628737/image-20230228-094135.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1696628737/image-20230228-094352.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

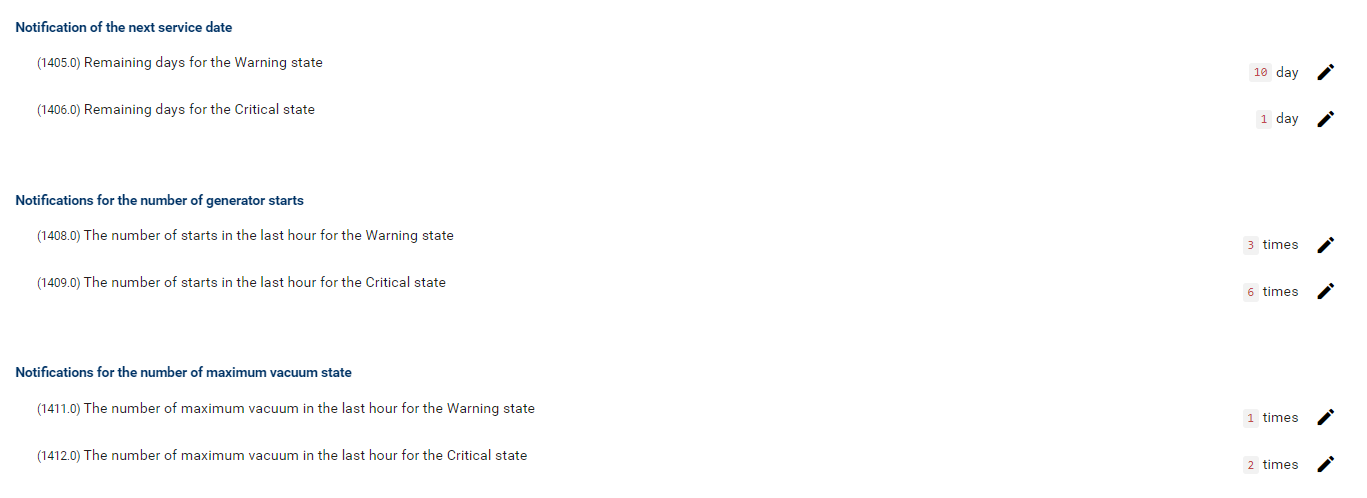

Device Management / Parameter → Settings for events of vacuum generator
![](../../__attachments/1696628737/image-20230228-094756.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

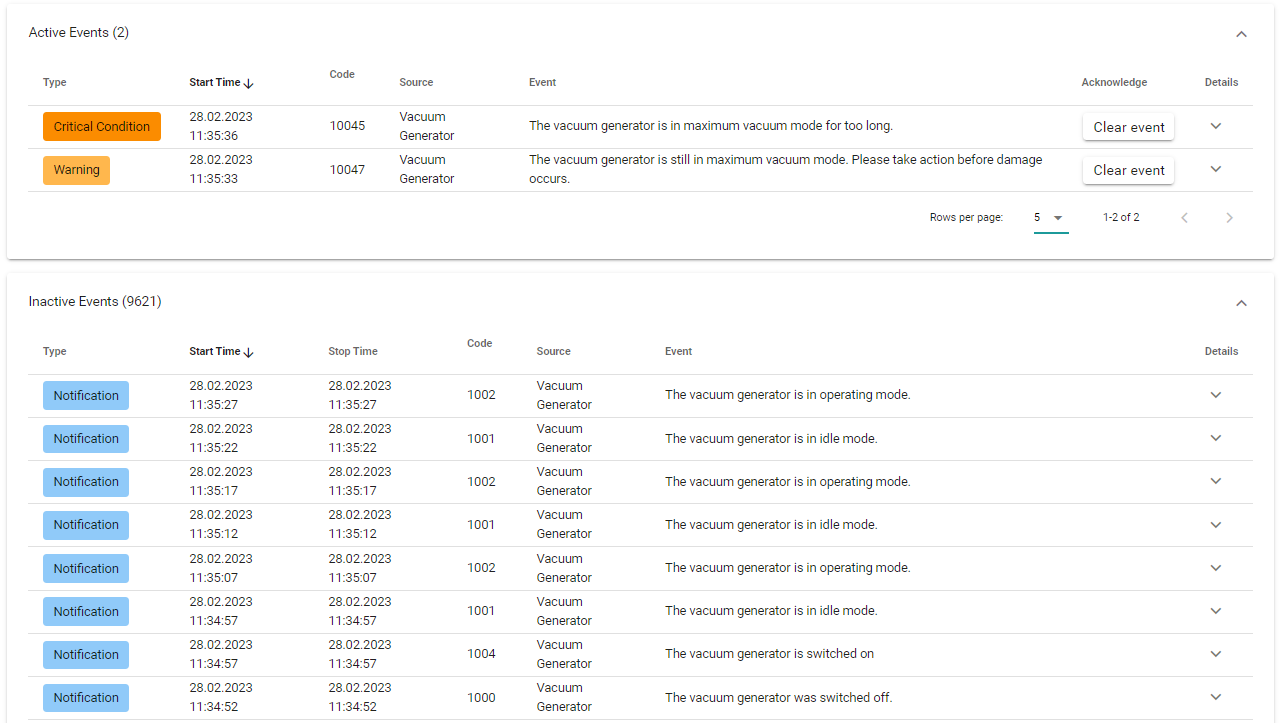

Based upon these settings, the Vacuum Generator will send Events to the messaging queue.
![](../../__attachments/1696628737/image-20230228-103608.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
VACUUM FILTER
Coming Soon in 2024 🚀
We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.
