Adaption to Vacuum Lifter [SICON.PLUG JMB]
The Vacuum lifter consists of 4 elements.
Vacuum Generator
Vacuum Filter
Crane System
Vacuum Lifter
These must each be configured separately

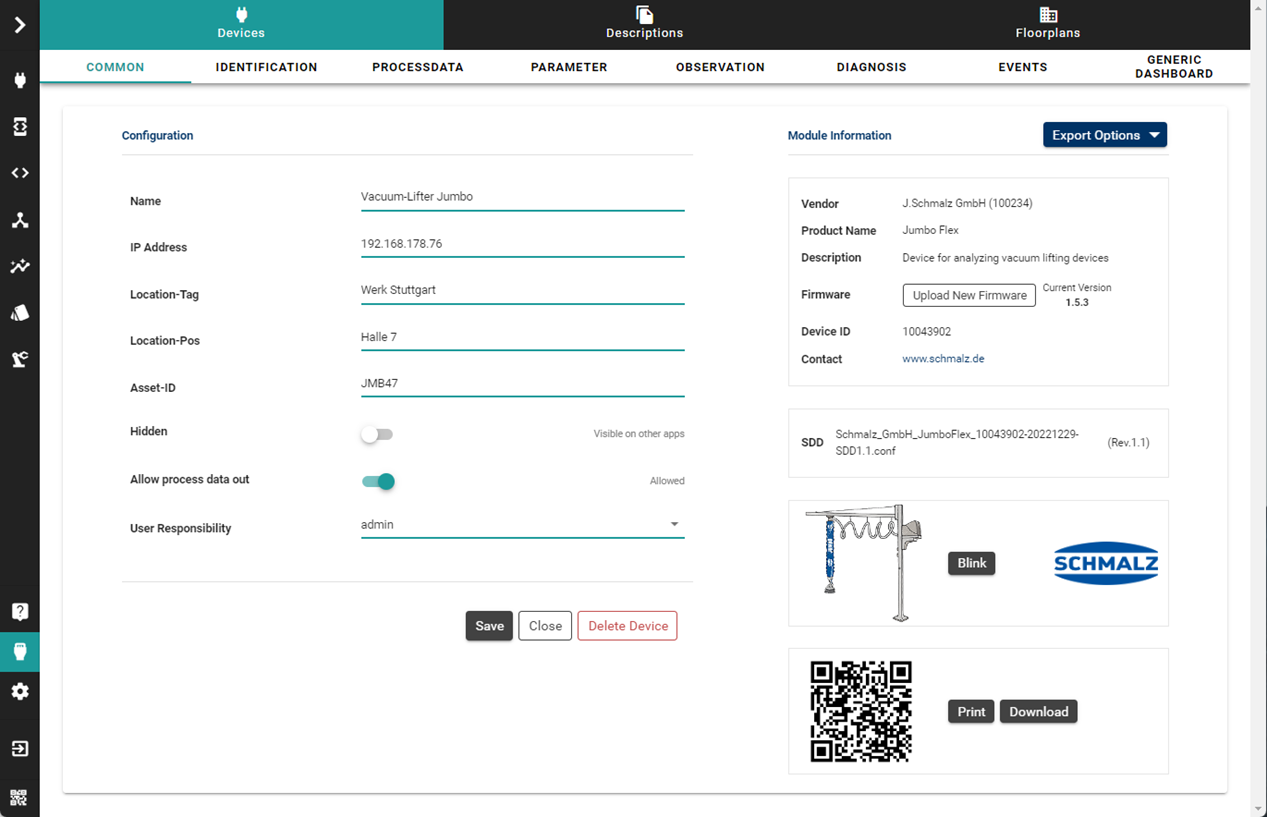

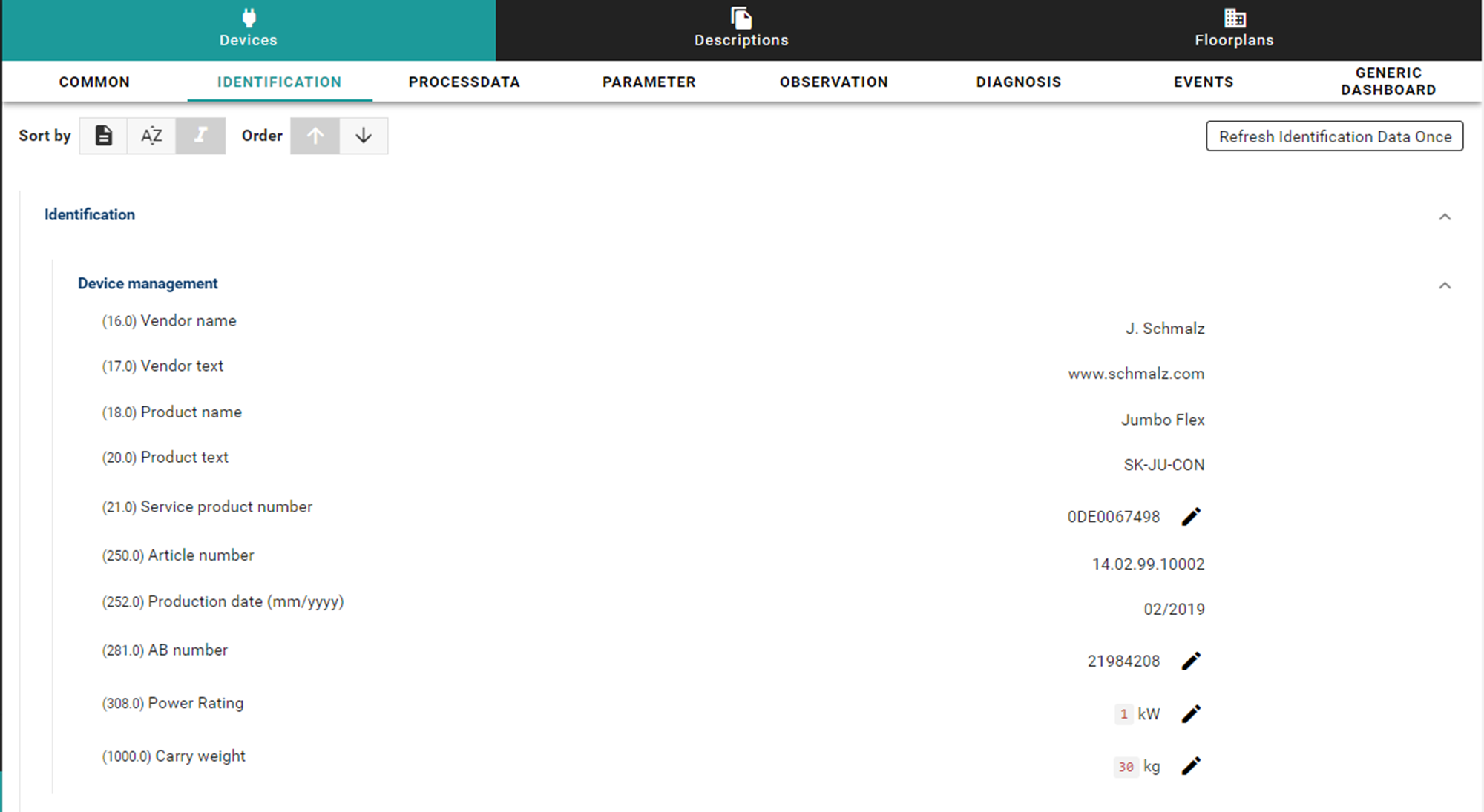

GENERAL
![](../../__attachments/1695809574/image-20230228-093521.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1695809574/image-20230228-093543.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
VACUUM GENERATOR

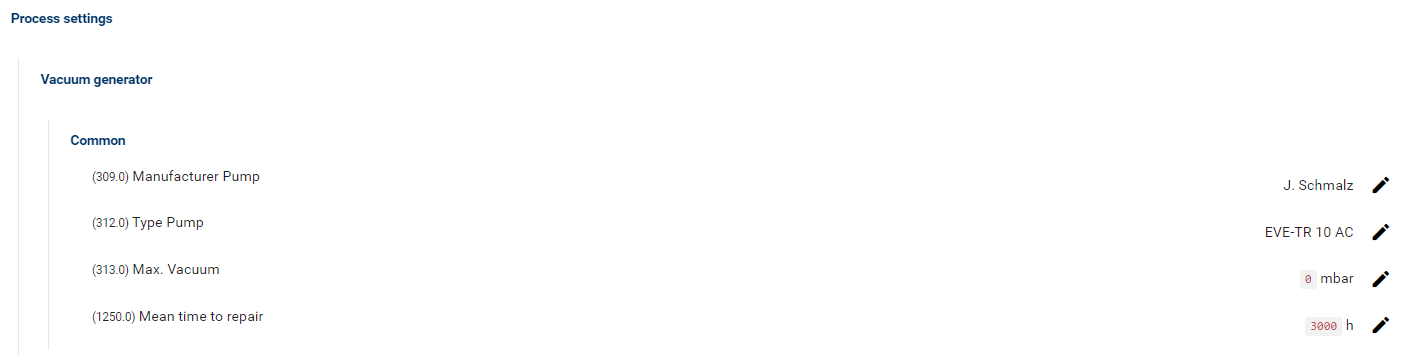

Device Management / Parameter → Base Settings of the vacuum generator
![](../../__attachments/1695809574/image-20230228-093751.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

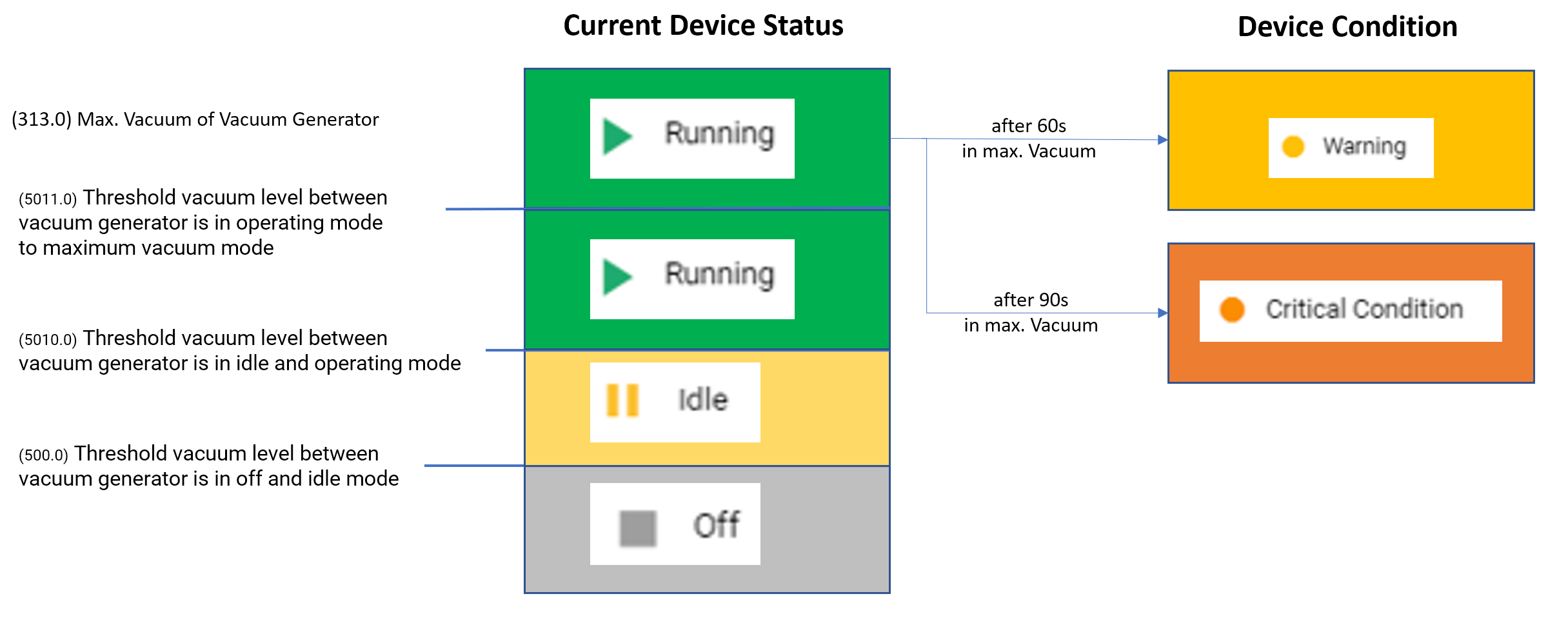

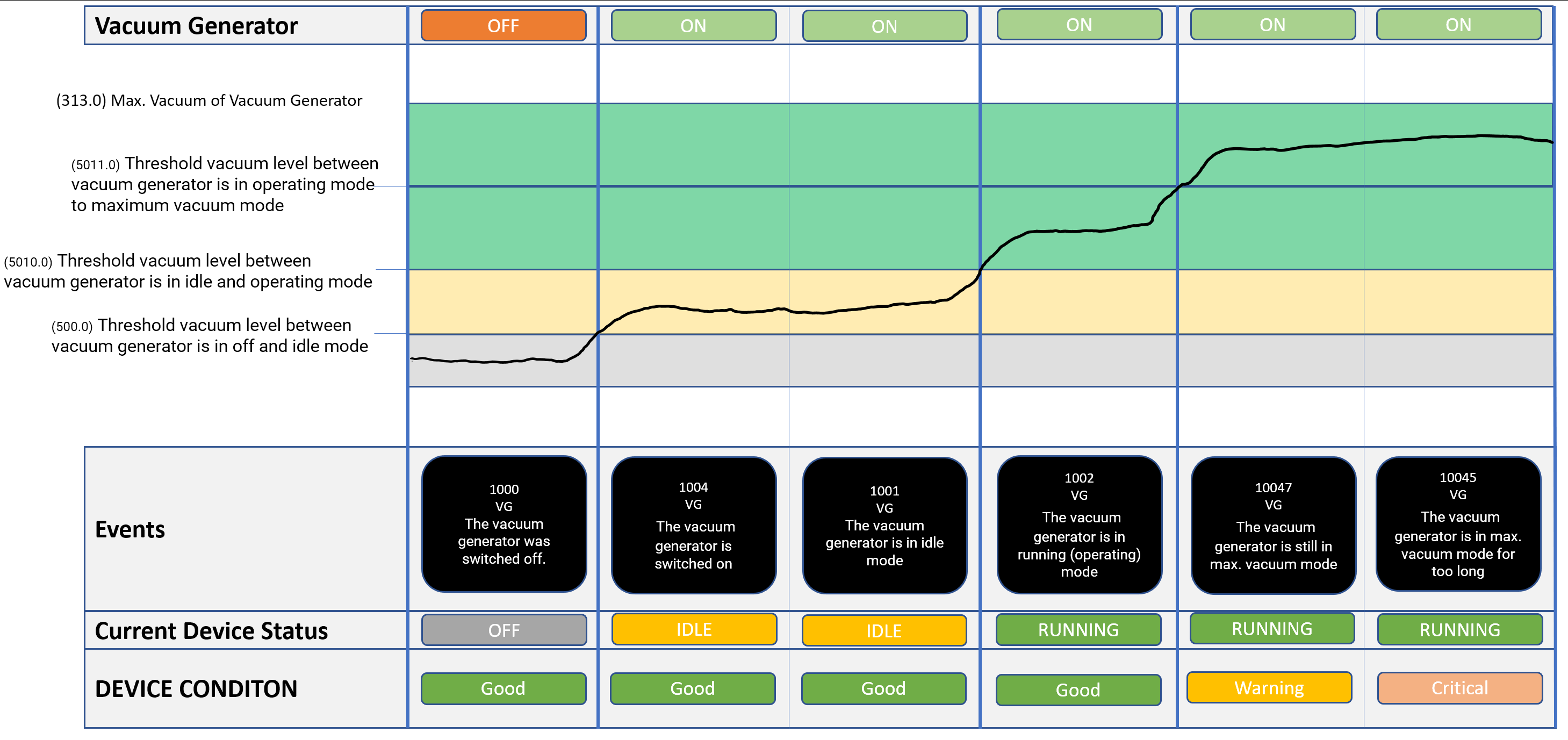

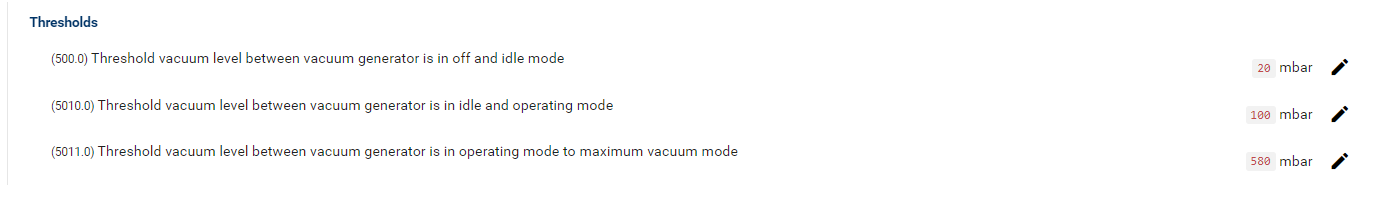

Device Management / Parameter → Settings for Thresholds of vacuum generator
![](../../__attachments/1695809574/image-20230228-094004.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1695809574/image-20230228-094135.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1695809574/image-20230228-094352.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

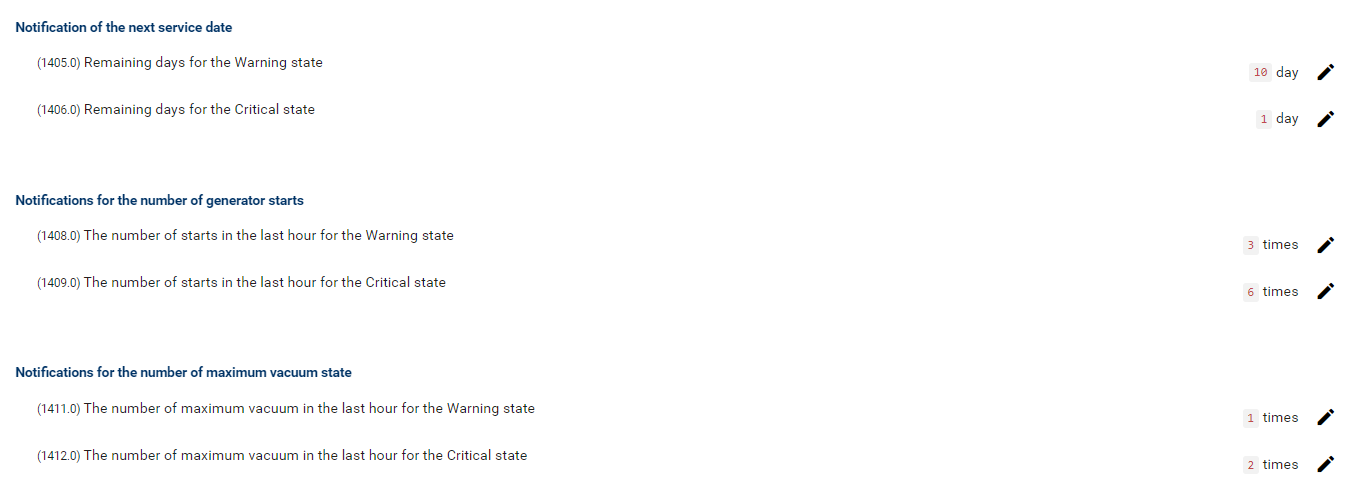

Device Management / Parameter → Settings for events of vacuum generator
![](../../__attachments/1695809574/image-20230228-094756.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

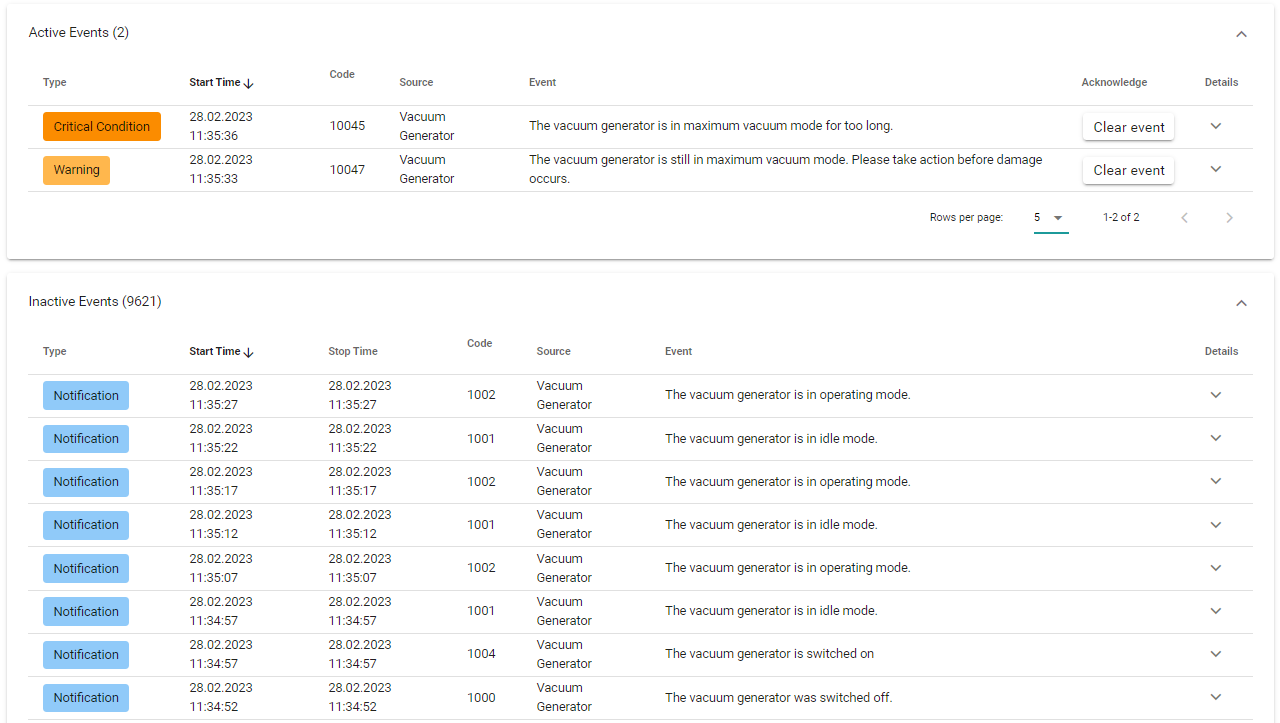

Based upon these settings the Vacuum Generator will send Events to the messaging queue.
![](../../__attachments/1695809574/image-20230228-103608.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
VACUUM LIFTER

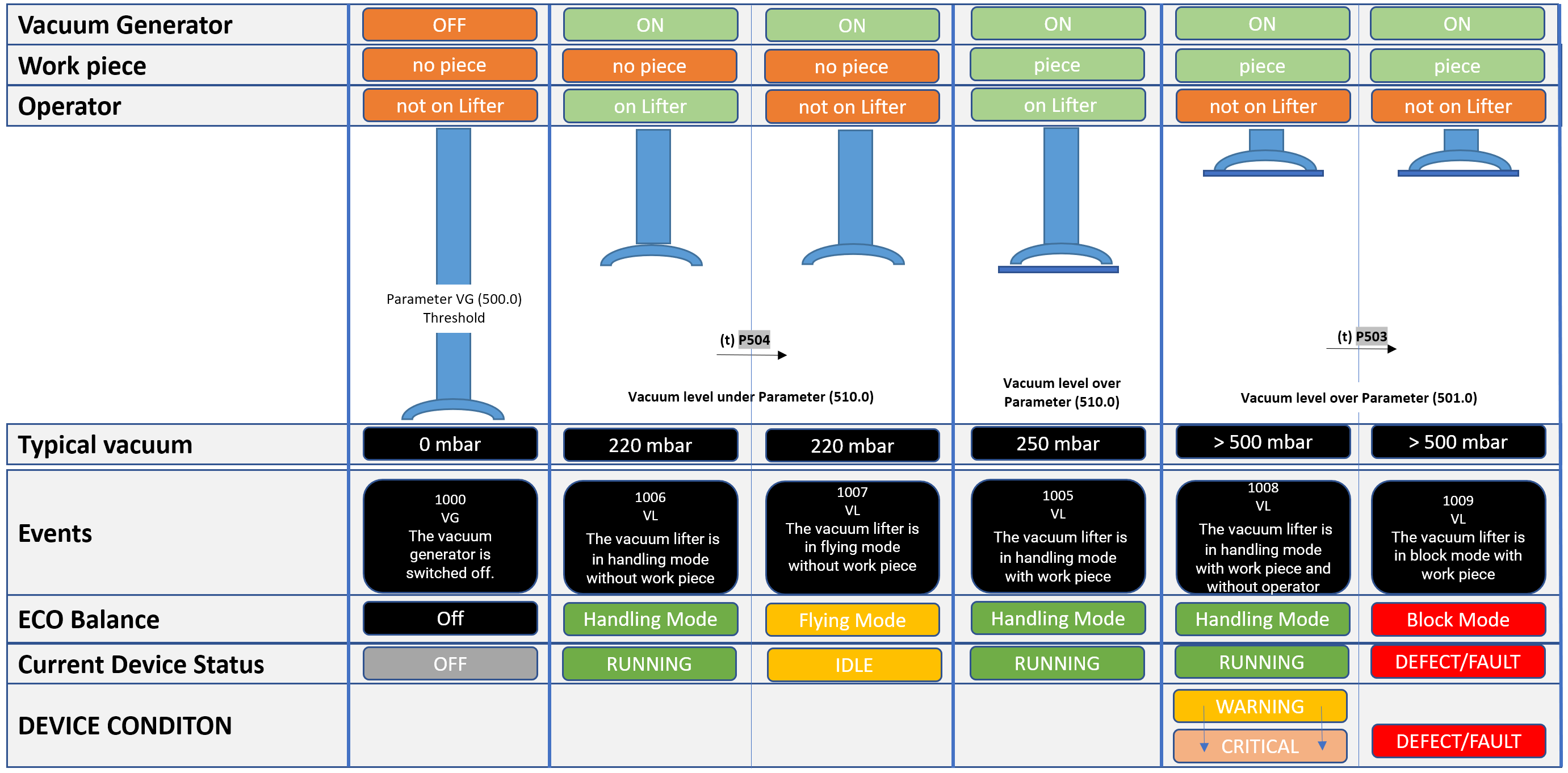

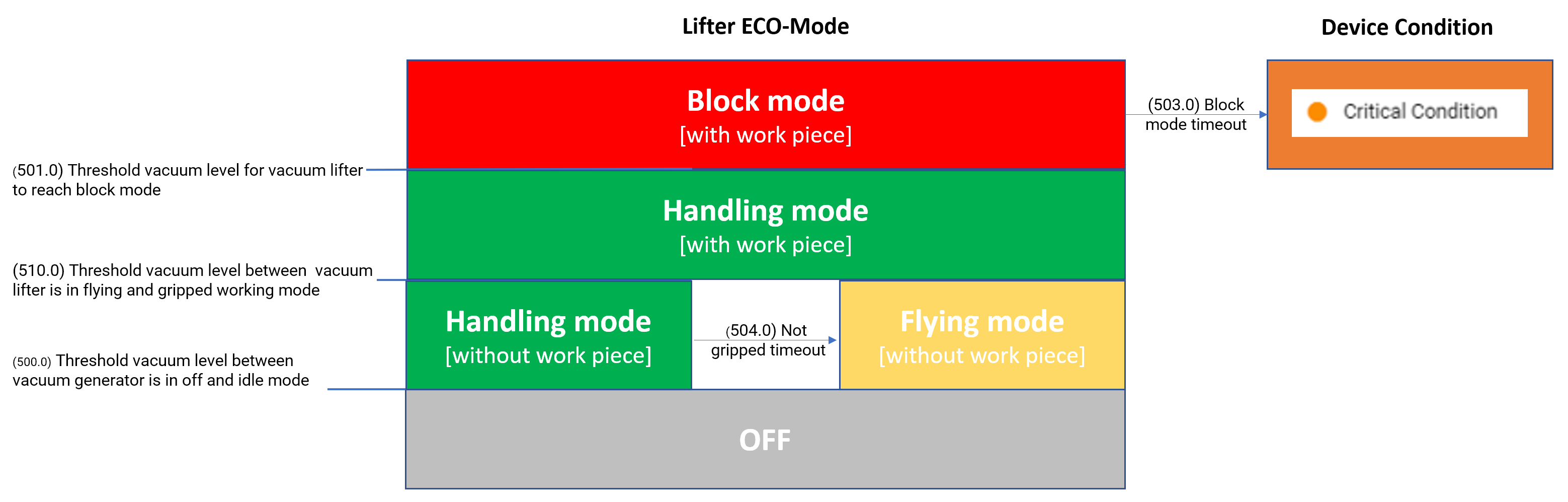

The vacuum lifter will have the following operating modes:
Handling mode → vacuum lifter is in normal operating and operator is picking and dropping parts
Flying mode → vacuum lifter is released by operator without part on gripper
Block mode → vacuum lifter is released by operator with part on gripper

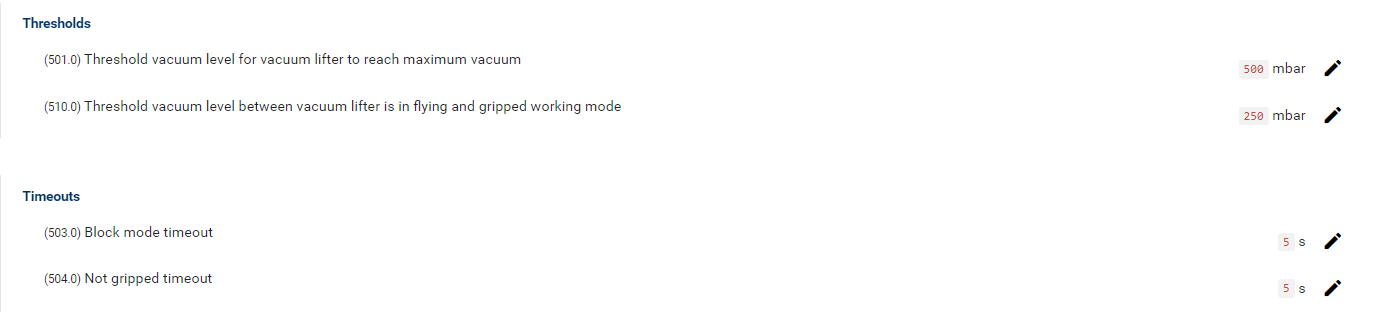

Device Management / Parameter → Base Settings of the vacuum lifter
![](../../__attachments/1695809574/image-20230228-095026.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1695809574/image-20230228-103309.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
![](../../__attachments/1695809574/image-20230228-103336.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)

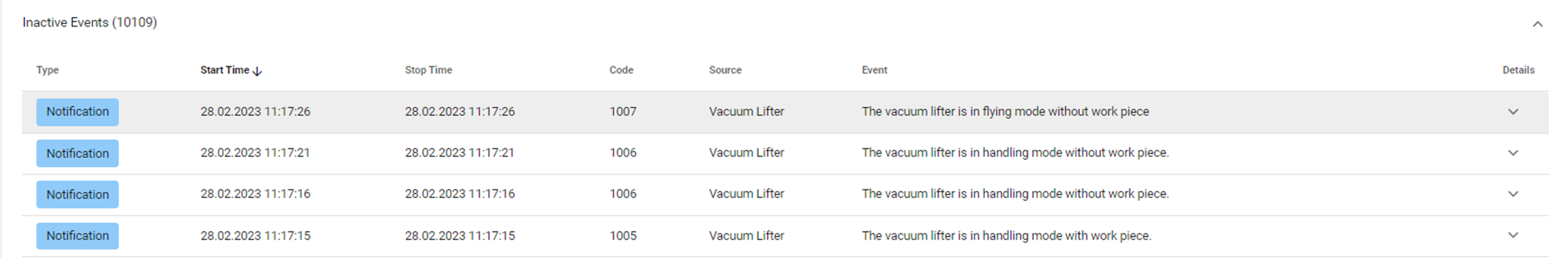

Based upon these settings, the Vacuum Lifter will send Events to the messaging queue.
![](../../__attachments/1695809574/image-20230228-103411.png?inst-v=65d42a50-0dda-4c2c-8661-6bcc6a9ac0e8)
VACUUM FILTER
Coming Soon in 2024
We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.
CRANE SYSTEM
Coming Soon in 2024
We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.
