SICON.PLUG AI CobotPump ECBPi [30-04-0470]
BASIC INFORMATION | |
|---|---|
SKU | 30-04-0470 |
NAME | SICON.PLUG AI CobotPump ECBPi |
Device ID | 100310 |

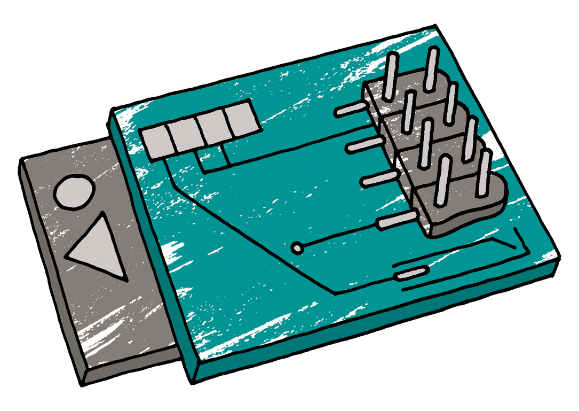

Central data analysis gateway with UART communication
The SICON.PLUG AI CobotPump ECBPi turns your device with a UART interface into a smart device. Parameters can be changed and data can be transported to your company network via the integrated WLAN.
Collisions and vibrations are reliably detected via the built-in acceleration sensor and reported to the maintenance engineer or service personnel.
The built-in replay function makes your process transparent and enables you to visualize the last 30s of the process again.
Prepared visualizations and events help with process optimization and provide information about future maintenance and existing system errors.
FEATURES | |
|---|---|
|
|
|
|
|
|
|
|
|
|
PRODUCT FEATURE | |
|---|---|
MECHANICAL DATA | |
Dimensions | 30mm x 25mm x 15mm |
Weight | 100g |
ELECTRICAL DATA | |
Operating Voltage | 3,3V DC +/- 10% |
Current Consumption | 500mA |
COMMUNICATION INTERFACES | |
WLAN | 2.4 GHZ with antenna |
UART | RX / TX via Pin Header |
INTEGRATED SENSOR | |
Acceleration Sensor | 3-axis acceleration and rotation rate sensor +/- 2g |
ENVIRONMENTAL CONDITIONS | |
Ambient Temperature | 0 ° C to + 50 ° C |
APPROVALS / EXAMS | |
EMV | CE /EMV/ RoHs |

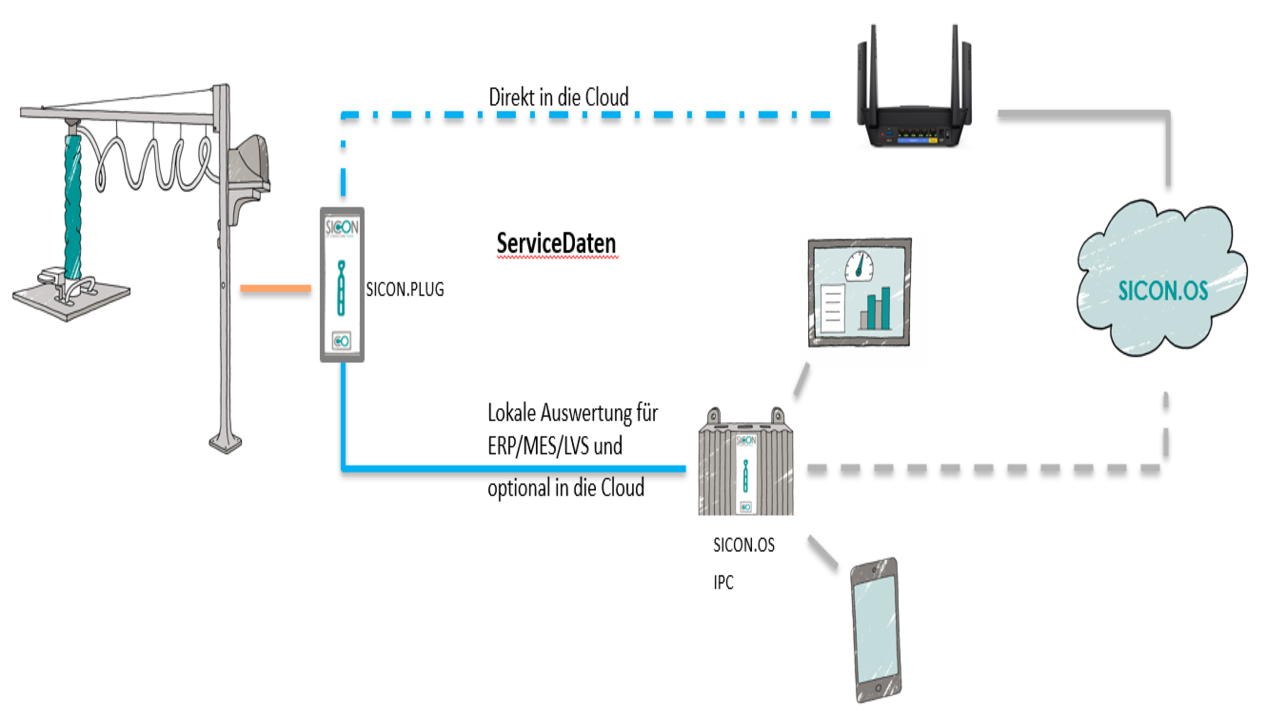

EXAMPLE OF USE |
|---|
 |
IMAGE GALLARY |
|---|
|
ORDER DATA | |
|---|---|
30-04-0470 | SICON.PLUG AI ECBPi |
EQUIPMENTS | |
50-01-0121 | Setup app for installation (free of charge) for Android and iOS |
40-01-0050 | IPC Computing Edge solution (hardware) |
10-04-0120 | SICON.OS Central management for up to 20 SICON.PLUGs |
DOCUMENTS | |
|---|---|
Instruction manual | |
