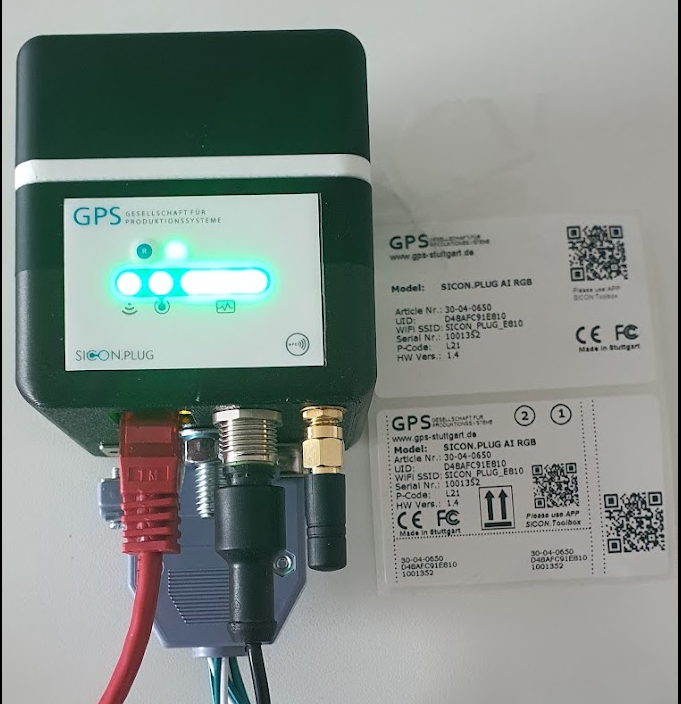

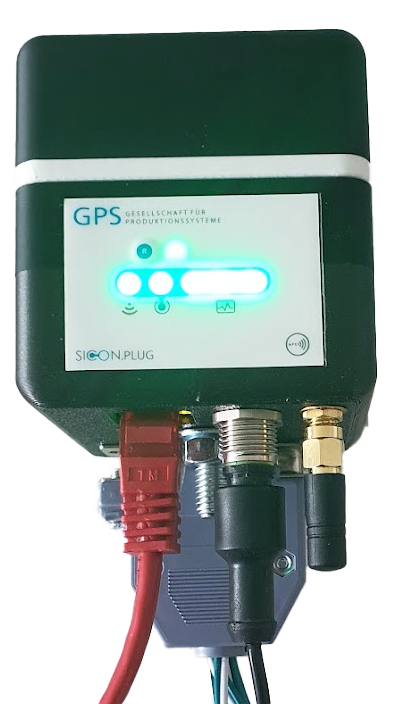

SICON.PLUG AI PickBeam [30-08-2450]


Basic Information

SKU

30-04-0650

NAME

SICON.PLUG AI PickBeam

Device ID

100490

PickBeam™ pick-by-light system for your logistics requirements

The SICON.PLUG AI PickBeam ensures safe processes in assembly and supports employees in the plant, especially during the training phase.
Interactive process control guides fitters step by step through all tasks.
Work screens provide the necessary information such as assembly instructions, accompanying documents, images and videos.
In addition, inspection data is provided and functions for the automated recording of quality and production data are offered.
An optional LED-based pick-by-light system is also available to further increase efficiency.

FEATURES

  • Easy navigation:

    • Thanks to the clear light displays above each storage bin, navigating through the warehouse is child's play.

    • Employees receive immediate visual instructions on where to go to find the products they need.

  • Precise removal instructions:

    • No more uncertainty when selecting products.

    • The light indicators not only show the location of the product, but also the exact quantity that needs to be removed. This means that every removal is carried out precisely and efficiently.

  • Quick confirmation:

    • Employees can confirm picking at the touch of a button or with a simple scan, making the picking process seamless and without delays.

  • Customized integration:

    • PickBeam™ can be easily integrated into your existing logistics processes.

    • Our team works closely with you to ensure that the system is optimally tailored to your individual requirements.

  • Maximize your productivity:

    • Save time and resources while significantly reducing the error rate.

    • Increase the efficiency of your warehouse.

    • Improve customer satisfaction.

TECHNICAL DATA

ELECTRICAL DATA

The control unit for controlling up to 5 rows of picks and up to 15m each (max 1000 LEDs).

Power supply

24V/1,0 A

Light strips

RGB light strips

Power supply units

5V/15A

Connection material

cables

COMMUNICATION INTERFACES

Care and pt. Contact

--

Ethernet

RJ45 socket 10Mbit / s

WLAN

2.4 GHZ with antenna

5x LED and 1x button

Pressure Connection

Operator Interface

INTEGRATED SENSORS

To be defined

No

ENVIRONMENTAL CONDITIONS

Ambient Temperature

0 ° C to + 50 ° C

Degree Of Protection

IP 40

APPROVALS/EXAMS

EMV

CE /EMV/ RoHs

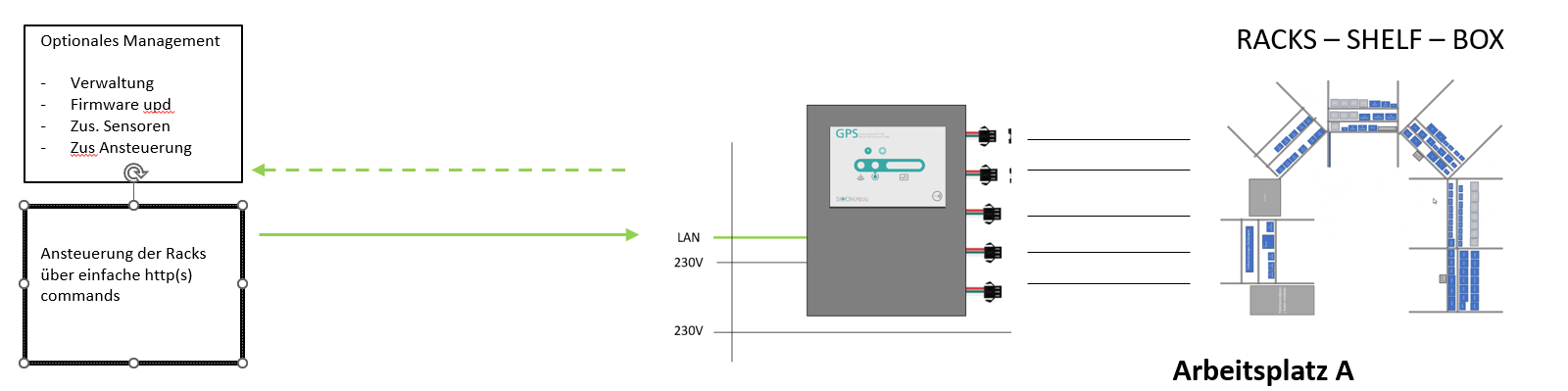

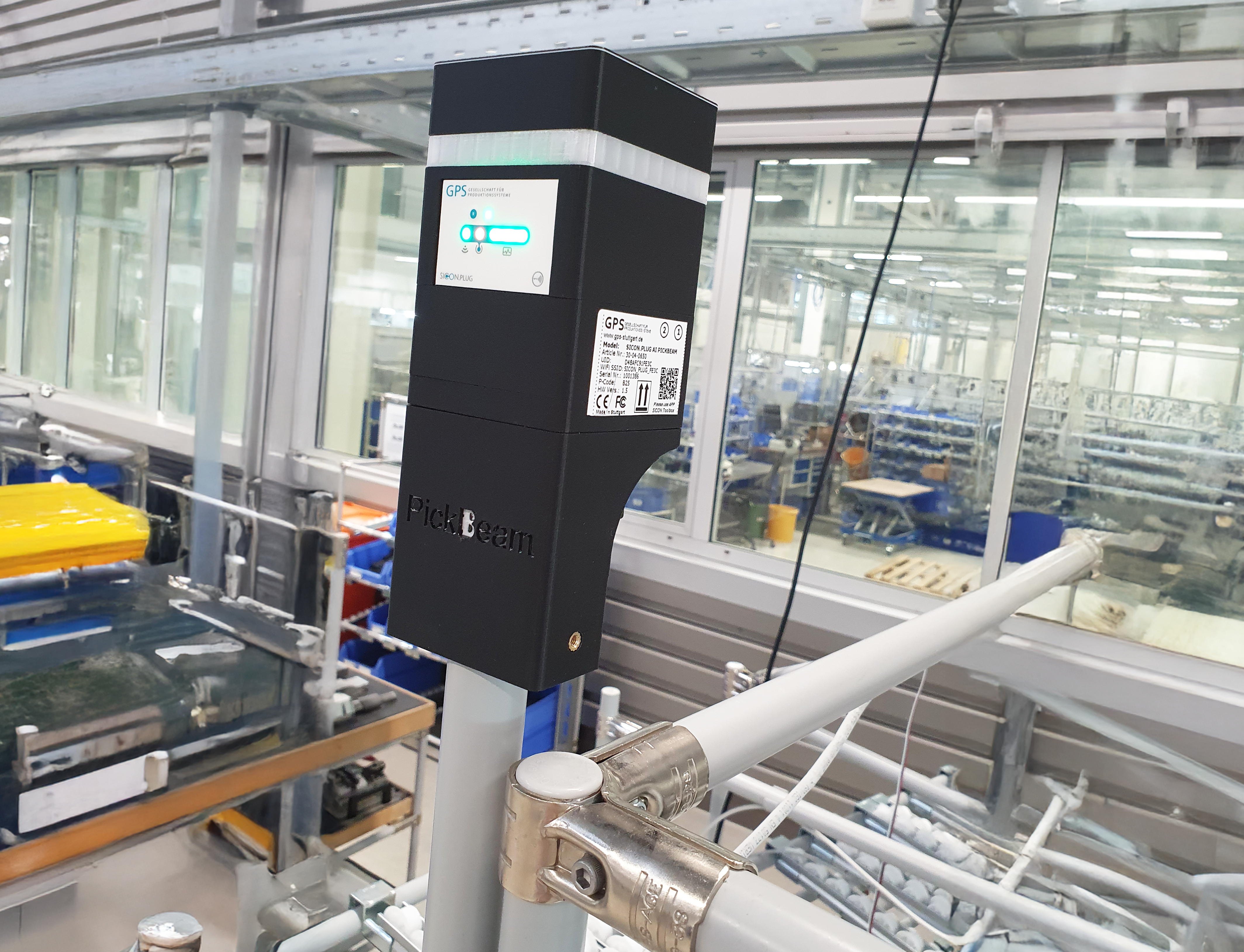

EXAMPLE OF USE


IMAGE GALLARY


ORDER DATA

30-08-2450

SICON.PLUG AI PickBeam

EQUIPMENTS

To be defined

---

DOWNLOADS

Instruction manual

Operating Instruction (Coming soon)

Technical Document

Technical Data for SICON.PLUG AI PickBeam [30-08-2450].pdf

SICON PickBeam Plug Prospect

---
