(en)SICON.PULSE LoRa - Adaption to Vacuum Lifter [SICON.PLUG JMB]

The Vacuum lifter consists of 4 elements.

  • Vacuum Generator

  • Vacuum Filter

  • Crane System

  • Vacuum Lifter

These must each be configured separately

GENERAL


VACUUM GENERATOR

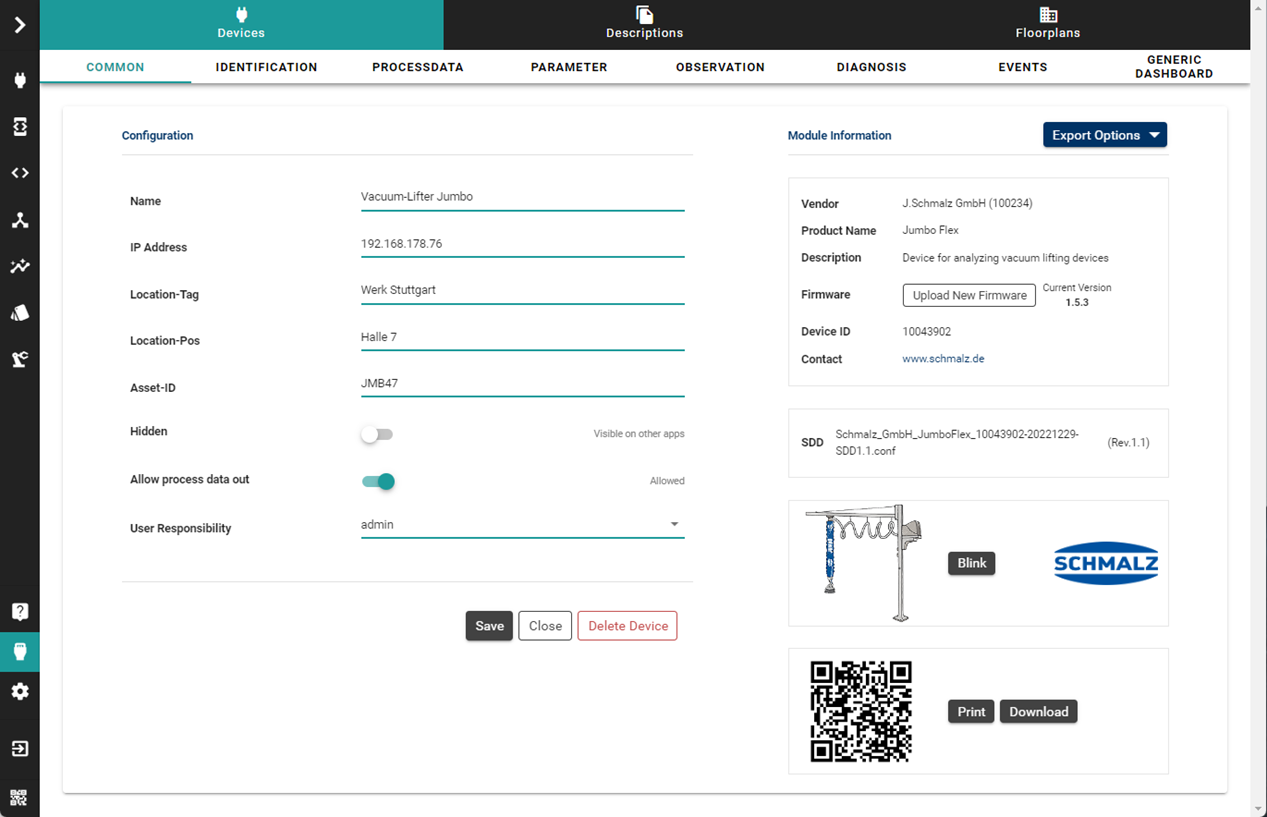

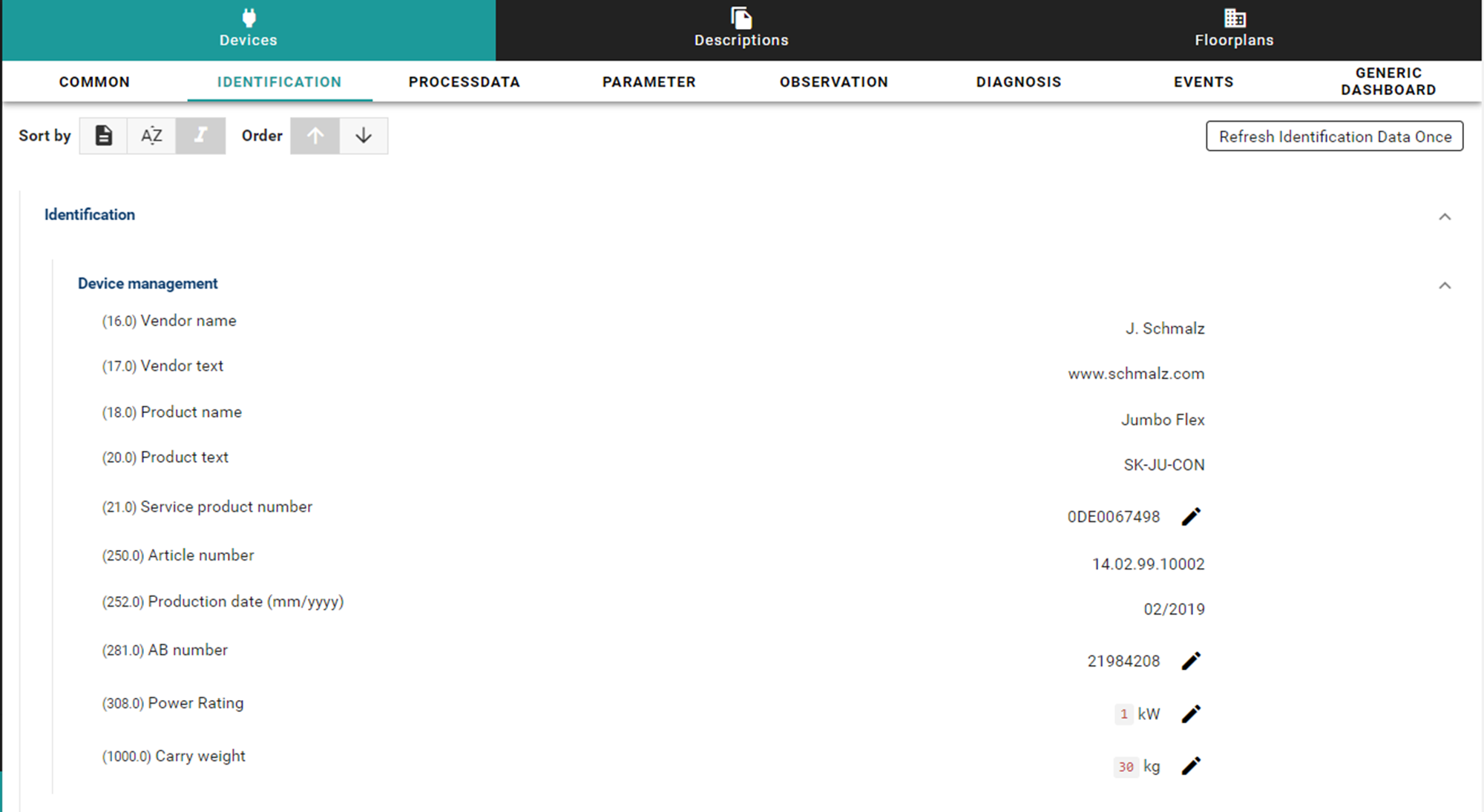

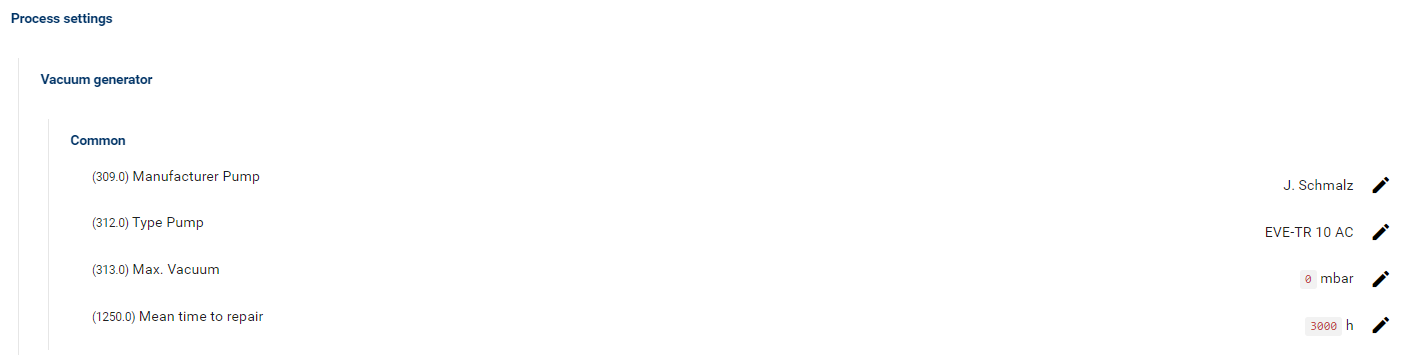

Device Management / Parameter → Base Settings of the vacuum generator

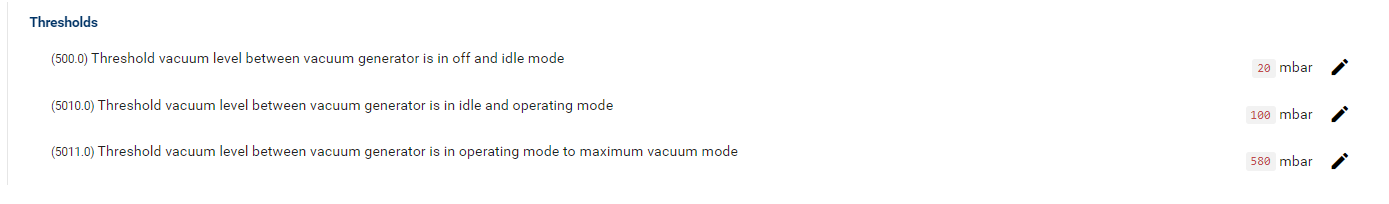

Device Management / Parameter → Settings for Thresholds of vacuum generator

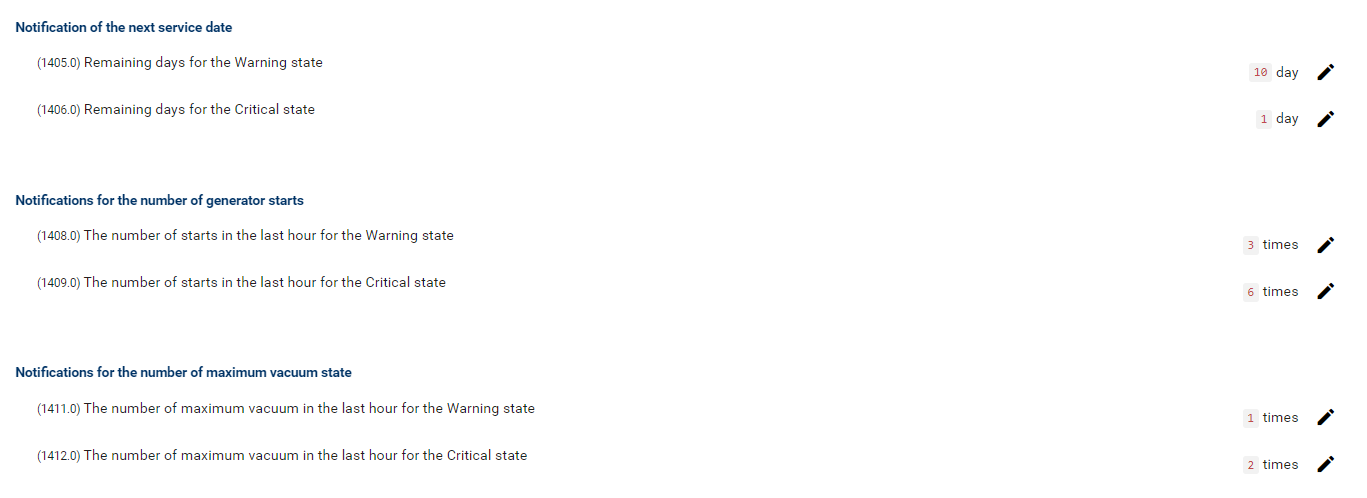

Device Management / Parameter → Settings for events of vacuum generator

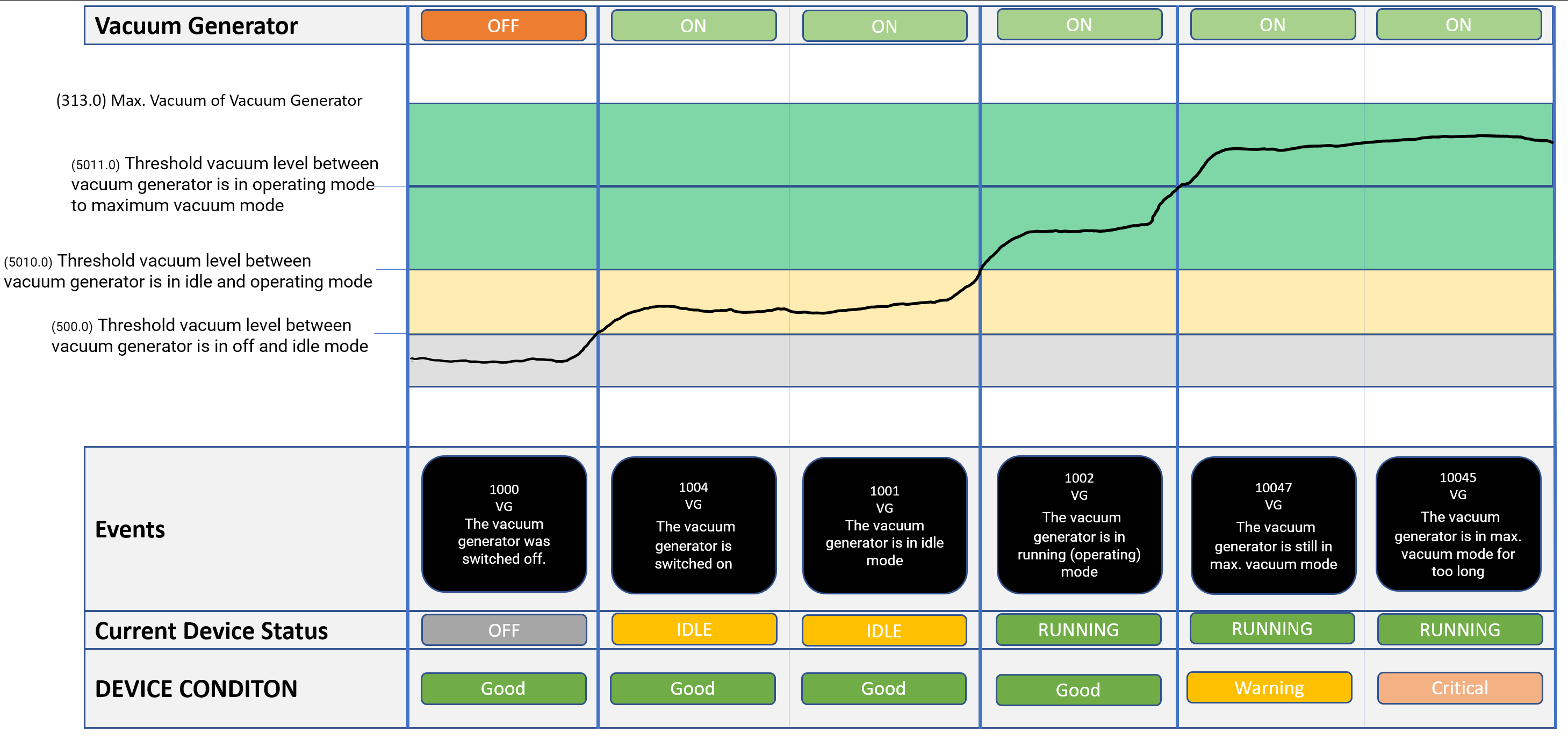

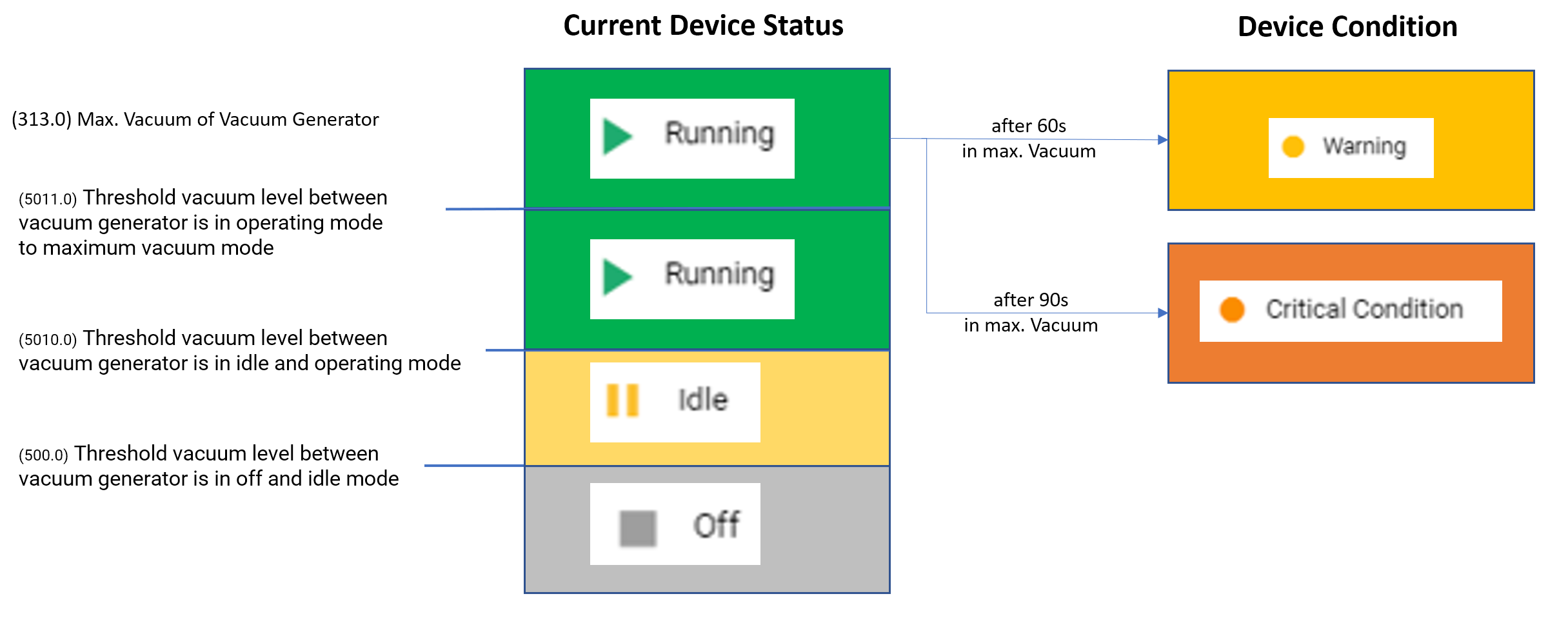

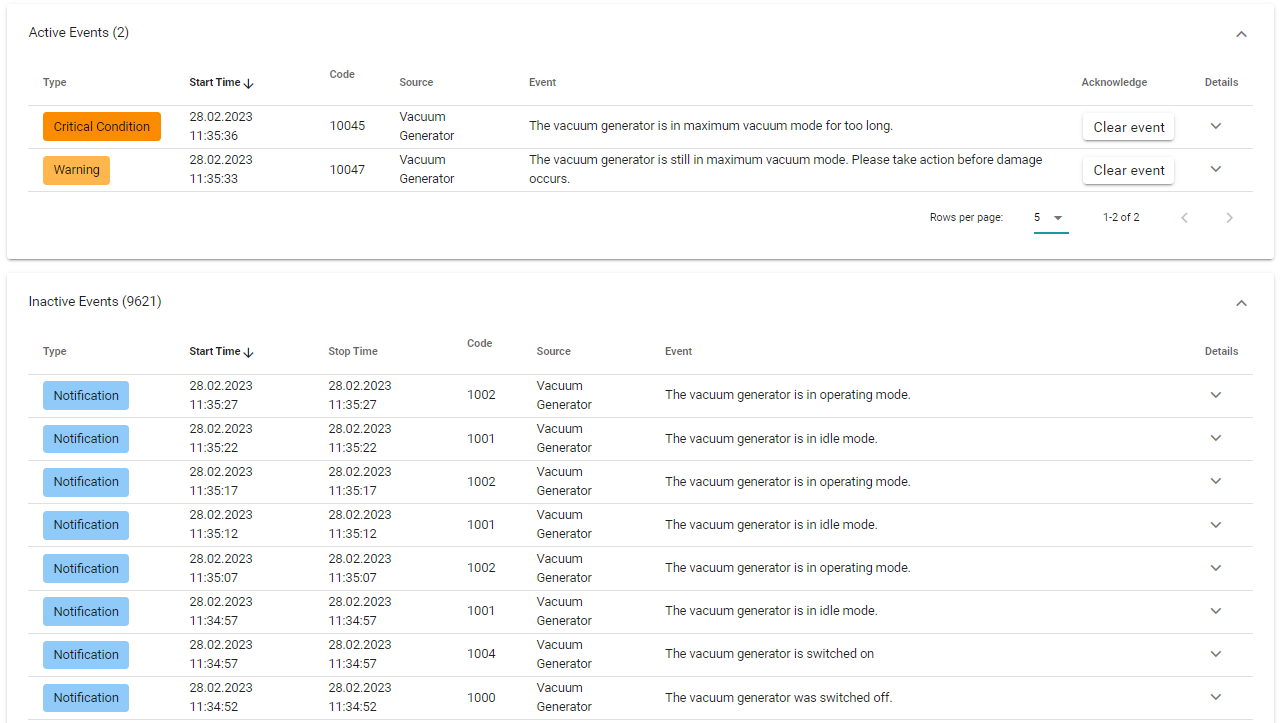

Based upon these settings the Vacuum Generator will send Events to the messaging queue.



VACUUM LIFTER

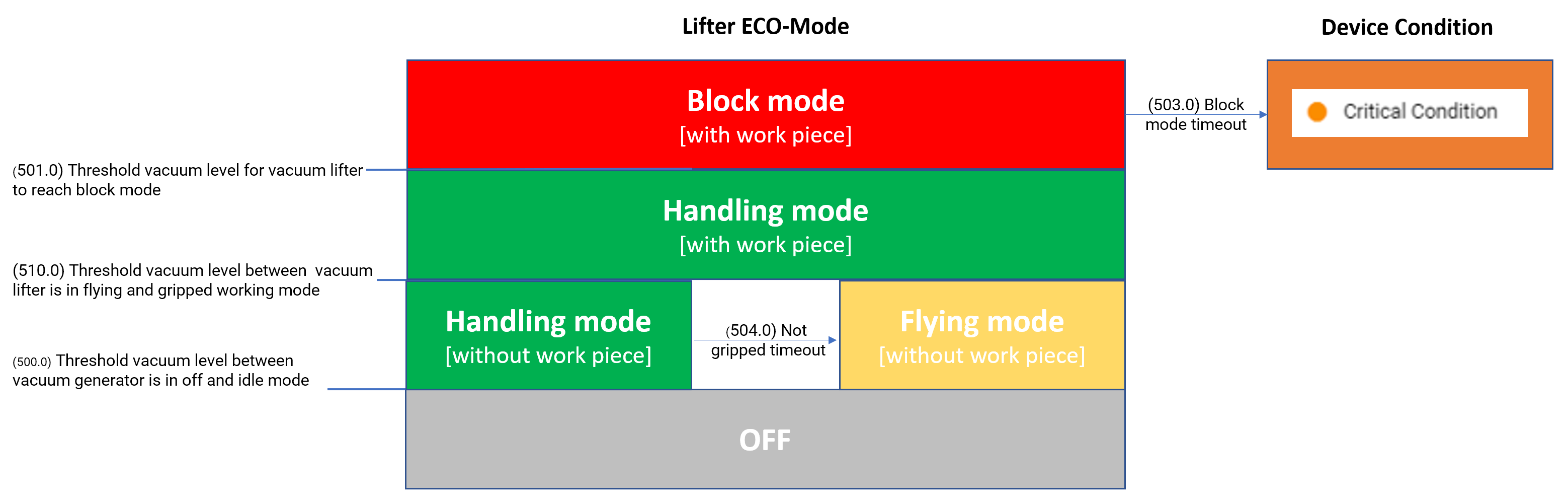

The vacuum lifter will have the following operating modes:

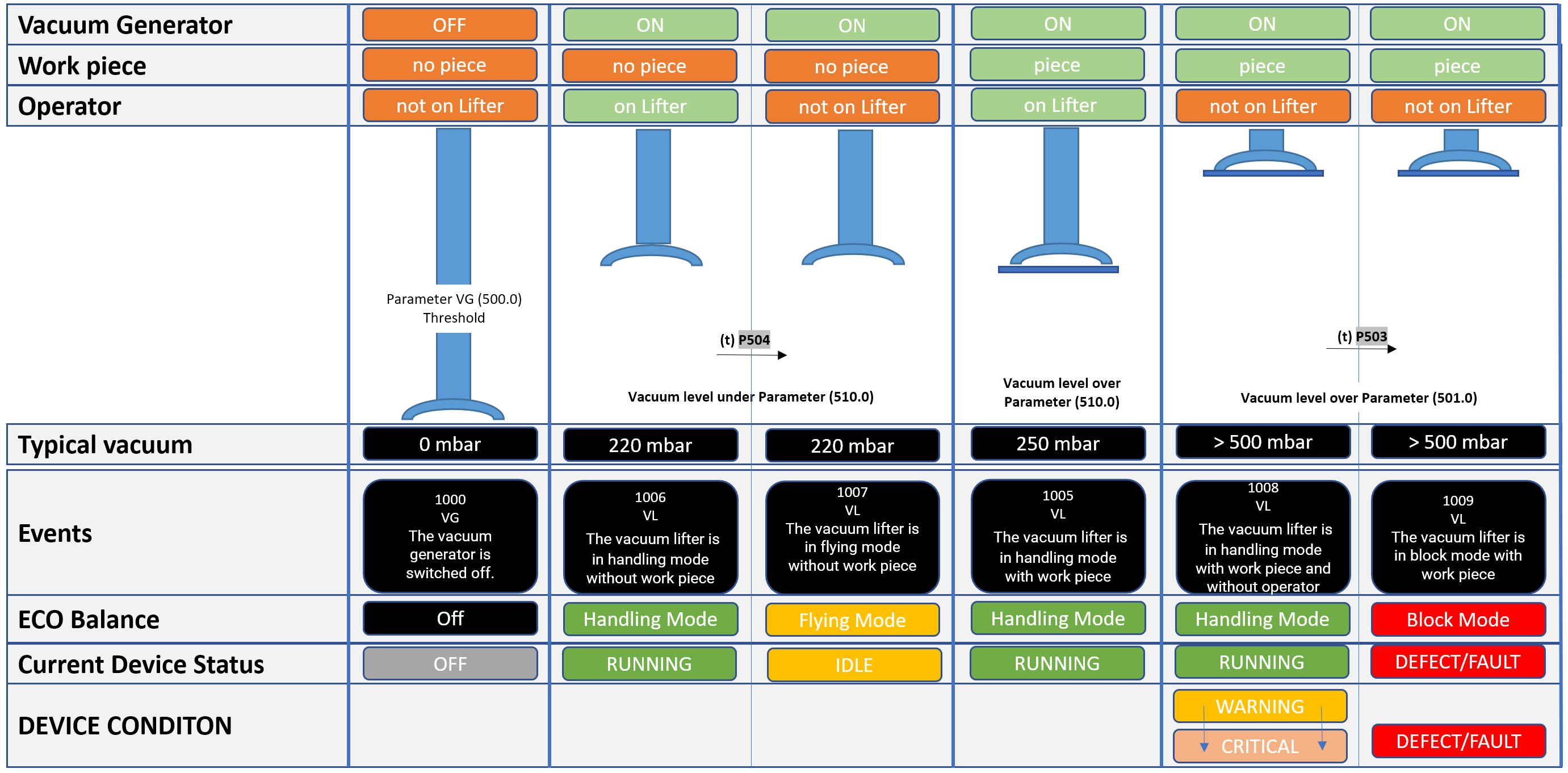

  • Handling mode → vacuum lifter is in normal operating and operator is picking and dropping parts

  • Flying mode → vacuum lifter is released by operator without part on gripper

  • Block mode → vacuum lifter is released by operator with part on gripper

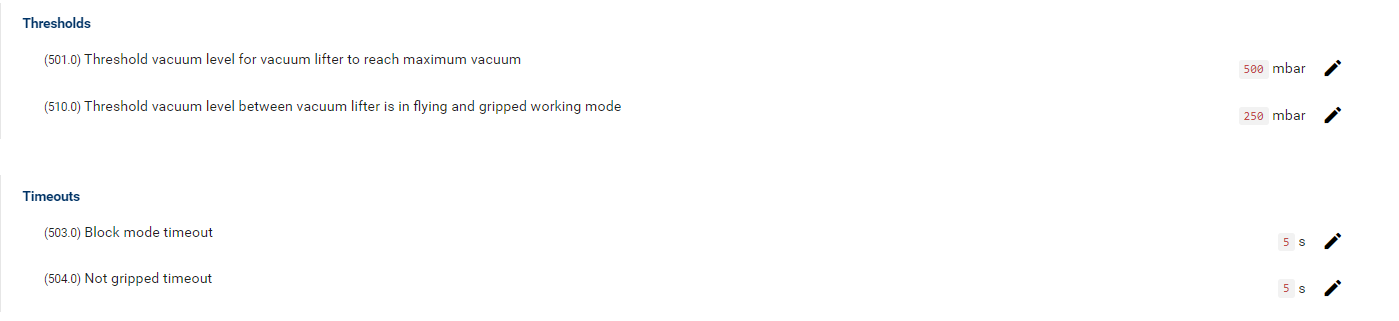

Device Management / Parameter → Base Settings of the vacuum lifter

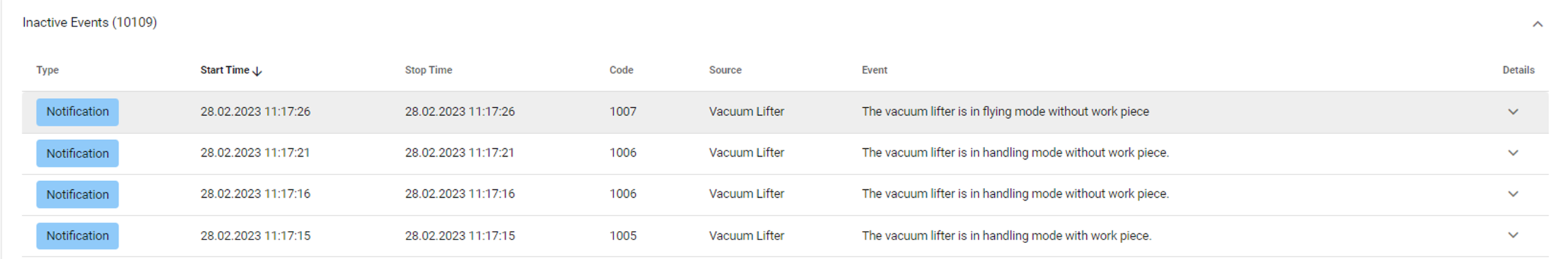

Based upon these settings, the Vacuum Lifter will send Events to the messaging queue.



VACUUM FILTER

Coming Soon in 2025

We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.


CRANE SYSTEM

Coming Soon in 2025

We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.
