PickBeam - Introduction

Pickbeam device_straight.png


Introduction

Intelligent lighting and sensor solution for Industry 4.0

The PickBeam is a universal IIoT actuator and sensor for industrial applications. It combines precise environmental data acquisition with dynamic RGB/RGBW LED control. Up to 5 RGB lines of 5 metres each (optionally up to 10 m with additional power supply) can be controlled individually – ideal for pick-to-light, machine visualisation and smart factory workflows. Integrated communication via Ethernet, Wi-Fi, MQTT and HTTP-REST enables open system integration and long-term storage of sensor data.

Basic information

SKU

30-04-0660

Product name

PickBeam

Device ID

100660

Manufacturer

GPS GmbH

Product type

Industrial IIoT devices (Industrial Internet of Things)

Scope of application

Monitoring and control in industrial environments

Version

1.0 (Status: September 2025)


Technical highlights

RGB/RGBW LED control

Multicoloured effects, sequences, status indicators

Sensory

---

Communication

Ethernet, Wi-Fi, MQTT, HTTP-REST

Assembly

GPS GmbH

Power supply

5 V DC / 15 A, optional power supply for long LED strips


Key features

  1. Intelligent operation

  • Continuous monitoring of environmental data with secure MQTT transmission.

  • LED light lines for clear visual signalling (e.g. red for alarms, green for confirmation).

  • Integrated buttons for triggering events such as confirmations or actions.

  1. Intuitive web interface

  • Easy access via your browser: http://[device IP].

  • Clear dashboards for displaying sensor values in real time.

  • Direct LED line control and access to the system log.

  1. Integrated troubleshooting support

  • No Wi-Fi connection → Quick reconfiguration via Bluetooth.

  • LED lines inactive → Check or replace the power supply.

  • Incorrect sensor data → Simply calibrate the device via the app.

  • System-LED Red → Restart the device or contact support.

  1. Maximise your productivity:

  • Save time and resources and significantly reduce the error rate.

  • Increase the efficiency of your warehouse.

  • Improve customer satisfaction.

Typical areas of application

Pick-by-Light & Put-to-Light:

Colour-coded picking, error prevention

Maschinenvisualisierung

Status displays, clock control, Andon systems

Smart Factory & Lean Production

Process management, setup guidance, rework routing

Logistic & E-Commerce

Batch picking, returns inspection, packaging timing

Safety & Ergonomics

Zone warning, shift change signals, PPE notices

Sustainability

Air quality monitoring, energy optimisation, predictive maintenance


Integration & Connectivity

  • SICON.OS Edge middleware for device management, security, OTA updates, data quality and interoperability

  • Control of RGB lines via MQTT and REST API for individual control

  • SICON.ToolBox app for configuration and monitoring


Images

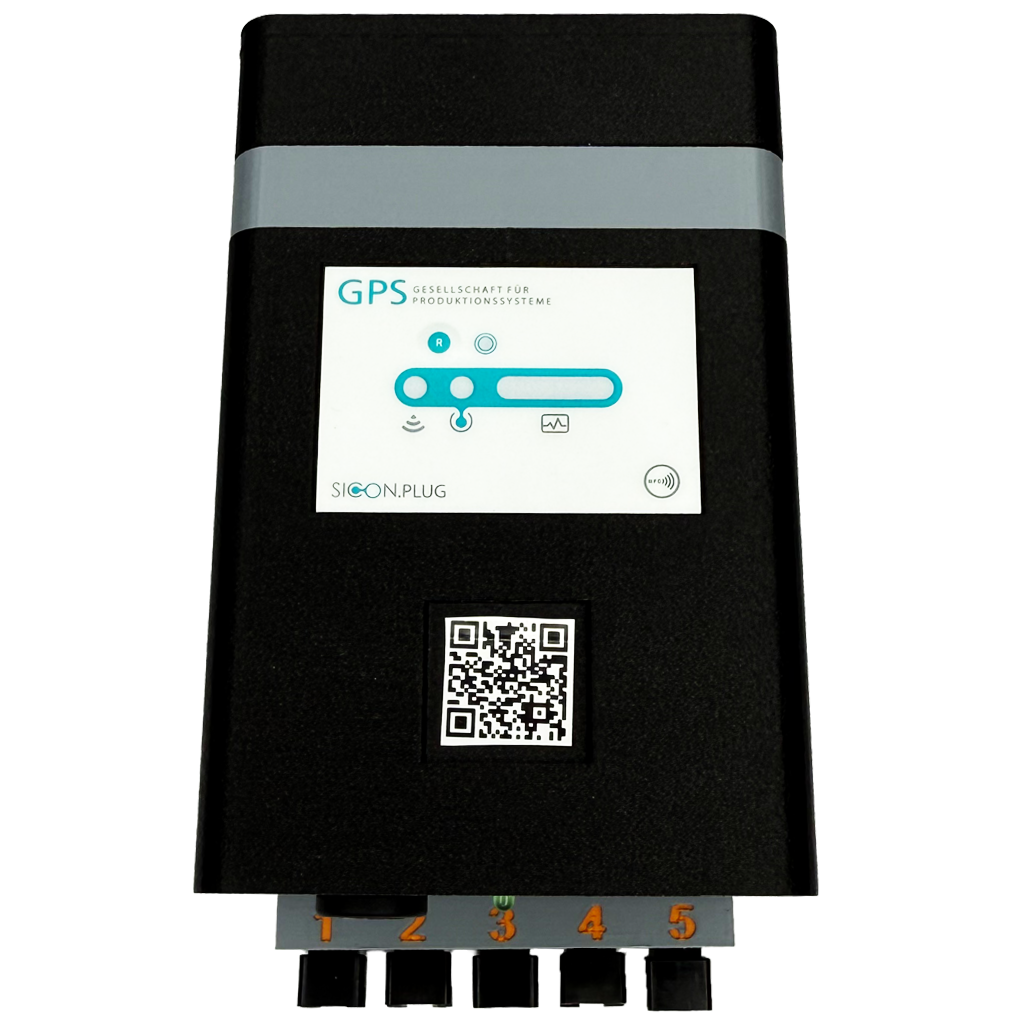

Pickbeam device_straight.png

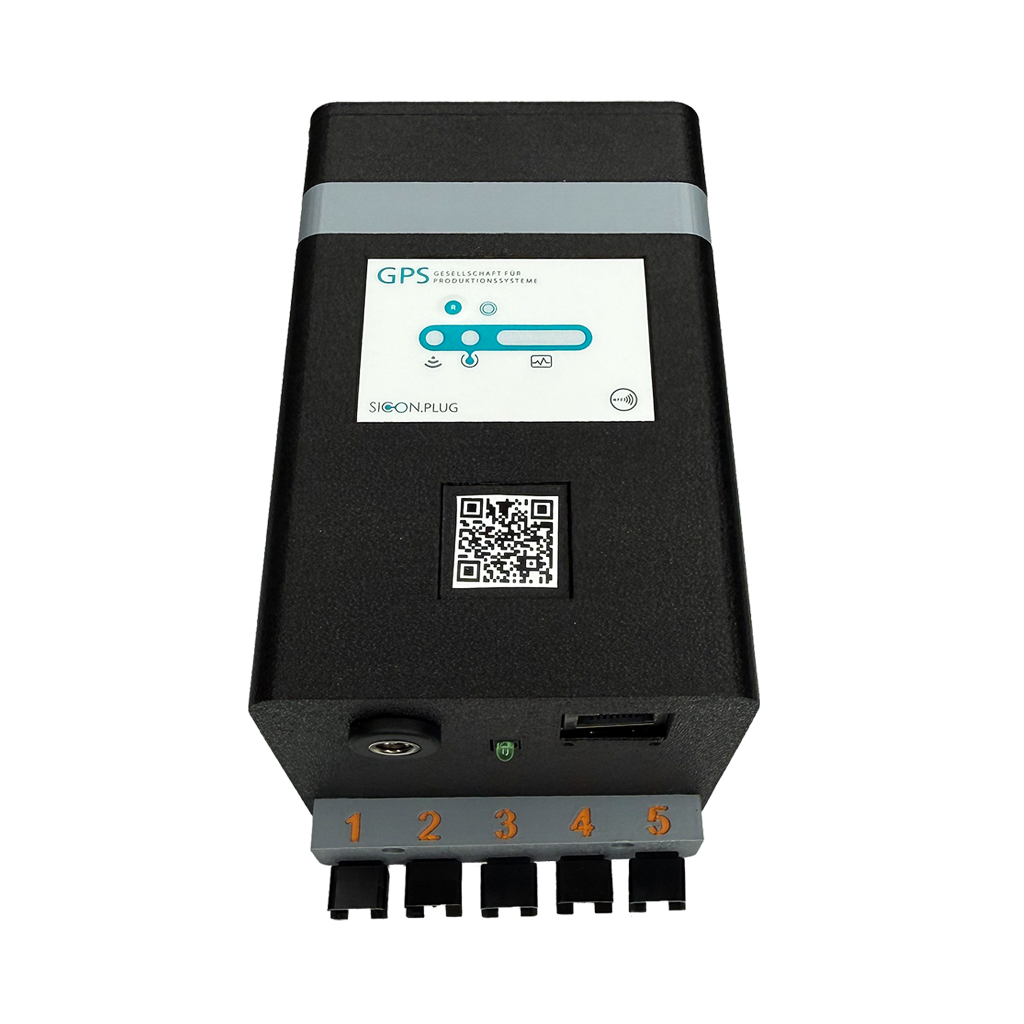

Pickbeam device.png


Scope of delivery

30-04-0660

PickBeam


Assembly materials


Quick guide


Download PickBeam files

3D Image

SICON.Pickbeam.fbx

Instructions for use

Operating instructions pdf

Technical document

(de) PickBeam - Technische Daten-30-04-0660.pdf

PickBeam Brochure

---

SICON.Toolbox App

Setup via SICON.Toolbox app
