SICON.PULSE BASIC - Adaption to Vacuum Generator

GENERAL




VACUUM GENERATOR

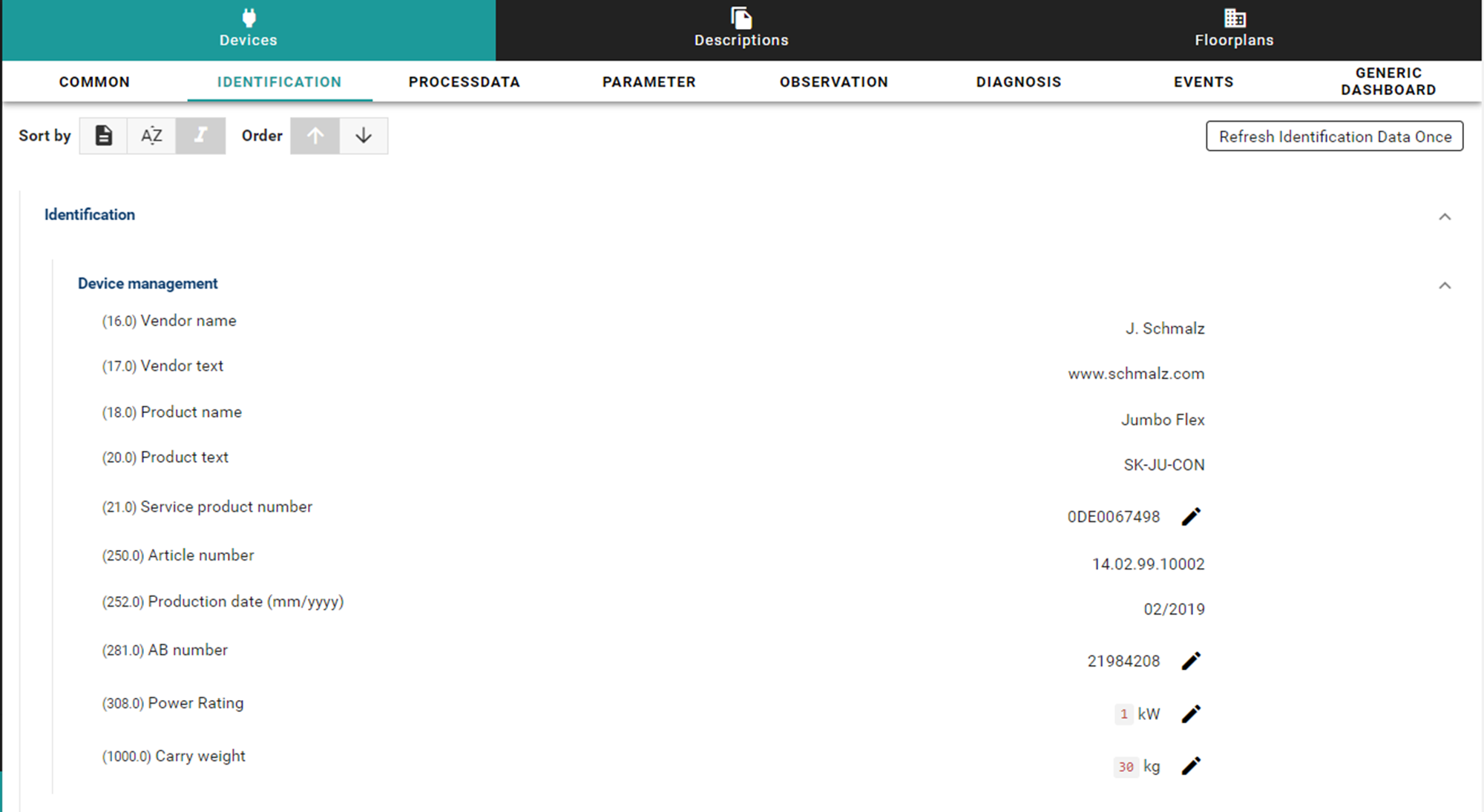

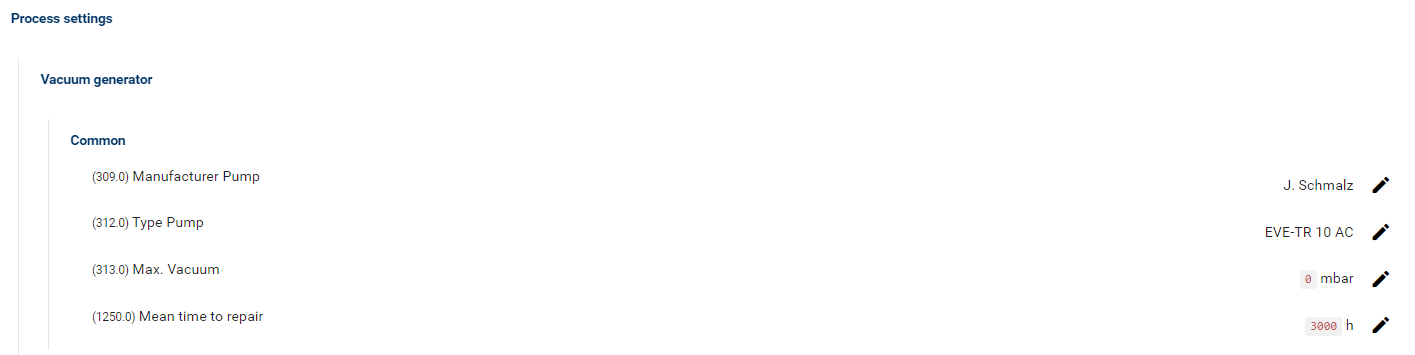

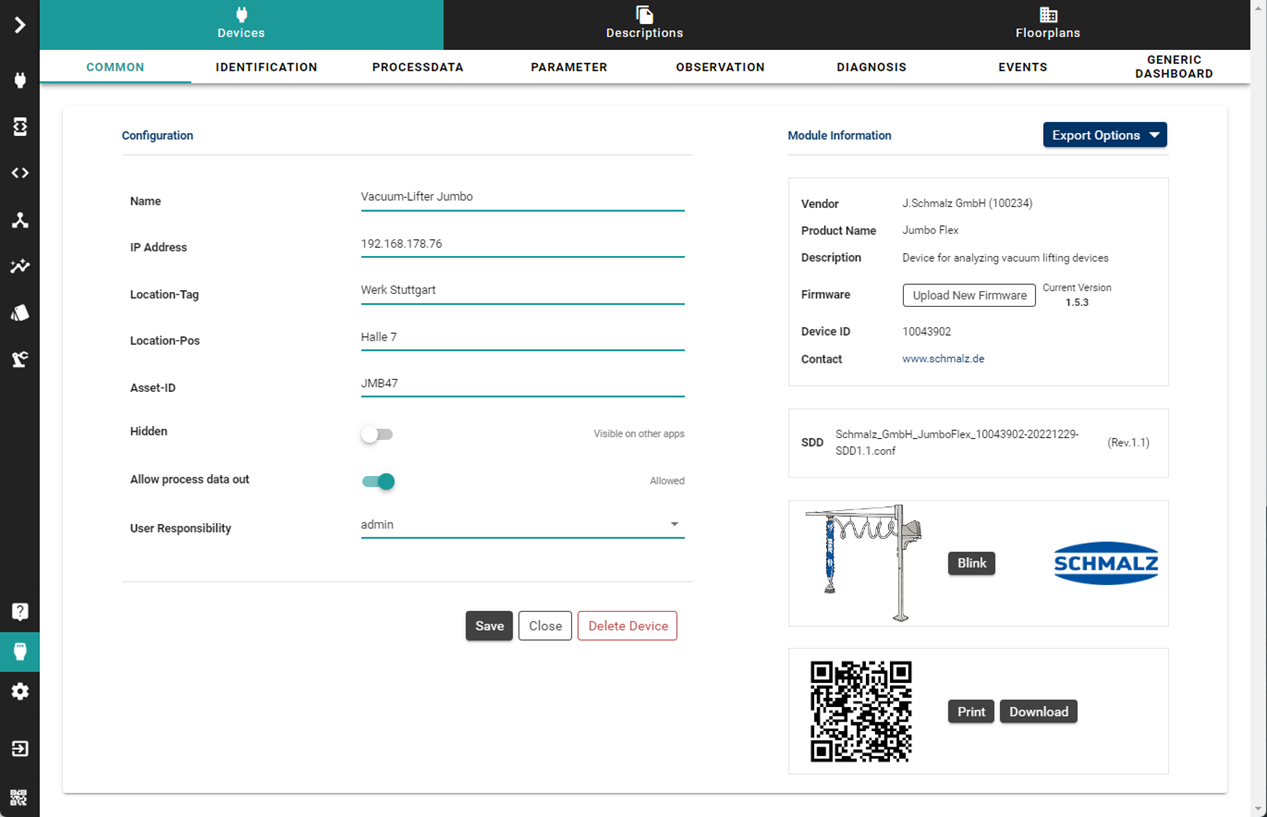

1. Device Management / Parameter → Base Settings of the vacuum generator

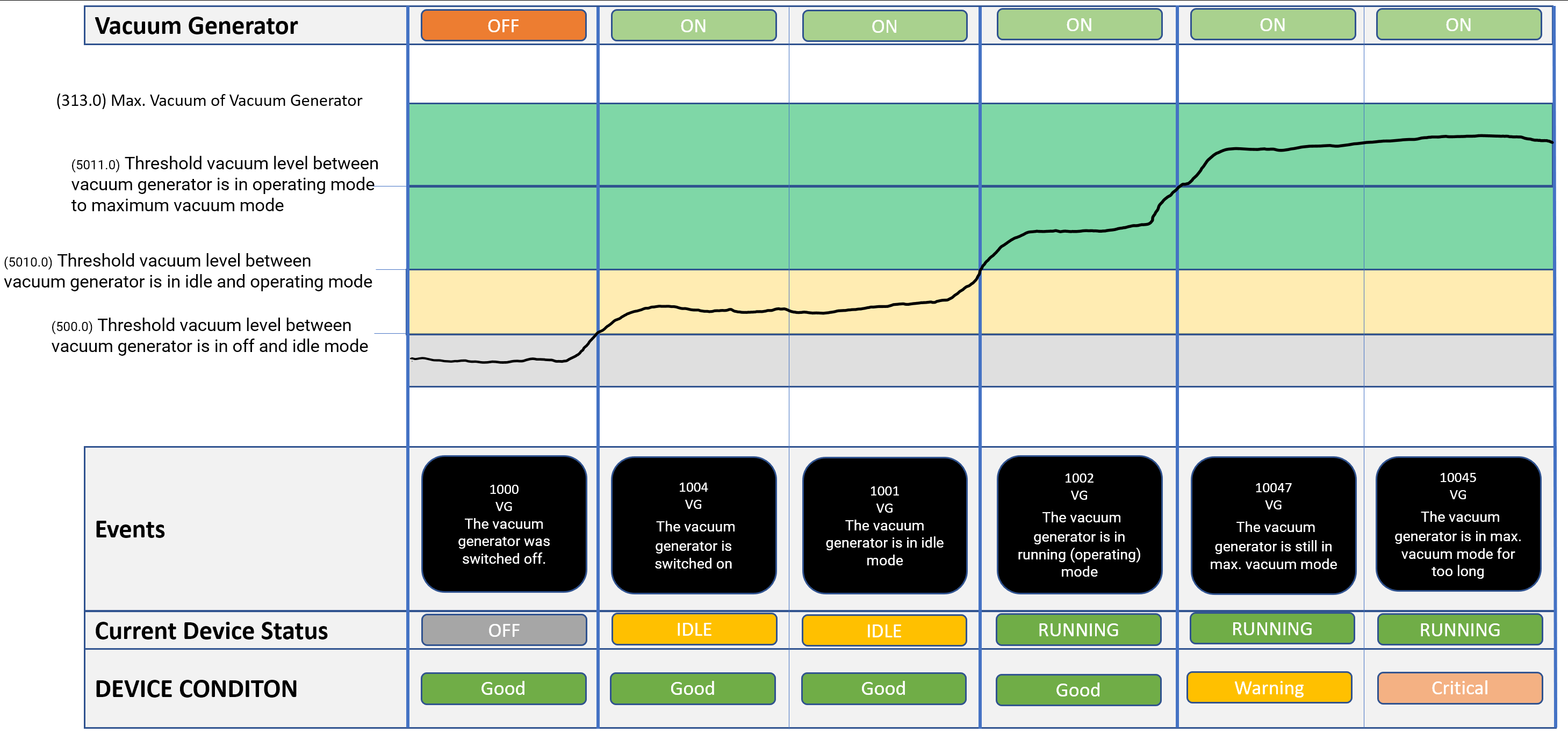

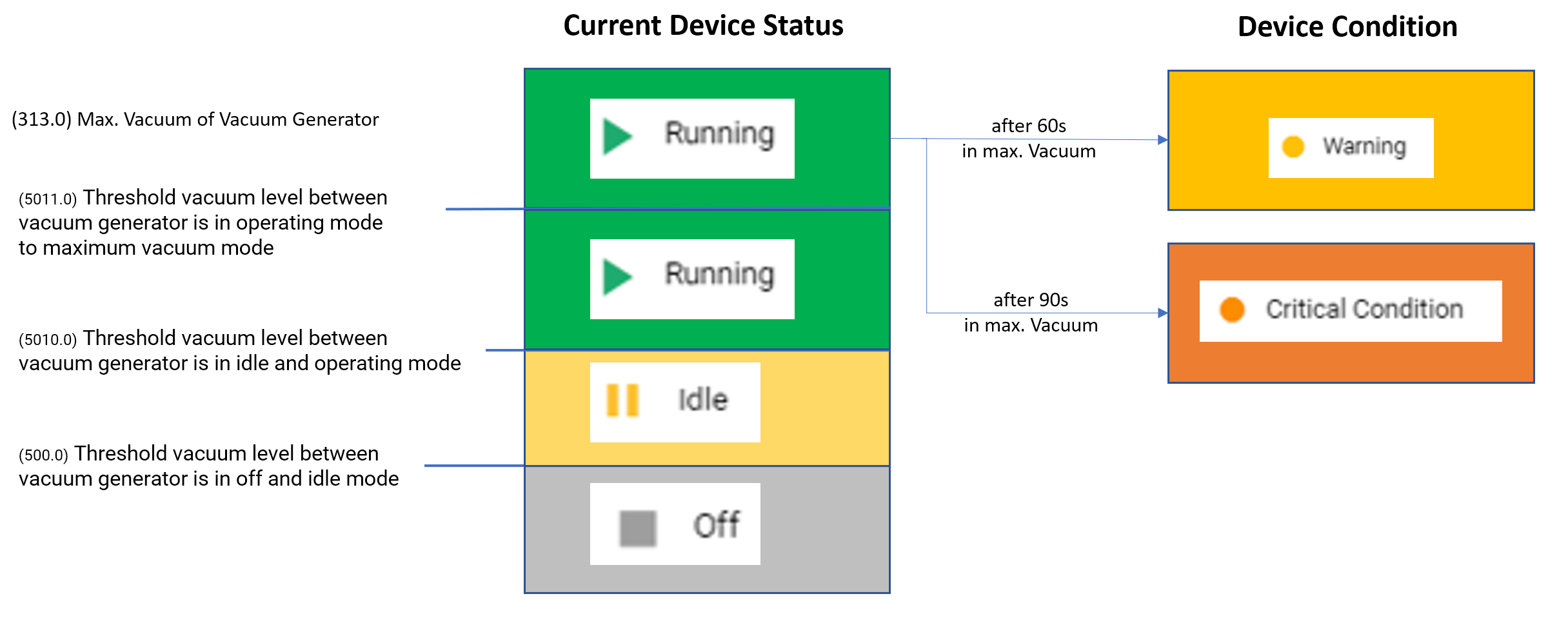

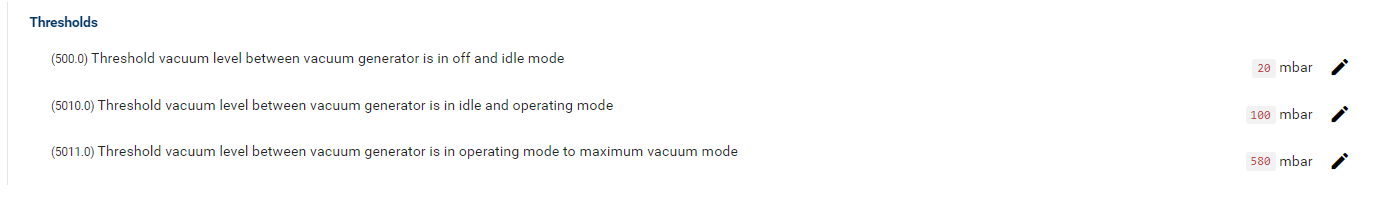

2. Device Management / Parameter → Settings for Thresholds of vacuum generator

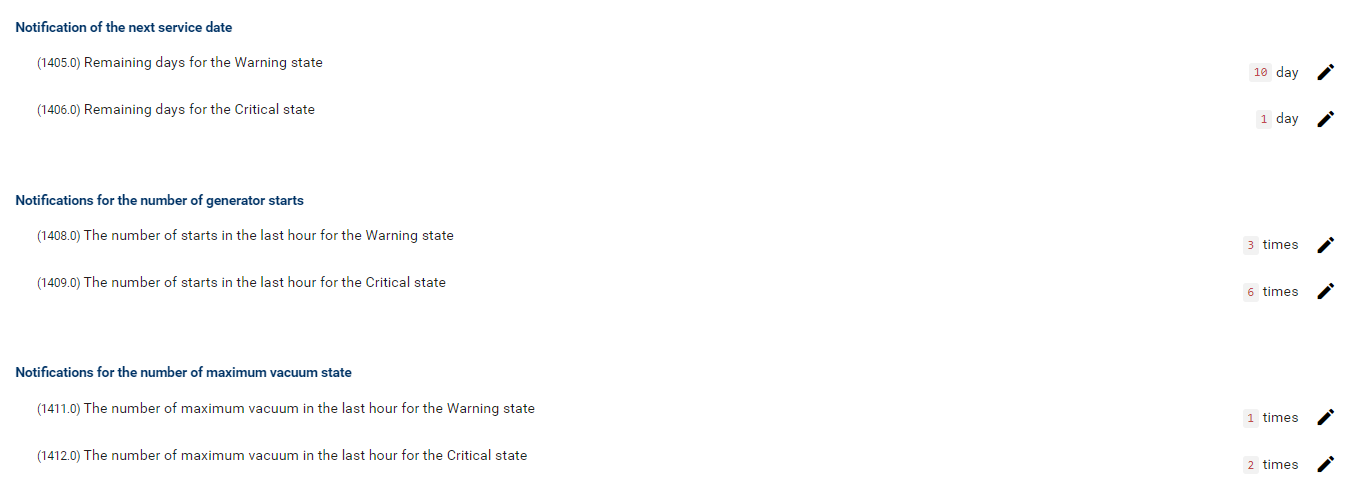

Device Management / Parameter → Settings for events of vacuum generator

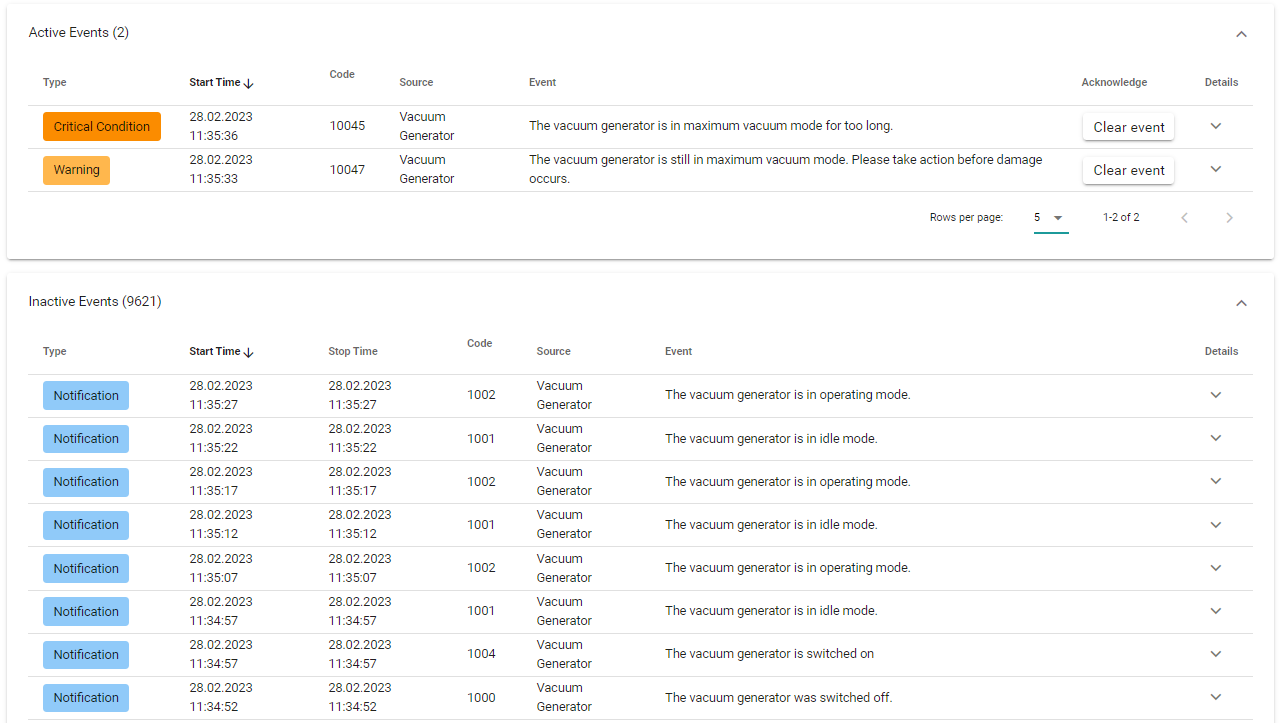

Based upon these settings, the Vacuum Generator will send Events to the messaging queue.



VACUUM FILTER

Coming Soon in 2025 🚀

We're currently working on the Vacuum Filter. If you have any questions or need assistance, please reach out to us at info@gps-stuttgart.de.
