Firewall Settings
SICON.OS can be operated in isolated or managed mode.
In “Isolated Mode” no external communication is established.

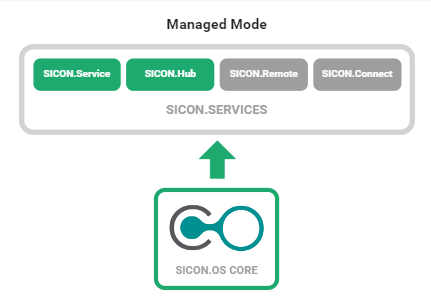

In “Managed Mode”, SICON.OS establishes an outgoing connection to the SICON.SERVICES server. For this purpose, the following ports and addresses must be released in the firewall
![](../../__attachments/1775730790/image-20230412-180414.png?inst-v=50b55aea-3246-4130-8670-f10d03ac4856)
Endpoint List
Source | EndPoint | Protocol/Port | Description |
---|---|---|---|
SICON.OS | *.service.sicon.eco (IP: 37.120.171.71) | TCP/443 UDP/443 | Access to the functions of SICON.Service and SICON.Hub |
SICON.OS | *.service.sicon.eco (IP: 37.120.171.71) | UDP/1194 | Access to the functions of SICON.Remote |
