Nr. |
Text |
Image |
|---|---|---|
SICON.OS Core
|
||
|

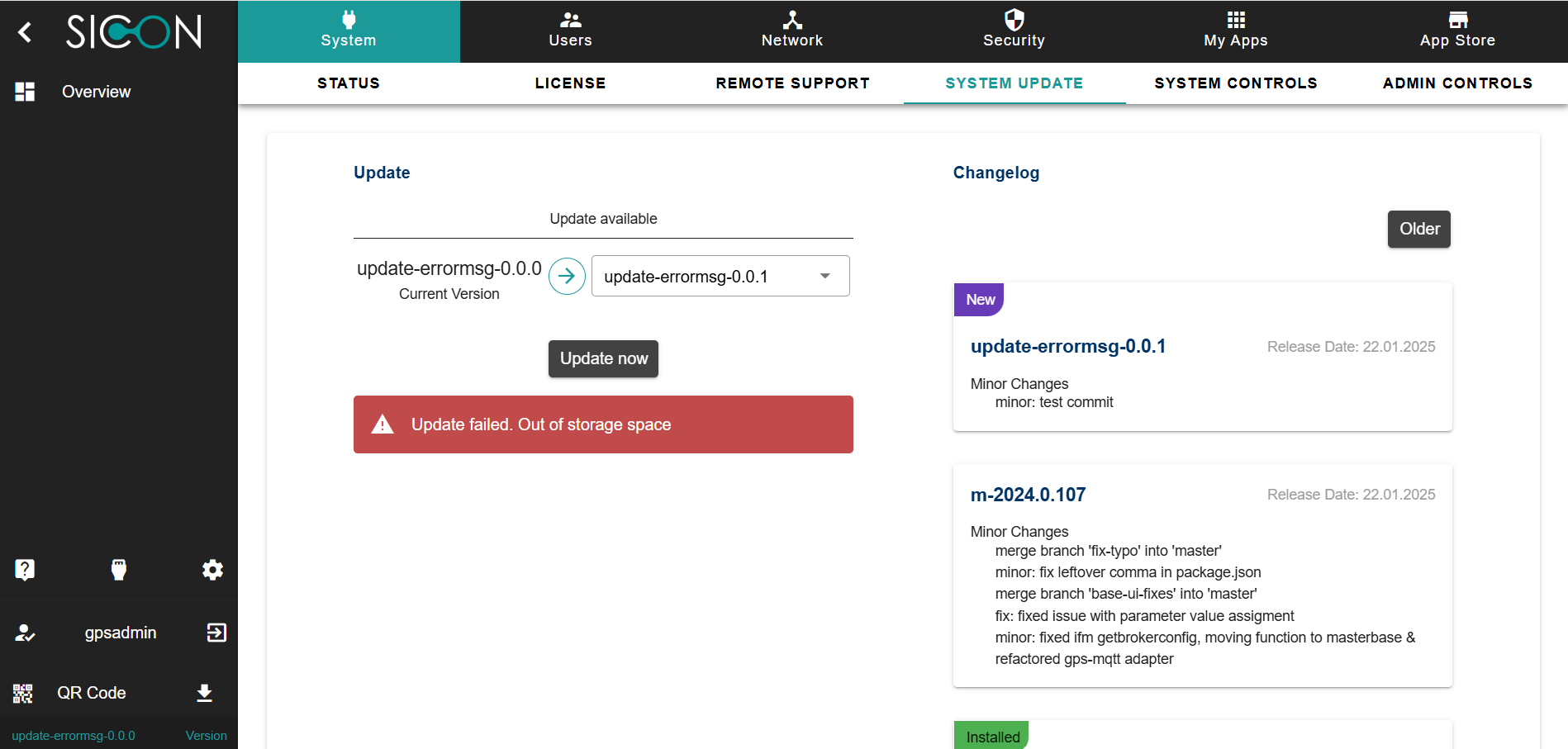

SICON.OS update failure due to low storage |
During a SICON.OS update if the device storage is running out of space then the update fails and the user is displayed with an error message. User can try making some space by deleting few installed apps and retry the update. |
|
|
Adaption of new SICON.OS MQTT System |
The new eMQTT and sMQTT have been integrated into the basic system. With this change, all SICON.plugs must be updated to a new firmware to provide the new function |
|
|
Start-up time improved |
Various measures have improved the boot time of the SICON.OS. |
|
|
MultiFirmware-Update integriert |
The firmware of connected devices can now also update several subordinate microcontrollers |
|
System Management
|
||
|

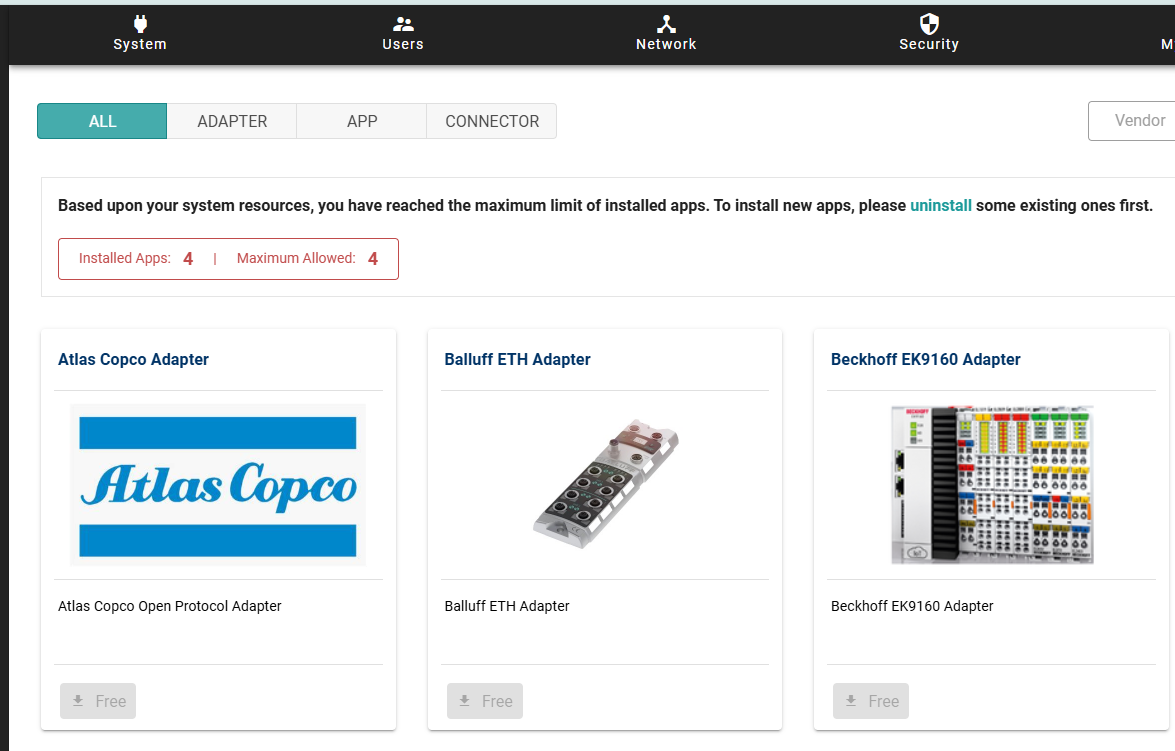

Number of max. apps limited |
The maximum number of apps, adapters and connectors that can be installed depends on the hardware on which SICON.OS is running |
|
|
max Size of disk space limitation |
During a SICON.OS update if the device storage is running out of space then the update fails and the user is displayed with an error message. User can try making some space by deleting few installed apps and retry the update. |
|
|

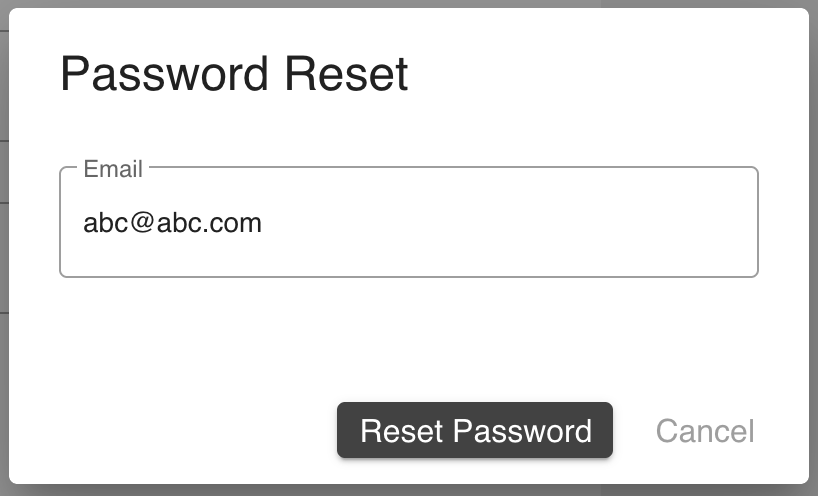

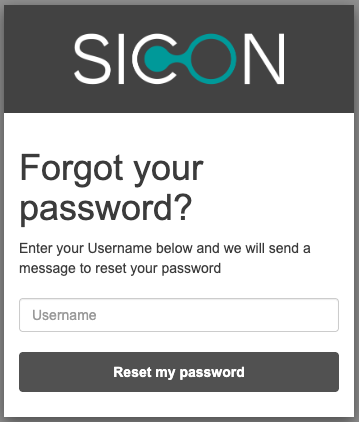

Password Reset Options Based on Hosting Environment |
SICON.OS 2024.0.x introduces two distinct methods for resetting user passwords, based on your hosting environment: one for Cloud deployments and one for On-Premise installations. |
|
Device Management
|
||
|

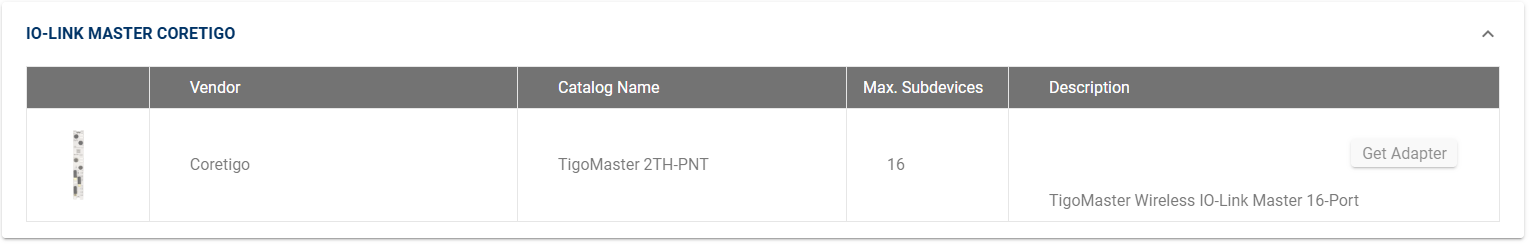

new Adapter for CoreTigo |
Integration eines neuen Master für CoreTigo IO-Link wireless, typ TigoMaster 2TH-PNT TigoMaster 2TH (IO-Link Wireless Zweispur-Master) - CoreTigo |
|
|

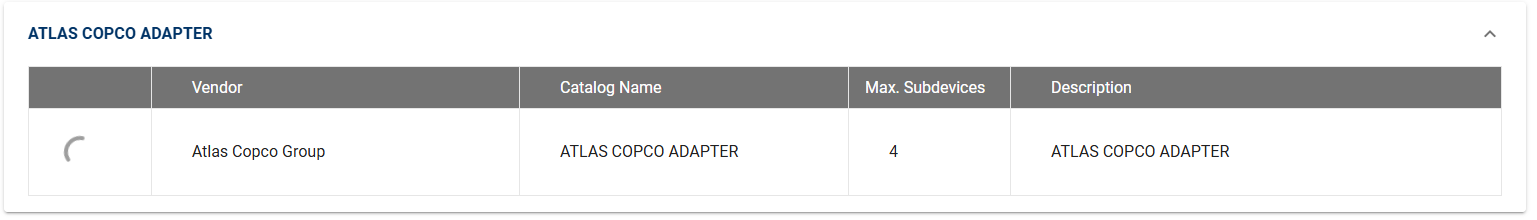

new Adapter for Atlas Copco |
new Adapter for Atlas Copco Screwdriver with LAn/Wlan Interface |
|
|

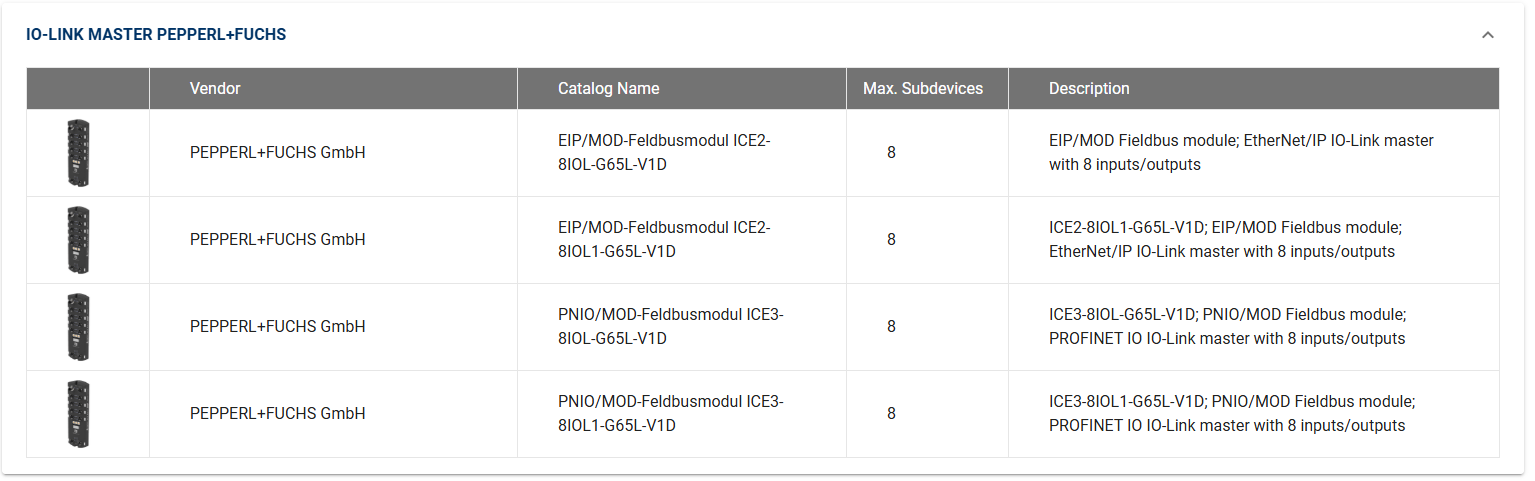

new Adapter for Pepperl & Fuchs |
new Adapter for Pepperl & Fuchs IO-Link Master ICE3-8IOL1-G65L-V1D with 4 Class B Ports on IO-Link. Please turn on the OPC UA Interface when connecting to SICON.OS
|
|
|

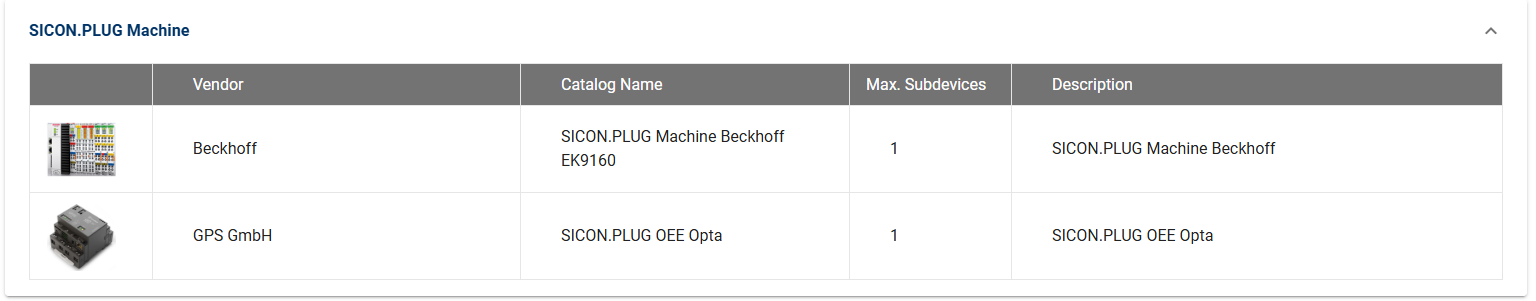

new Adapter for Machine Interfaces |
GPS Gmbh provides the new SICON.PLUG MachineOEE devices for simple machine connection. These 2 data loggers collect data from machines to provide an analysis of the OEE (availability, performance and quality).
|
|
|

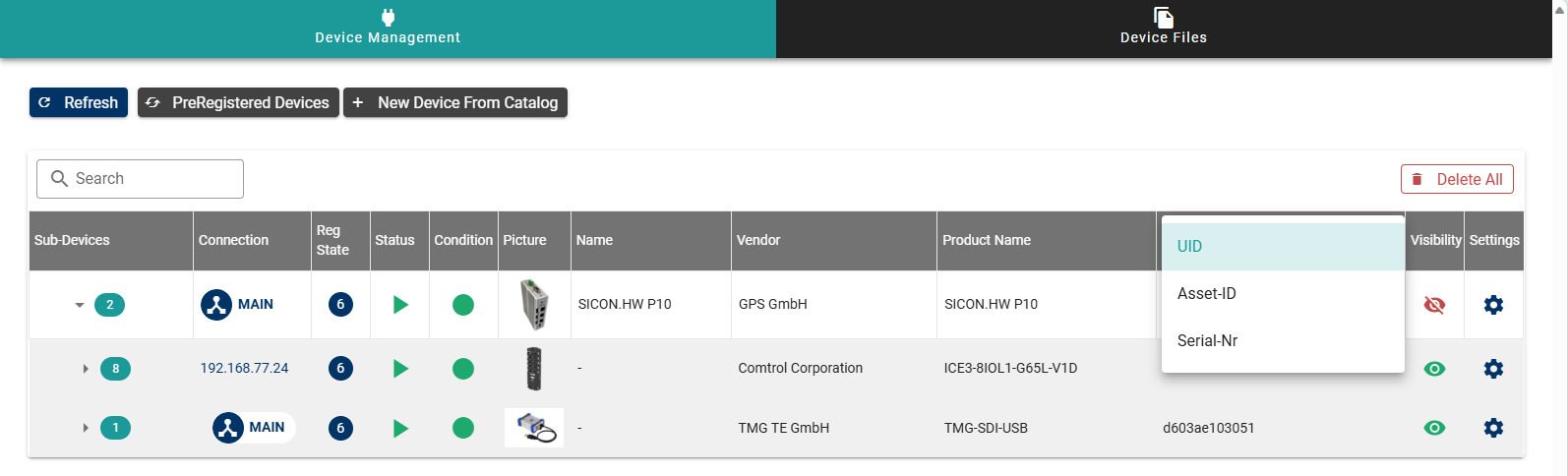

Entfernen von ShortCodes |
Devices and assets are organized via UID. Access via ShortCode has been removed. |
|
|

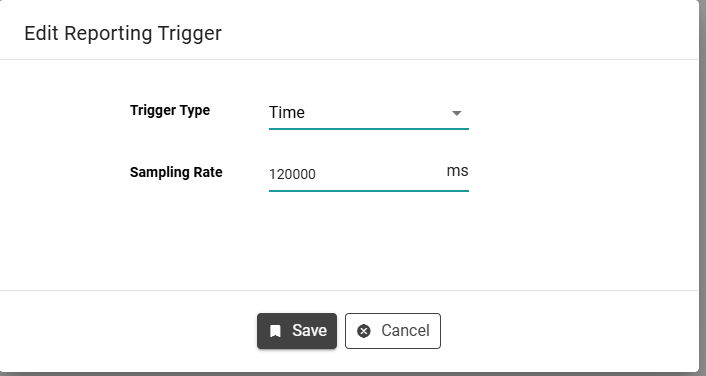

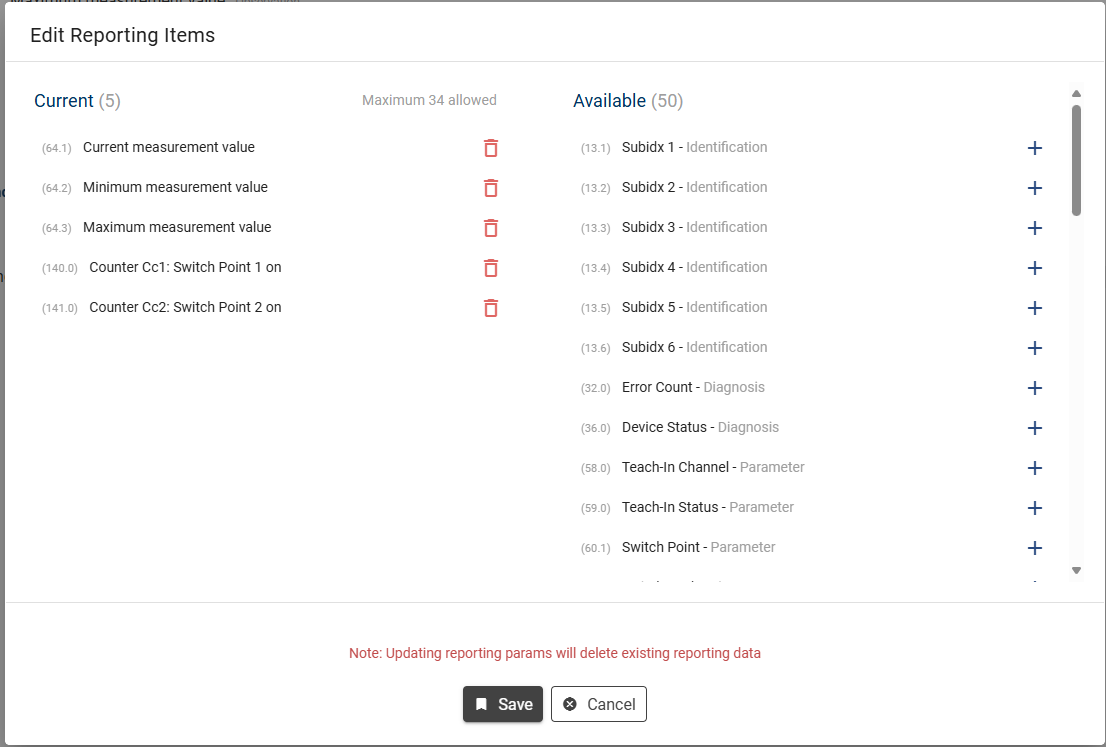

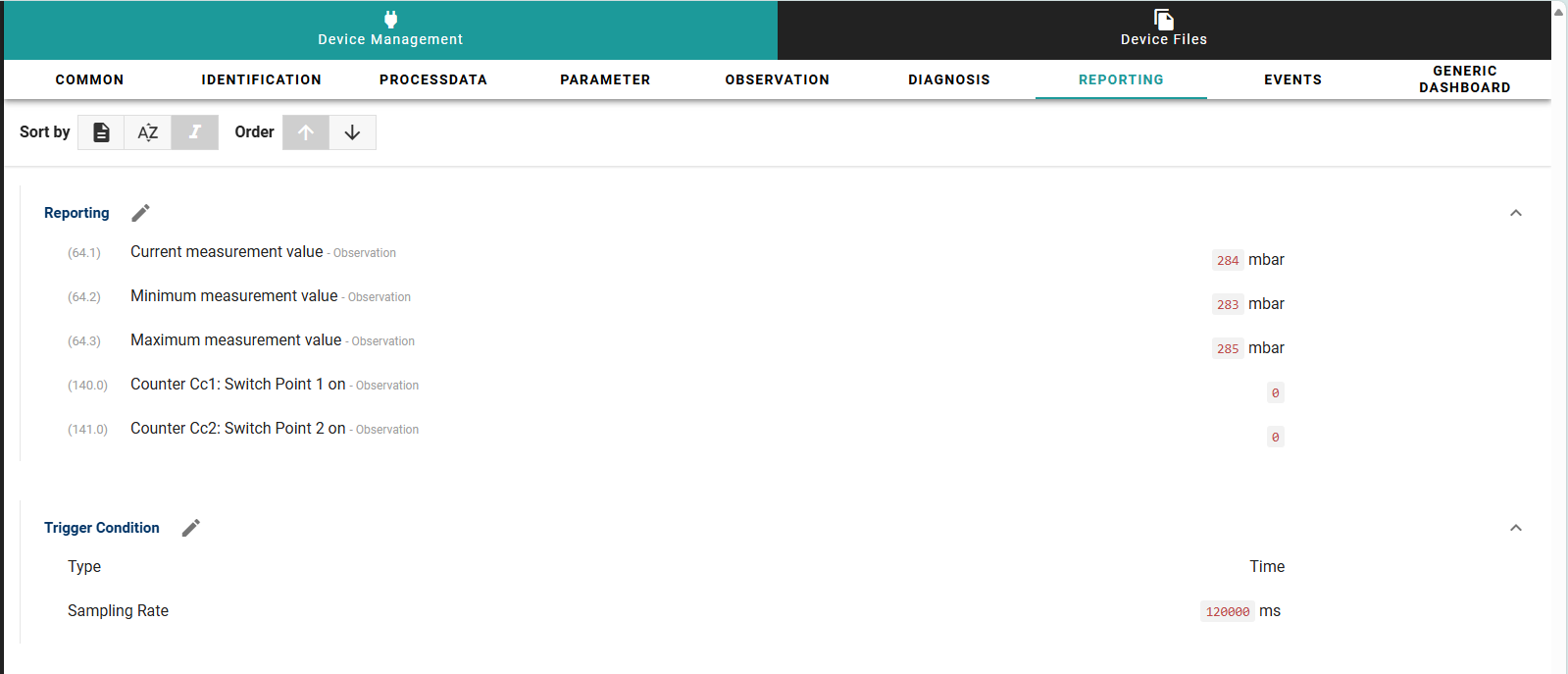

Configurable reporting variables |
In the DeviceManagement of each device, a maximum of 34 variables can be freely selected from the address space of the device. These are then stored in a definable event or time-controlled in the reporting database. The reporting database is available via the Data Relay or as an export under Common of the respective device. The generic Dashboard Overview also adapts the display in the Reporting area to the new configuration |
|
|

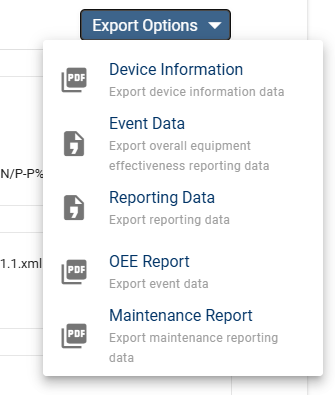

Limitation of the export |
Limitation of exportable data records to 500T. The number of data records is limited so that the downloadable csv files are not too large |
|
|

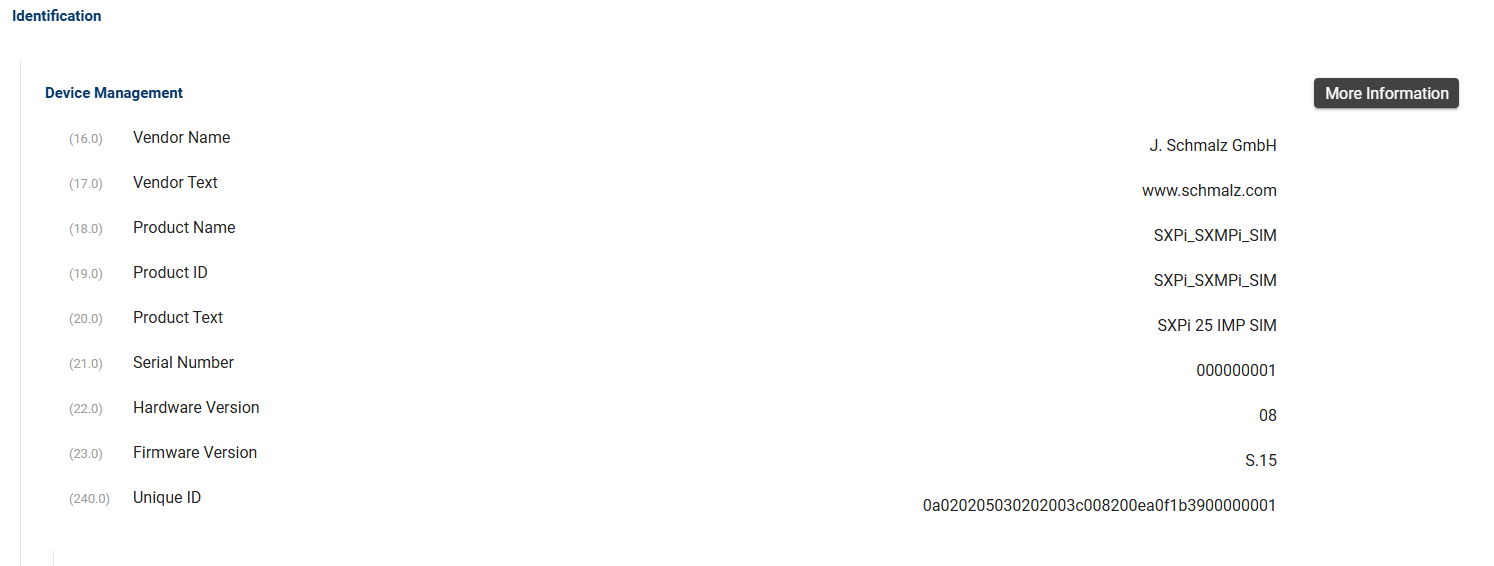

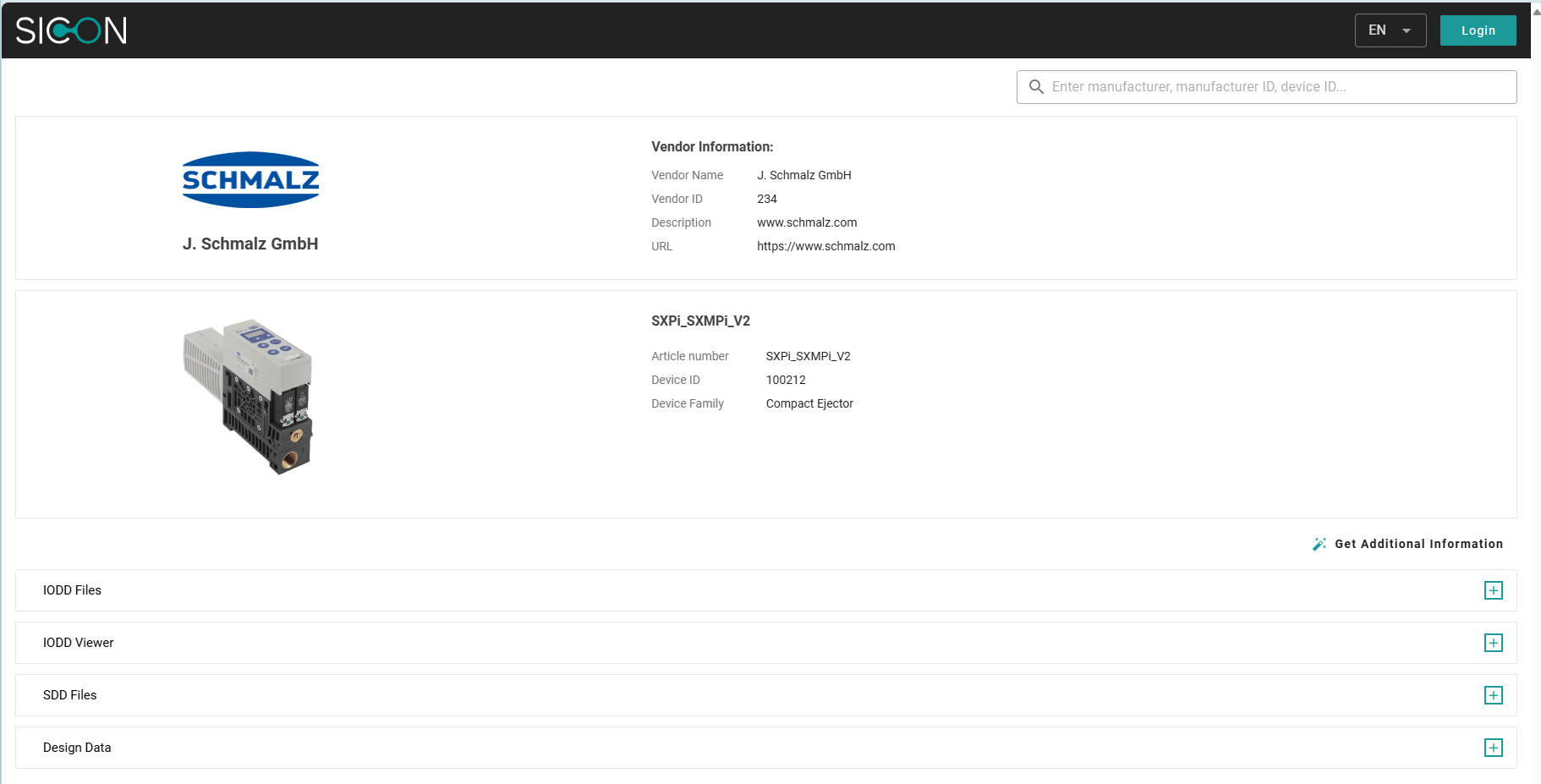

Connecting the devices to Finder |
By identifying the device, additional information can be displayed via the Digiatle Twin platform SICON.Finder. |
|
SICON.HUB
|
||
|
|
|
|
SICON.ToolBox App
|
||
|
new ToolBoxApp 0.3.9 |
New ToolboxApp with version number 0.3.9 released with adaptations to the new SICON.system and interfaces |
|
|
NEW product: SICON.DOCK |
New product: WLAN Dock for easy integration of WLAN devices in SICON.OS |
|
